Sku: VIGI C350(4MM)
Brand: TP-Link
Category: IP Cameras
Availability: In Stock
Ships in 1-2 days.
Pickup from Seven Hills in 1-2 days.
Shipping Calculator
Find
We Accept
Manufacture: TP-Link | Model: VIGI-C350(4MM)

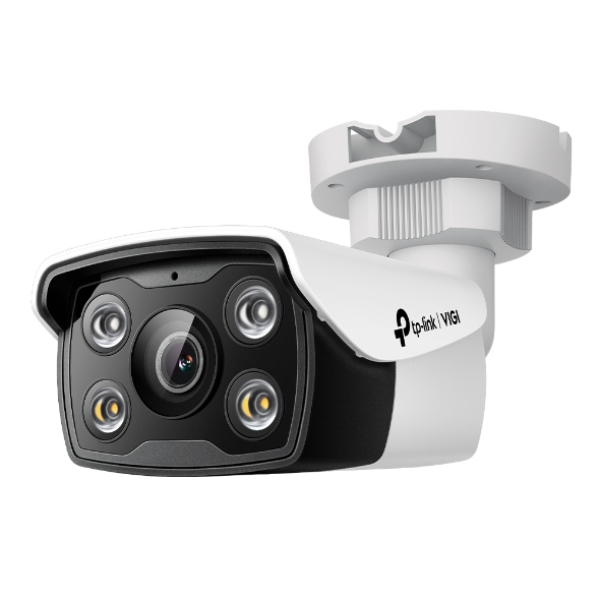

The VIGI Network Camera is a high-performance surveillance solution designed for various environments, providing crystal-clear image quality and advanced security features. Featuring a 1/2.7” Progressive Scan CMOS sensor, this camera offers excellent low-light sensitivity with a minimum illumination of 0.005 Lux and 0 Lux with IR/white light support. It is equipped with a fixed focal lens option in 2.8mm, 4mm, or 6mm, offering different field-of-view (FOV) options to suit various installation scenarios. The camera supports a maximum resolution of 2880x1620 and utilizes advanced compression technologies like H.265+ and H.264+ for efficient video streaming. The camera’s infrared (IR) and white LEDs provide reliable night vision up to 30 meters. With manual angle adjustments and robust smart event detection, including human and vehicle classification, area intrusion, and line-crossing detection, this camera is built for comprehensive monitoring. It is designed for both indoor and outdoor use with an IP67 protection rating, ensuring durability even in harsh weather conditions.
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/white light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| LENS Type | Fixed Focal Lens |
| Focal Length | 2.8 mm / 4 mm / 6 mm |
| Aperture | F1.6 |
| FOV (2.8mm) | Horizontal: 109°, Vertical: 57°, Diagonal: 128° |
| FOV (4mm) | Horizontal: 90°, Vertical: 48°, Diagonal: 107° |
| FOV (6mm) | Horizontal: 56°, Vertical: 30.5°, Diagonal: 66° |
| Lens Mount | M12*P 0.5 |
| DORI Distance (2.8 mm) | Detect: 63 m (206 ft), Observe: 26 m (85 ft), Recognize: 12 m (39 ft), Identify: 6 m (19 ft) |
| DORI Distance (4 mm) | Detect: 80 m (262 ft), Observe: 33 m (109 ft), Recognize: 16 m (52 ft), Identify: 8 m (26 ft) |
| DORI Distance (6 mm) | Detect: 120 m (393 ft), Observe: 50 m (164 ft), Recognize: 24 m (78 ft), Identify: 12 m (39 ft) |
| Angle Adjustment (Manual) | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
| IR LED | Quantity: 2, Range: 30m, Wavelength: 850nm |
| White LED | Quantity: 2, Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| Max. Resolution | 2880 X 1620 |
| Main Stream Frame Rate (50Hz) | 1fps, 5fps, 10fps, 15fps, 20fps, 25fps |
| Main Stream Frame Rate (60Hz) | 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps |
| Main Stream Resolution | 2880x1620, 2688x1520, 2304x1296, 2048x1280, 1920x1080, 1280x720 |
| Sub-Stream Frame Rate (50Hz) | 1fps, 5fps, 10fps, 15fps, 20fps, 25fps |
| Sub-Stream Frame Rate (60Hz) | 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps |
| Sub-Stream Resolution | 704x576, 640x480, 352x288, 320x240 |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ Support | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ Support | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 6 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager |
| Web Browser | Google Chrome® 57 and above, Firefox® 52 and above, Safari® 11 and above, Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection, Abnormal Sound Detection, Scene Change Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception (Illegal Login) |
| Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
| Linkage Method | N/A |
| Output Notification | Message Push |
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. |
| Face Capture | N/A |
| Face Comparison | N/A |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Contents | VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories |
| Material | Plastic |
| Power Supply | 12V DC ± 5%, Max. 9 W, 5.5 mm Coaxial Power Plug PoE: 802.3af/at, class 0, Max. 10.5 W |
| Protection | IP67 |
| Product Dimensions (L x W x H) | 78.5×188.0×71.5 mm (3.09×7.40×2.81 in) |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
