Sku: TL-SG1008P
Brand: TP-Link
Category: Switches
Availability: In Stock
Ships in 1-2 days.
Pickup from Seven Hills in 1-2 days.
Shipping Calculator
Find
We Accept

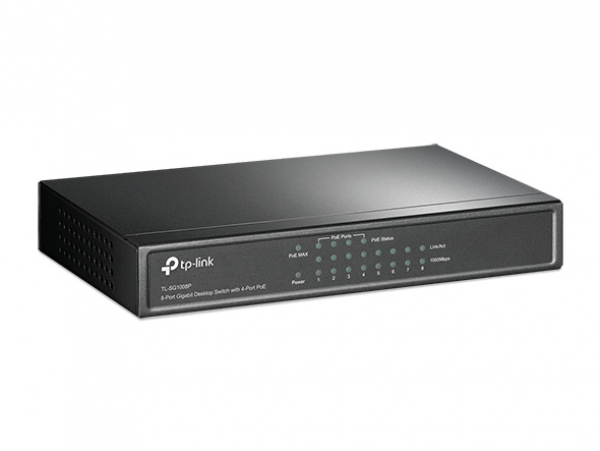

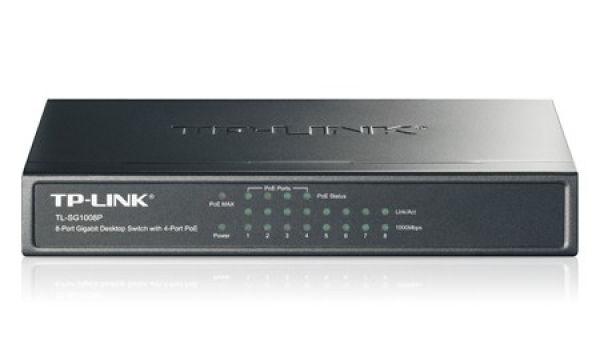

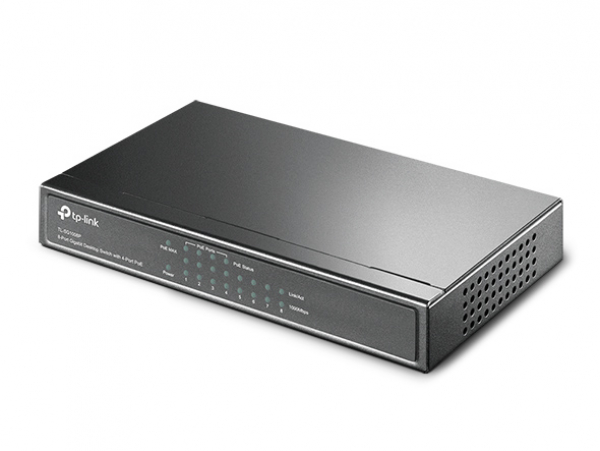

Manufacture # TP-Link | Model # TL-SG1008P

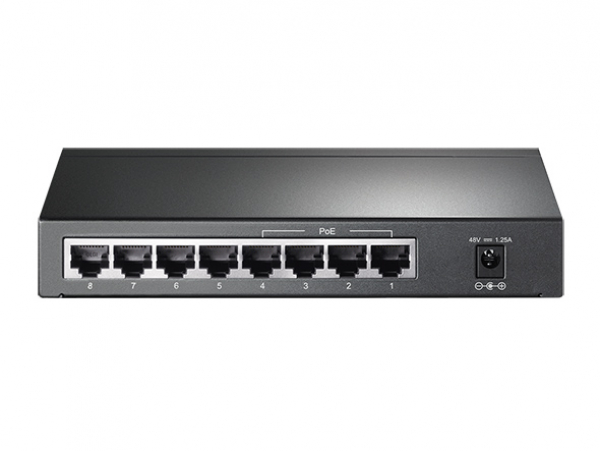

4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Features:
Overview:
Manufacturer Warranty: 01 Year Limited Warranty
| Interface | 8× 10/100/1000 Mbps RJ45 Ports AUTO Negotiation AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External power adapter (Output: 54VDC / 1.3A) |
| Packet Forwarding Rate | 11.904 Mpps |
| PoE Ports (RJ45) | • Standard: 802.3 af/at compliant • PoE Ports: ports 1–4 • Power budget for all PoE ports: 64 W |
| Mac Address Table | 4K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 16 Gbps |
| Dimensions ( W x D x H ) | 6.7 × 3.9 × 1.1 in (171×98×27 mm) |
| Max Power Consumption | • 5.4 W (with no PD connected) • 75 W (with 64W PD connected) |
| Max Heat Dissipation | • 18.4 BTU/h (with no PD connected) • 225.8 BTU/h (with 64 W PD connected) |
| Transmission Method | Store-And-Forward |
| Advanced Functions | • Compatible With IEEE 802.3af/at Compliant PDs • IGMP Snooping • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control • 802.1p/DSCP QoS |
| Certification | CE, FCC, RoHS |

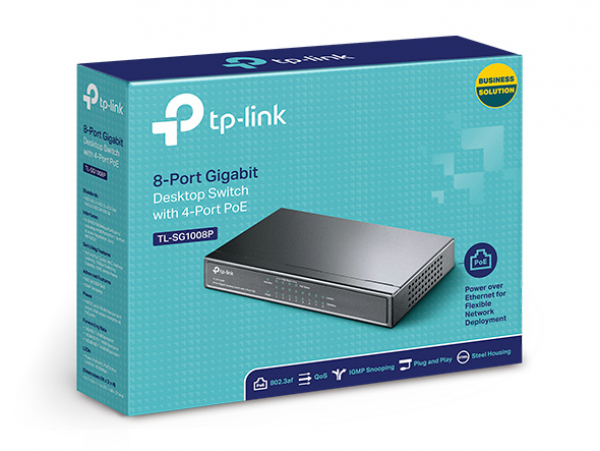

| Package Contents | • TL-SG1008P • Power Adapter • Installation Guide |
| Environment | • Operating Temperature: 0–40 ? (32–104 ?); • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
