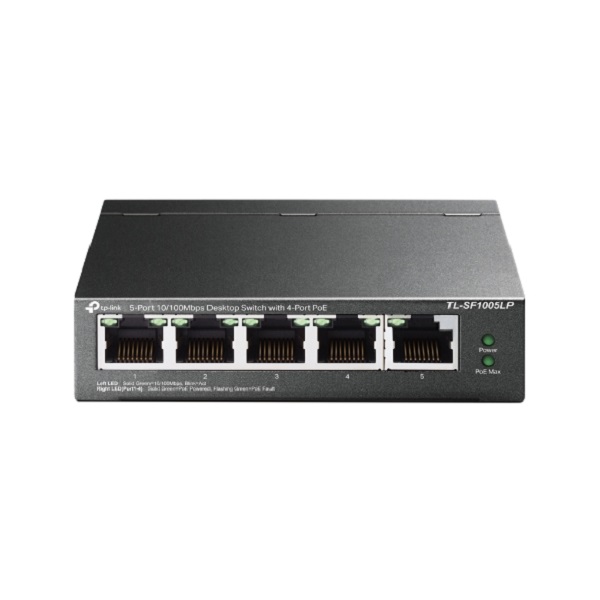

TP-Link 5-port 10/100mbps Desktop Unmanaged Switch With 4-port Poe TL-SF1005LP

SKU : TL-SF1005LP
Brand : TP-Link
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse
TP-Link TL-SF1005LP, Port-5, Interface 5× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE), External Power Adapter (Output: 53.5 V DC / 0.81 A), Mac Address Table 2K, Jumbo Frame 2KB, Switching Capacity 1 Gbps. Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications.
Ask a question about this product
$58.00

Estimated Shipping

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # TP-Link | Model # TL-SF1005LP



Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.



Features:

  • TP-Link TL-SF1005LP 5× 10/100 Mbps RJ45 ports
  • 4× PoE ports transfer data and power on individual cables
  • Works with IEEE 802.3af compliant PDs
  • Up to 250 m data and power transmitting range under Extend Mode**
  • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive application
  • Supports PoE Power up to 41 W for all PoE ports*
  • Plug and play with no configuration required



Overview:

  • Fan Quantity: Fanless
  • Mac Address Table: 2K
  • Jumbo Frame: 2 KB
  • Switching Capacity: 1 Gbps
  • Interface: • 5× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE), AUTO Negotiation, AUTO MDI/MDIX



Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Interface 5× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE)
AUTO Negotiation
AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
External Power Supply External Power Adapter (Output: 53.5 V DC / 0.81 A)
Packet Forwarding Rate 0.744 Mpps
PoE Ports (RJ45) Standard: 802.3 af compliant
PoE Ports: Ports 1–4
Power Supply: 41 W
Mac Address Table 2K
Jumbo Frame 2 KB
Switching Capacity 1 Gbps
Dimensions ( W x D x H ) 3.9×3.9×1.0 in (100×98×25 mm)
Max Power Consumption 1.9 W (220 V / 50 Hz, no PD connected)
47 W (220 V / 50 Hz, with 41 W PD connected)
Max Heat Dissipation 6.48 BTU/h(no PD connected)
160.27 BTU/h(with 41 W PD connected)
Transmission Method Store-And-Forward
Advanced Functions Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 1–4)
Priority Mode Button (Ports 1–2)
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
Certification FCC, CE, RoHS
Package Contents TL-SF1005LP
Power Adapter
Installation Guide
Environment Operating Temperature: 0–40 ? (32–104 ?)
Storage Temperature: -40–70 ? (-40–158 ?)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
