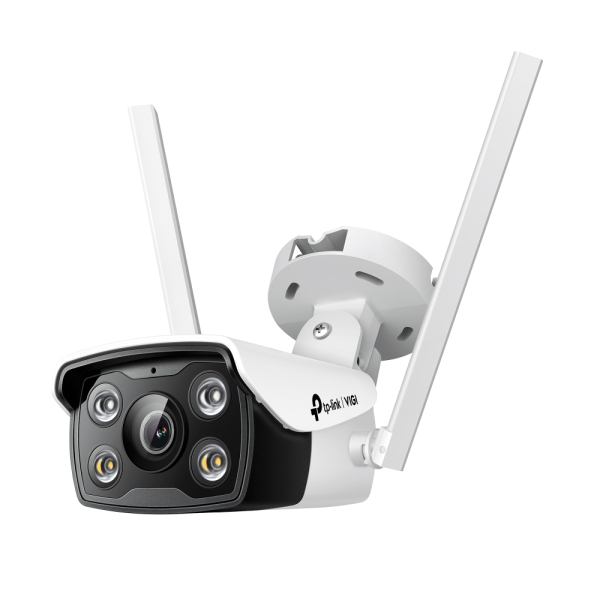

TP-Link 4MP Outdoor Full-Color Wi-Fi Bullet Network Camera

Sku: VIGI C340-W

Availability: In Stock

Brand: TP-Link

Category: IP Cameras

$81.40

VIGI Network Camera with 2560x1440 resolution, advanced features like IR cut filter, dual IR/white LEDs, two-way audio, smart detection events, and weather-resistant IP66 protection. Equipped with a high-performance 1/3” CMOS image sensor, this camera supports various video compression formats and offers exceptional image quality and security for both residential and commercial applications.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture: TP-Link | Model: VIGI C340-W



The VIGI Network Camera is equipped with advanced features designed to deliver high-quality surveillance in diverse environments. This camera offers exceptional clarity with its 1/3" Progressive Scan CMOS image sensor and a wide range of adjustable settings. It operates efficiently in various lighting conditions with a minimum illumination of 0.005 Lux and includes powerful infrared and white LEDs for night vision. The camera supports multiple video streams, including H.265+/H.265/H.264+, ensuring reduced bandwidth usage while maintaining excellent image quality. Additionally, the device includes built-in storage support and a two-way audio system for enhanced monitoring and communication.



Key Features:



  • 1/3" Progressive Scan CMOS Image Sensor for high-quality video
  • Wide Shutter Speed Range: 1/3 to 1/10000 s for versatile applications
  • Support for both IR and White LED illumination with up to 30m range
  • Dual Audio Communication with Two-Way Audio and Environmental Noise Filtering
  • Multiple Smart Events, including Human & Vehicle Classification and Motion Detection
  • High Dynamic Range (HDR) and Advanced Image Enhancement features
  • Support for Cloud Storage, ONVIF, and Multiple Protocols for seamless integration
  • Built-in MicroSD Slot for up to 512GB storage, ideal for continuous recording
  • Durable IP66 Waterproof protection for reliable outdoor use

Image Sensor 1/3” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Minimum Illumination 0.005 Lux; 0 Lux with IR/white light
Day/Night Mechanism IR Cut Filter
Day/Night Switch Unified/ Scheduled/ Auto
Type Fixed Focal Lens
Focal Length 4 mm
Aperture F1.6
FOV Horizontal FOV: 76.3°, Vertical FOV: 40.6°, Diagonal FOV: 90.2°
Lens Mount M12
DORI Distance • Detect: 80 m (262 ft)
• Observe: 33 m (109 ft)
• Recognize: 16 m (52 ft)
• Identify: 8 m (26 ft)
Angle Adjustment (Manual) • Pan: 0° to 360°
• Tilt: 0° to 90°
• Rotation: 0° to 360°
IR LED • Quantity: 2
• Range: 30m
• Wavelength: 850nm
White LED • Quantity: 2
• Range: 30m
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
Max. Resolution 2560 X 1440
Main Stream • Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream • Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
704x576, 640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control CBR, VBR
Video Compression • Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
H.264 Type High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate • Main Stream: 256 Kbps to 3 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps
Image Settings • Mirror
• Brightness
• Contrast
• Saturation
• Sharpness, Exposure, WDR,
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software
• Rotation (90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range DWDR
SNR ≥ 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes
Audio Communication Two-Way Audio
Audio Input Yes
Audio Output Yes
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps (G.711 alaw)
Protocol • TCP/IP
• UDP
• ICMP
• HTTP
• HTTPS
• DHCP, DNS, RTSP
• NTP
• UPnP
• SSL/TLS
• FTP/SFTP
• RTP
• IPv4
• IPv6
• ARP
ONVIF Yes
API Open Network Video Interface (Profile S)
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, Web UI
Web Browser • Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above
Cloud Yes
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Standards IEEE 802.11b/g/n
WiFi Channels • UN: 1-13
• US: 1-11
Frequency 2.4 GHz
Wireless Transmit Power High
Wireless Security WPA-PSK/WPA2-PSK
Wireless Mode AP, AP Client
Smart Event • Human & Vehicle Classification
• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned/Removal Detection
• Scene Change Detection
• Abnormal Sound Detection
• People Detection
• Vehicle Detection
• Loitering Detection
Basic Event • Motion Detection
• Video Tampering Detection
• Exception ( Illegal Login)
Alarm Linkage • Memory Card Video Recording
• Message Push
• Audible Warning
• White Light Flashing
• Upload Capture to FTP
Output Notification Message Push
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
Reset Button Yes
Power DC Power Port
On-board Storage Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB
Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker Yes
Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Package Contents • VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Power Adapter
• Mounting Accessories
Material Plastic
Net Weight 0.38 Kg
Gross Weight 0.66 Kg
Power Supply 9-12V DC/0.85-1.0A, 5.5mm Coaxial Power Plug
Antenna • Quantity: 2
• Type: 2.4GHz Welded Dipole Omni-Directional Antenna
• Gain: 2.0dBi
Protection IP66 Waterproof
Product Dimensions (L x W x H) 78.5 × 188.0 × 161.89 mm (3.09 × 7.40 × 3.67 in)
Certifications CE NTRA JRF VCCI BSMI NCC
