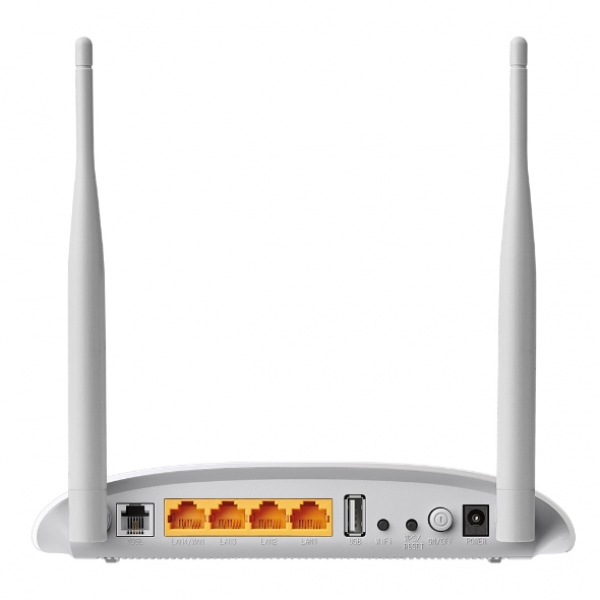

Interface |
4 10/100Mbps RJ45 Ports
1 RJ11 Port
1 USB 2.0 Port |
Button |
1 Power On/Off Button
1 WPS/RESET Button
1 Wi-Fi On/Off Switch |
External Power Supply |
12VDC/1A |
IEEE Standards |
IEEE 802.3, 802.3u |
VDSL2 Standards |
ITU-T G.993.2
ITU-T G.993.5 (G.vector)
ITU-T G.998.4 (G.INP? |
ADSL Standards |
Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1(G.DMT)
ITU-T G.994.1 (G.hs)
ITU-T G.995.1 |
ADSL2 Standards |
ITU-T G.992.3 (G.dmt.bis) |
ADSL2+ Standards |
ITU-T G.992.5 |
Dimensions ( W x D x H ) |
7.7*5.1*1.4 in. (195×130×36mm) |
Antenna Type |
Omni directional, Fixed |
Antenna Gain |
2 x 5dBi |
Wireless Standards |
IEEE 802.11b, 802.11g, 802.11n |
Frequency |
2.400-2.4835GHz |
Transmit Power |
<20dBm(EIRP) |
Wireless Security |
Support 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK
Wireless MAC Filtering |
Quality of Service |
WMM, Bandwidth Control (IP QoS) |
Security |
NAT Firewall,
SPI Firewall,
MAC / IP / URL Filtering |
IPv6 |
IPv6 and IPv4 dual stack
Supported IPv6 Tunnels: DS-Lite, 6RD, 6 to 4
Supported IPv6 Connection Type: PPPoEv6, DHCPv6, Static IPv6 |
Management |
Web Based Configuration(HTTP),
Remote management,
Telnet management,
Command Line Interface,
SSL for TR-069,
SNMP V1/V2C,
Web Based Firmware Upgrade,
CWMP(TR-069),
Diagnostic Tools |
Port Forwarding |
Virtual server, Port Triggering, UPnP, DMZ, Manage Control |
VPN Pass-Through |
PPTP, L2TP, IPSec Pass-through |
ATM/PPP Protocols |
ATM Forum UNI3.1/4.0
PPP over ATM (RFC 2364)
PPP over Ethernet (RFC2516)
IPoA (RFC1577/2225)
PVC - Up to 8 PVCs |
Advanced Features |
Ethernet WAN (EWAN)
Guest Network, Wireless Schedule
Parent Control
Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;
Dynamic Host Configuration Protocol (DHCP), DHCP relay;
Network Address Translation (NAT);
PVC/Ethernet Port Grouping
Static Routing, RIP v1/v2 (optional);
DNS Relay, DDNS,
IGMP snooping V1/2
IGMP Multicast,
UPnP |
USB Sharing |
Storage Sharing
FTP Server
Media Server |
IGMP |
IGMP snooping V1/V2/V3
IGMP Multicast |
IPSec VPN |
10 IPSec VPN Tunnels
LAN-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
MD5, SHA1 Authentication Algorithm
Manual, IKE Key Management Mode
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS) |
Certification |
CE, RoHS |
Package Contents |

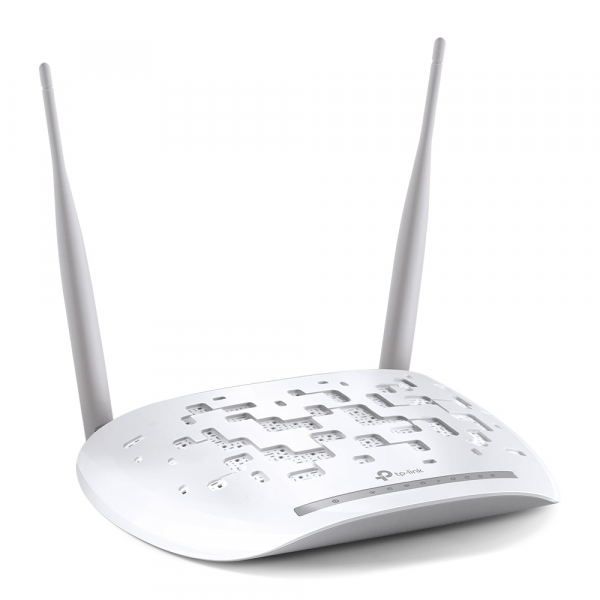

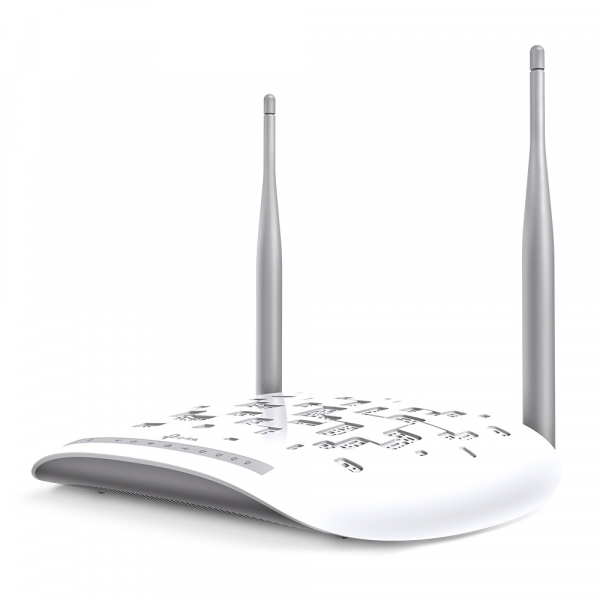

TD-W9970
External Splitter
RJ-11 Telephone Line
RJ-45 Ethernet Cable
Quick Installation Guide
Power Adapter |
System Requirements |
Windows 10/8.1/8/7/Vista/XP or Mac OS or Linux-based operating system |
Environment |
Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
