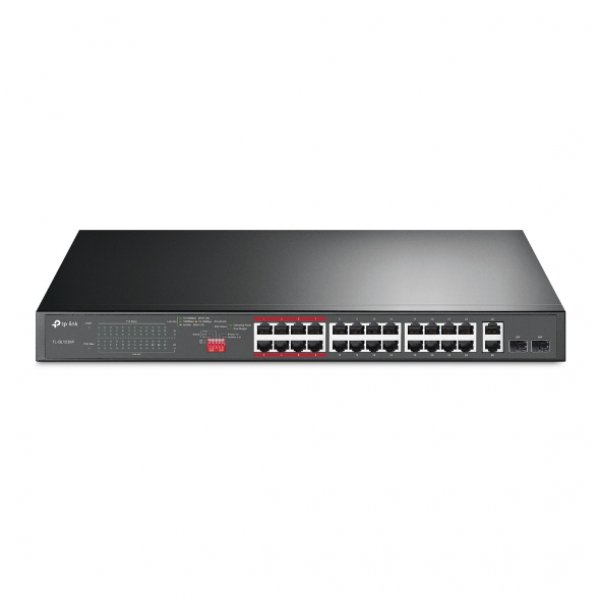

Tp-link 24-port 10/100mbps + 2-port Gigabit Unmanaged Poe+ Switch (TL-SL1226P)

SKU : TL-SL1226P
Brand : TP-Link
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse
Tp-link TL-SL1226P, Interface 24× PoE+ 10/100 Mbps RJ45 Ports, 2× 10/100/1000 Mbps RJ45 Ports, 2× Combo Gigabit SFP Slots, 2 Fans, Power 100-240 VAC, 50/60 Hz, Backup Bandwidth 8.8 Gbps, Forwarding 6.5472 Mpps, Mac Address Table 8K, Jumbo Frame 10KB.   Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 24× PoE ports makes it has wide range of applications.
Ask a question about this product
$339.00

Estimated Shipping

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Tp-link | Model # TL-SL1226P



Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 24× PoE ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.



Features:

  • Tp-link TL-SL1226P 24× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots
  • High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*
  • Up to 250 m data and power PoE transmission range under Extend Mode**, ideal for surveillance system
  • Priority Mode ensures high priority of ports 1–8 to guarantees the quality of sensitive applications like video monitor
  • Isolation Mode allows one-click client traffic separation for higher security and performance
  • Plug and play, with no configuration and installation needed



Overview:

  • Fan Quantity: 2 Fans
  • Physical Security Lock: Yes
  • Power Supply: 100-240 VAC, 50/60 Hz
  • Backup Bandwidth: 8.8 Gbps
  • Packet Forwarding Rate: 6.5472 Mpps
  • PoE Power Budget: 250 W
  • Switching Capacity: 8.8 Gbps



Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Interface
  • 24× PoE+ 10/100 Mbps RJ45 Ports
  • 2× 10/100/1000 Mbps RJ45 Ports
  • 2× Combo Gigabit SFP Slots
Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-X MMF, SMF
Fan Quantity 2 Fans
Physical Security Lock Yes
Power Supply 100-240 VAC, 50/60 Hz
Backup Bandwidth 8.8 Gbps
Packet Forwarding Rate 6.5472 Mpps
PoE+ Ports(RJ45)
  • Standard: 802.3at/802.3af compliant
  • PoE Ports: Port 1 – Port 24
  • PoE Power Budget: 250 W
Mac Address Table 8 K
Jumbo Frame 10 KB
Switching Capacity 8.8 Gbps
Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Max Power Consumption 18.32 W (220/50 Hz. no PD connected)
294 W (220/50 Hz. with 250 W PD connected)
Max Heat Dissipation 62.47 BTU/h (no PD connected)
1002.54 BTU/h (with 250 W PD connected)
Advanced Features
  • Compatible With IEEE 802.3at/af Compliant PDs
  • Extend Mode (Up to 250m PoE power supply and data transmission)
  • Priority Mode
  • Isolation Mode
  • PD Detection
  • Intelligent Power Supply
  • Mac Address Auto-Learning and Auto-Aging
  • IEEE802.3x Flow Control
Transmission Method Store-And-Forward
Certification CE, FCC, RoHS
Package Contents
  • TL-SL1226P
  • Power Cable
  • Installation Guide
  • Two mounting brackets and the fittings
Environment
  • Operating Temperature: 0–50 °C (32–122 °F)
  • Storage Temperature: -40–70 °C (-40–158 °F)
  • Operating Humidity: 10–90% non-condensing
  • Storage Humidity: 5–90% non-condensing
