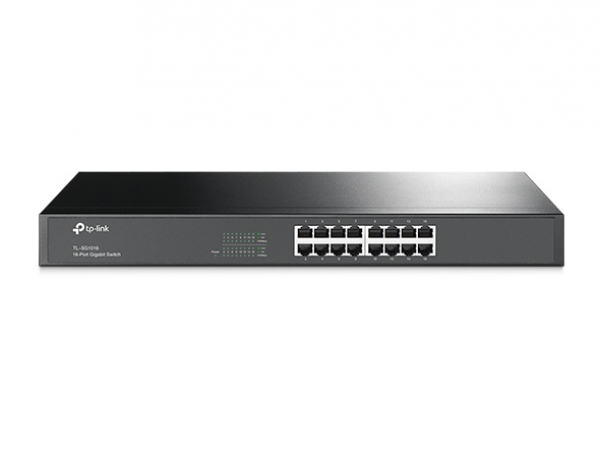

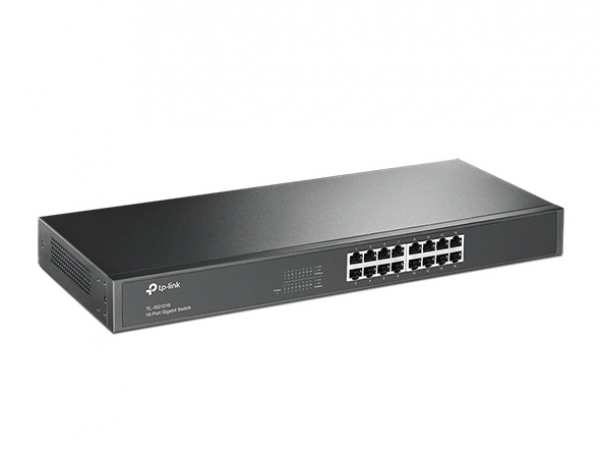

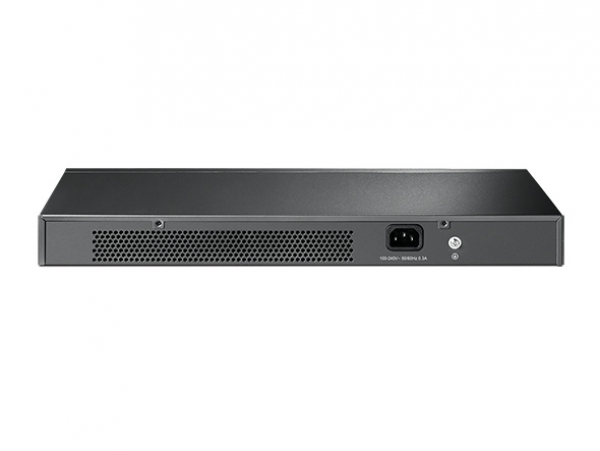

TP-LINK 16 Port Gigabit Unmanaged Switch (10/100/1000) TL-SG1016 TP-LINK 16 Port Gigabit Unmanaged Switch (10/100/1000) TL-SG1016 TP-LINK 16 Port Gigabit Unmanaged Switch (10/100/1000) TL-SG1016

TP-LINK 16 Port Gigabit Unmanaged Switch (10/100/1000) TL-SG1016

SKU : TL-SG1016
Brand : TP-Link
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse
TP-LINK TL-SG1016, Port-16, Gigabit Switch, Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x, IEEE 802.1p, Interface 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX), Power 100-240VAC, 50/60Hz, Max Power Consumption 10.4W, Max Heat Dissipation 35.6BTU/h, Capacity 32Gbps, Jumbo Frame 10KB. This new product TL-SG1016 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according.
Ask a question about this product
$135.00

Buy Now

Estimated Shipping

Find

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # TP-Link | Model # TL-SG1016



This new product TL-SG1016 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.


Features:

  • TP-LINK TL-SG1016 16 10/100/1000Mbps RJ45 ports
  • Innovative energy-efficient technology saves power consumption
  • Supports MAC address self-learning and auto MDI/MDIX
  • Standard 19-inch rack-mountable steel case



Overview:

  • 100-240VAC, 50/60Hz Power Supply
  • Rack Mountable  Mounting
  • 32Gbps Switching Capacity
  • 10KB Jumbo Frame
  • FCC, RoHS Certification



Manufacturer Warranty: 01 Year Limited Warranty



Technical Specifications

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x, IEEE 802.1p
Interface 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity Fanless
Physical Security Lock No
Power Supply 100-240VAC, 50/60Hz
Dimensions ( W x D x H ) 17.3 x 7.1 x 1.7 in.
(440*180*44 mm)
Mounting 19" Rack Mountable
Max Power Consumption 10.4W
Max Heat Dissipation 35.6BTU/h
Switching Capacity 32Gbps
Packet Forwarding Rate 23.8Mpps
MAC Address Table 8K
Jumbo Frame 10KB
QoS 802.1p/DSCP QoS*

*Only for V12 and later version
Green Technology Yes
Transfer Method Store-and-Forward
Certification FCC, CE, RoHS
Package Contents 16-Port Gigabit Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet
Environment Operating Temperature: 0?~40? (32?~104?);
Storage Temperature: -40?~70? (-40?~158?);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
