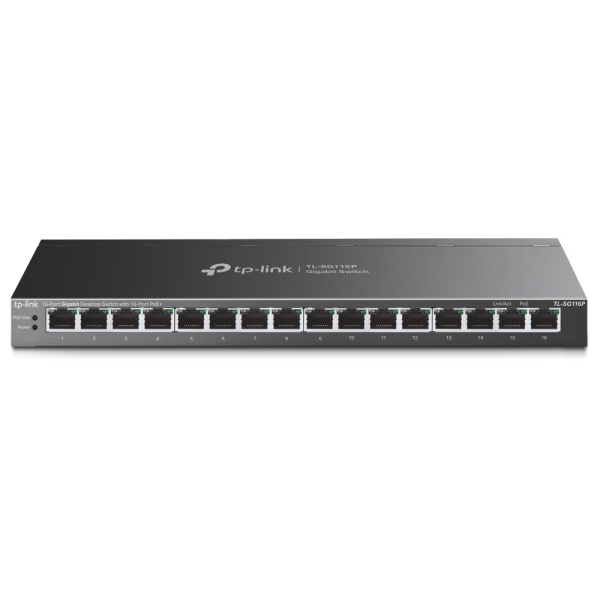

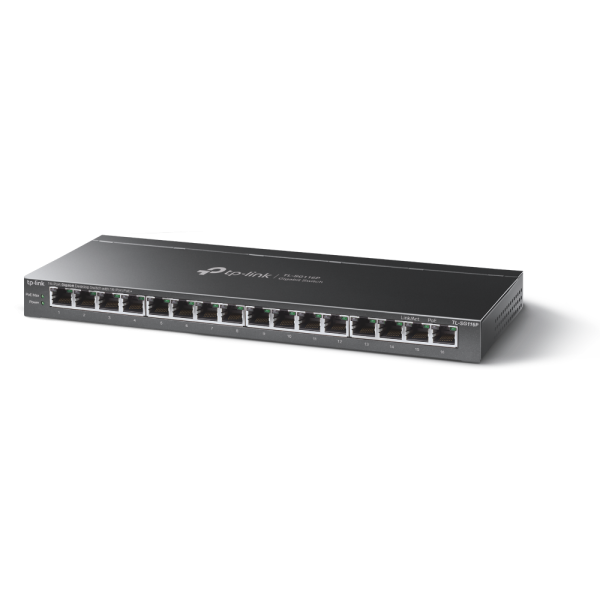

Name: TP-Link 16-Port Gigabit Desktop Switch with 16-Port PoE+
Brand: TP-Link
SKU: TL-SG116P
Price: 173.80 AUD
Availability: InStock

TP-Link 16-Port Gigabit Desktop Switch with 16-Port PoE+

Sku: TL-SG116P

Brand: TP-Link

Category: Switches

$173.80

Shipping Information

Availability: In Stock

Ships in 1-2 days.

Pickup from Seven Hills in 1-2 days.

Shipping Calculator

Find

Interface: 16x 10/100/1000Mbps RJ45 Ports, Packet Forwarding Rate: 23.8 Mpps, Mac Address Table: 8K, Auto-learning, Auto-aging, Switching Capacity: 32 Gbps, PoE Ports (RJ45): Standard: 802.3 af/at compliant, PoE Ports: Ports 1–16, Power Supply: 120 W, Warranty: 05 Years, TL-SG116P.

We Accept

Description

Manufacture # TP-Link | Model # TL-SG116P

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 120 W PoE power budget* for the 16× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Features:

16x 10/100/1000 Mbps RJ45 ports
With 16 PoE+ ports, transfers data and power on one single cable
Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 120 W for all PoE ports
Up to 250 m data and power transmission range under Extend Mode
Priority Mode ensures high priority of ports 1–4 to guarantee the quality of the sensitive applications
Isolation Mode allows one-click client traffic separation for higher security and performance

Overview:

Interface: 16x 10/100/1000Mbps RJ45 Ports
Packet Forwarding Rate: 23.8 Mpps
Mac Address Table: 8K, Auto-learning, Auto-aging
Switching Capacity: 32 Gbps
PoE Ports (RJ45): Standard: 802.3 af/at compliant, PoE Ports: Ports 1–16, Power Supply: 120 W

Manufacturer Warranty: 05 Years Limited Warranty

Hardware Features :-
Interface	16x 10/100/1000Mbps RJ45 Ports AUTO Negotiation AUTO MDI/MDIX
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
External Power Supply	External Power Adapter (Output: 53.5 VDC / 2.43 A)
Packet Forwarding Rate	23.8 Mpps
PoE Ports (RJ45)	Standard: 802.3 af/at compliant PoE Ports: Ports 1–16 Power Supply: 120 W
Mac Address Table	8K, Auto-learning, Auto-aging
Switching Capacity	32 Gbps
Dimensions ( W x D x H )	11.3 x 4.4 x 1.0 in (286 x 111.7 x 25.4 mm)
Max Power Consumption	11.72 W (220 V / 50 Hz no PD connected) / 11.56 W (110 V / 60 Hz no PD connected) 142.51 W (220 V / 50 Hz with 120 W* PD connected) / 144.28 W (110 V / 60 Hz with 120 W* PD connected)
Max Heat Dissipation	39.85 BTU/h (220 V / 50 Hz no PD connected) / 39.31 BTU/h (110 V / 60 Hz no PD connected) 484.53 BTU/h (220 V / 50 Hz with 120 W* PD connected) / 490.55 BTU/h (110 V / 60 Hz with 120 W* PD connected)
Software Features :-
Advanced Features	Compatible With IEEE 802.3af/at Compliant PDs Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission) Priority Mode Button (Ports 1–4) Isolation Mode Button (Ports 1–7 / 8-14) PoE Auto Recovery (Ports 1-16) Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping
Transfer Method	Store-And-Forward
Others :-
Certification	FCC, CE, RoHS
Package Contents	TL-SG116P Power Adapter Installation Guide
Environment	Operating Temperature: 0–40 °C (32–104 °F); Storage Temperature: -40–70 °C (-40–158 °F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
