Name: Thermaltake Toughpower GX1 RGB 700W 80+ Gold Non-Modular PSU
Brand: Thermaltake
SKU: PS-TPD-0700NHFAGA-1
Price: 118.80 AUD
Availability: OutOfStock

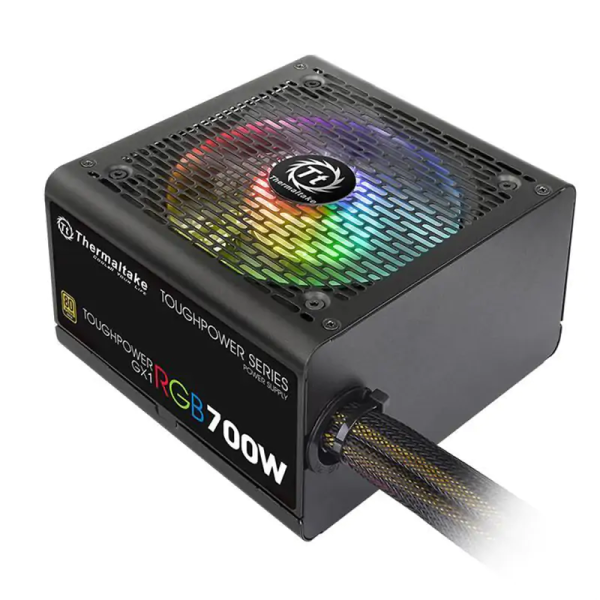

Thermaltake Toughpower GX1 RGB 700W 80+ Gold Non-Modular PSU

Sku: PS-TPD-0700NHFAGA-1

Brand: Thermaltake

Category: Power Supplies

$118.80

Shipping Information

Availability: On Order

On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.

Shipping Calculator

Find

700W ATX power supply with Active PFC, 80 PLUS Gold certification, 12cm hydraulic bearing fan, and OVP/OCP protection. Compatible with 6+2PIN PCI-E connectors.

We Accept

Description

Manufacture: Thermaltake | Model: PS-TPD-0700NHFAGA-1

The 700W ATX power supply is designed for high-performance systems requiring stable and efficient power delivery. With an 80 PLUS Gold certification, it ensures energy efficiency and reduced power consumption. The unit features an RGB fan for aesthetic appeal, complemented by a 12cm hydraulic bearing fan that provides effective cooling while maintaining quiet operation. It offers a maximum output capacity of 700W and a peak output of 840W, making it suitable for gaming and workstation builds. Equipped with four PCI-E 6+2PIN connectors, it supports multiple GPU configurations.

Key Features:

700W continuous power output with 840W peak capacity
ATX form factor for compatibility with standard cases
Compact dimensions: 150mm(W) x 86mm(H) x 140mm(D)
80 PLUS Gold certification for energy efficiency
Active PFC for stable power delivery
RGB fan for enhanced aesthetics
12cm hydraulic bearing cooling fan for efficient heat dissipation
Power Good Signal: 100-500 msec
Hold Up Time: >12ms at 80% load
Wide input voltage range: 100V - 240V with 50Hz - 60Hz frequency
Operating temperature range: +5°C to +40°C
MTBF of 100,000 hours for long-lasting durability
Comprehensive safety certifications: CE, TÜV SÜD, FCC, UL, BSMI, S-mark
Four PCI-E 6+2PIN connectors for multiple GPU support

P/N	PS-TPD-0700NHFAGA-1
Watts	700W
RGB Fan	Yes
Form Factor	ATX
Model	TP-700AH2NKG
Max. Output Capacity	700W
Peak Output Capacity	840W
Color	Black
Dimension (W x H x D)	150mm(W) x 86mm(H) x 140mm(D)
PFC (Power Factor Correction)	Active PFC
Power Good Signal	100-500 msec
Hold Up Time	> 12msec at 80% of full load
Input Current	10A max.
Input Frequency Range	50Hz - 60Hz
Input Voltage	100V - 240V~
Operating Temperature	+5°C to +40°C
Operating Humidity	20% to 85%, non-condensing
Storage Temperature	-40°C to +55°C
Storage Humidity	10% to 95%, non-condensing
Cooling System	12cm hydraulic bearing fan
Efficiency	Meet 80 PLUS® Gold at 115Vac input.
MTBF	100,000 hrs minimum
Safety Approval	CE / TÜV SUD / FCC / UL / BSMI / S-mark
PCI-E 6+2PIN	4
