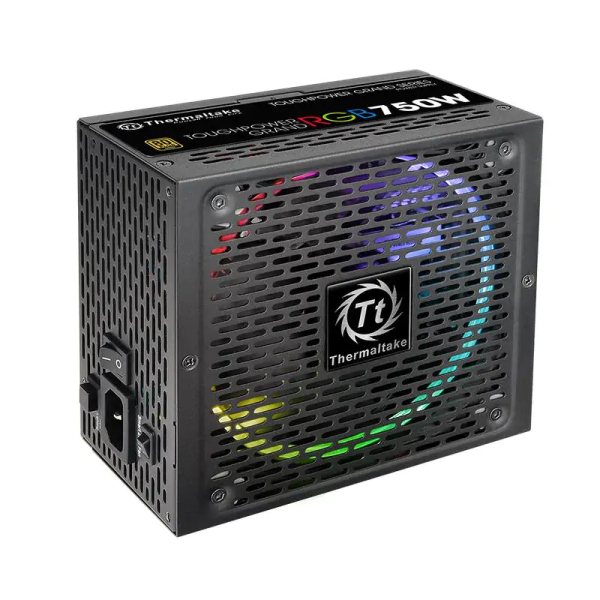

Thermaltake Toughpower Grand Sync RGB 80+ Gold 750W Fully Modular PSU

Sku: PS-TPG-0750FPCGAU-S

Availability: Out of Stock

Brand: Thermaltake

Category: Power Supplies

$190.30

750W ATX power supply with Active PFC, 80 PLUS Gold efficiency, 14cm hydraulic bearing fan, and robust protection features. Includes 4 PCIe 6+2pin connectors and certifications such as CE, TUV, FCC, and more.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture: Thermaltake | Model: PS-TPG-0750FPCGAU-S



The TPG-750AH3FSGR is a high-performance 750W power supply unit (PSU) designed for demanding PC builds, offering a peak output capacity of 900W for handling power surges. It is built with an ATX 12V v2.4 and EPS v2.92 standard, ensuring compatibility with modern systems. With 80 PLUS Gold certification, it provides high energy efficiency, reducing heat and power wastage. The PSU features a 14cm hydraulic bearing fan for optimal cooling and silent operation. Its multiple safety protections and extensive certifications make it a reliable choice for gamers and professionals alike.



Key Features:



  • 750W continuous power output with 900W peak capacity
  • 80 PLUS Gold efficiency rating at 115V AC input
  • ATX 12V v2.4 and EPS v2.92 compatibility
  • Active PFC for improved power stability
  • Standard ATX form factor (150mm x 86mm x 160mm)
  • 14cm hydraulic bearing fan for efficient cooling and quiet performance
  • Wide input voltage range: 100V – 240V with 50/60Hz frequency
  • Power Good Signal: 100-500 msec
  • Hold Up Time: >16ms at 100% load
  • PCIe support: 4 x 6+2 pin connectors
  • Comprehensive protection features: OVP, SCP, OPP, UVP, OTP, OCP
  • MTBF of 120,000 hours for long-term reliability
  • Safety approvals: CE, cTUVus, TÜV SÜD, FCC, CCC, BSMI, EAC

Model TPG-750AH3FSGR
Type ATX 12V v2.4 and EPS v2.92
Max. Output Capacity 750W
Peak Output Capacity 900W
Colour Black
Dimension (W / H / D) 150mm(W) x 86mm(H) x 160mm(D)
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500 msec
Hold Up Time > 16msec at 100% of full load
Input Current 10A
Input Frequency Range 50Hz - 60Hz
Input Voltage 100V – 240V~
Operating Temperature 0°C to + 50°C
Operating Humidity 20% to 90%, non-condensing
Storage Temperature -40°C to + 70°C
Storage Humidity 20% to 95%, non-condensing
Cooling System 14cm hydraulic bearing fan
Efficiency Meet 80 PLUS® Gold at 115Vac input.
MTBF 120,000 hrs minimum
Safety Approval CE/cTUVus/TÜV SÜD/FCC/CCC/BSMI/EAC
PCI-E 6+2PIN 4
Protection OVP, SCP, OPP, UVP, OTP, OCP
