Sku: PS-TPG-0650FPCGAU-S
Brand: Thermaltake
Category: Power Supplies
Availability: On Order
On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.
Shipping Calculator
Find
We Accept
Manufacture: Thermaltake | Model: PS-TPG-0650FPCGAU-S

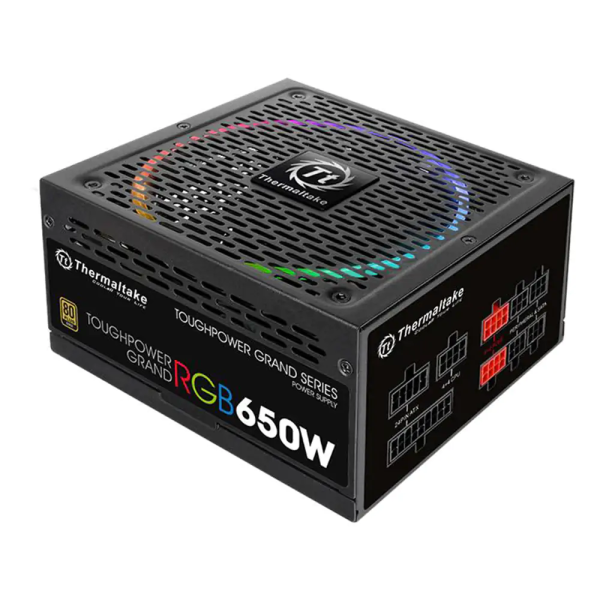

The TPG-650AH3FSGR is a 650W ATX power supply unit designed for efficiency and reliability. It features an RGB fan for aesthetic customization and a 14cm hydraulic bearing fan for optimal cooling performance. This PSU meets the 80 PLUS Gold certification, ensuring high efficiency and reduced power wastage. With a peak output capacity of 780W, it provides stable power for demanding systems. Its robust build, wide input voltage range, and multiple safety approvals make it a dependable choice for gamers and PC enthusiasts.
| P/N | PS-TPG-0650FPCGxx-S |
|---|---|
| Watts | 650W |
| RGB Fan | Yes |
| Form Factor | ATX |
| Model | TPG-650AH3FSGR |
| Type | ATX 12V v2.4 and EPS v2.92 |
| Max. Output Capacity | 650W |
| Peak Output Capacity | 780W |
| Color | Black |
| Dimension (W x H x D) | 150mm(W) x 86mm(H) x 160mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | > 16msec at 100% of full load |
| Input Current | 10A |
| Input Frequency Range | 50Hz - 60Hz |
| Input Voltage | 100V – 240V~ |
| Operating Temperature | 0°C to +50°C |
| Operating Humidity | 20% to 90%, non-condensing |
| Storage Temperature | -40°C to +70°C |
| Storage Humidity | 20% to 95%, non-condensing |
| Cooling System | 14cm hydraulic bearing fan |
| Efficiency | Meet 80 PLUS® Gold at 115Vac input. |
| MTBF | 120,000 hrs minimum |
| Safety Approval | CE / cTUVus / TÜV SÜD / FCC / CCC / BSMI / EAC |
| PCI-E 6+2pin | 4 |
| Protection | OVP, SCP, OPP, UVP, OTP, OCP |
