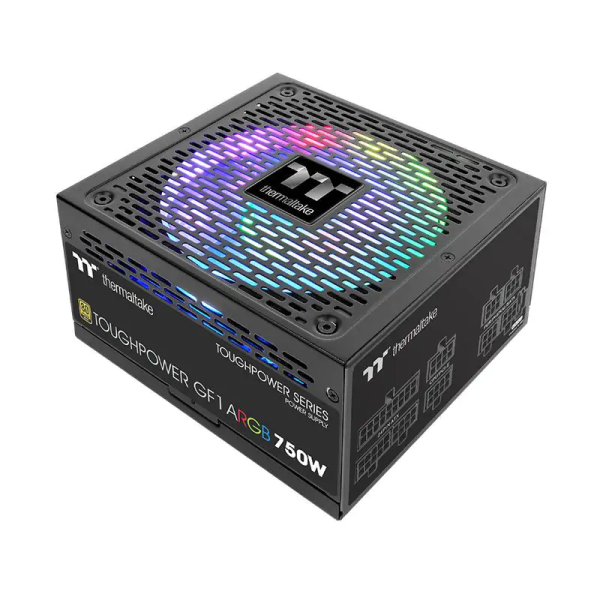

Thermaltake Toughpower GF1 ARGB 750W 80+ Gold Fully Modular PSU

Sku: PS-TPD-0750F3FAGA-1

Availability: Out of Stock

Brand: Thermaltake

Category: Power Supplies

$180.40

750W ATX power supply with Active PFC, RGB fan, 80 PLUS Gold efficiency, and 6 protection features. Includes certifications such as CE, TUV, FCC, and more.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture: Thermaltake | Model: PS-TPD-0750F3FAGA-1



The TTP-750AH3FCG-U is a high-performance 750W ATX power supply unit (PSU) designed for efficient and stable power delivery. It features an RGB fan for aesthetic customization and a 14cm hydraulic bearing fan for enhanced cooling performance. This PSU meets the 80 PLUS Gold efficiency standard, ensuring reduced power loss and optimal energy consumption. With a peak output capacity of 900W, it provides sufficient power for demanding systems. Its wide input voltage range, multiple safety approvals, and comprehensive protection mechanisms make it a reliable choice for PC builders and gamers.



Key Features:



  • 750W continuous power output with a 900W peak capacity
  • ATX form factor with dimensions: 150mm x 86mm x 160mm
  • Analog power regulation for stable performance
  • RGB fan for customizable lighting effects
  • 14cm hydraulic bearing fan for quiet and effective cooling
  • 80 PLUS Gold efficiency rating at 115V AC input
  • Active PFC for improved power efficiency and stability
  • Power Good Signal: 100-500 msec
  • Hold Up Time: >16ms at 100% load
  • Wide input voltage range: 100V – 240V with 50/60Hz frequency
  • Input current of up to 10A
  • Comprehensive protection features: OCP, OVP, UVP, OPP, SCP, OTP
  • MTBF of 120,000 hours for long-term reliability
  • Safety approvals: CE, cTUVus, TÜV, FCC, BSMI, CCC, EAC, S-Mark
  • Four PCI-E 6+2PIN connectors for multi-GPU support

P/N PS-TPD-0750F3FAGA-1
Model TTP-750AH3FCG-U
Type Analog
Form Factor ATX
RGB Fan Yes
Watts 750W
Max Output Capacity 750W
Peak Output Capacity 900W
Color Black
Dimensions 150mm(W) x 86mm(H) x 160mm(D)
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500 msec
Hold Up Time > 16msec at 100% of full load
Input Current 10A
Input Frequency Range 50Hz - 60Hz
Input Voltage 100V – 240V~
Operating Temperature 0°C to +50°C
Operating Humidity 20% to 90%, non-condensing
Storage Temperature -20°C to +70°C
Storage Humidity 5% to 95%, non-condensing
Cooling System 14cm hydraulic bearing fan
Efficiency Meet 80 PLUS® Gold at 115Vac input.
MTBF 120,000 hrs minimum
Safety Approval CE/cTUVus/TÜV/FCC/BSMI/CCC/EAC/S-Mark
PCI-E 6+2PIN 4
Protection OCP, OVP, UVP, OPP, SCP, OTP
