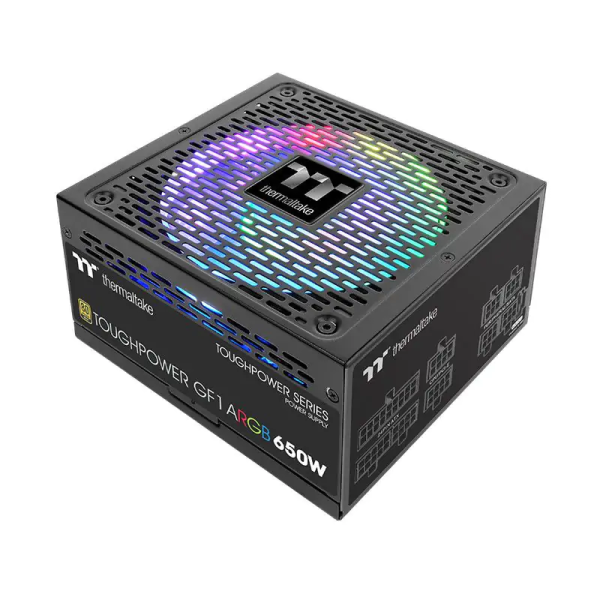

Thermaltake Toughpower GF1 ARGB 650W 80+ Gold Fully Modular PSU

Sku: PS-TPD-0650F3FAGA-1

Availability: Out of Stock

Brand: Thermaltake

Category: Power Supplies

$187.00

650W ATX power supply with Active PFC, 80 PLUS Gold efficiency, RGB fan, and comprehensive protection features. Includes 4 PCIe 6+2pin connectors and certifications such as CE, TUV, FCC, and more.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture: Thermaltake | Model: PS-TPD-0650F3FAGA-1



The TTP-650AH3FCG-U is a powerful 650W ATX power supply unit (PSU) designed for gaming and high-performance PC builds. It features an RGB fan for aesthetic customization while ensuring efficient cooling with its 14cm hydraulic bearing fan. With a peak output capacity of 780W, it can handle demanding power loads. The PSU is 80 PLUS Gold certified, ensuring high energy efficiency and stable power delivery. Multiple protection mechanisms and industry-standard safety approvals make it a reliable and secure choice for modern systems.



Key Features:



  • 650W continuous power output with 780W peak capacity
  • 80 PLUS Gold efficiency rating at 115V AC input
  • ATX form factor with dimensions: 150mm x 86mm x 160mm
  • RGB fan for customizable lighting effects
  • Active PFC for enhanced power stability
  • 14cm hydraulic bearing fan for effective cooling and quiet operation
  • Wide input voltage range: 100V – 240V with 50/60Hz frequency
  • Power Good Signal: 100-500 msec
  • Hold Up Time: >16ms at 100% load
  • PCIe support: 4 x 6+2 pin connectors
  • Comprehensive protection features: OCP, OVP, UVP, OPP, SCP, OTP
  • MTBF of 120,000 hours for long-term reliability
  • Safety approvals: CE, cTUVus, TÜV, FCC, BSMI, CCC, EAC, S-Mark

Watts 650W
RGB Fan Yes
Form Factor ATX
Model TTP-650AH3FCG-U
Max. Output Capacity 650W
Peak Output Capacity 780W
Color Black
Dimension (W / H / D) 150mm(W) x 86mm(H) x 160mm(D)
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500 msec
Hold Up Time > 16msec at 100% of full load
Input Current 10A
Input Frequency Range 50Hz - 60Hz
Input Voltage 100V – 240V~
Operating Temperature 0°C to + 50°C
Operating Humidity 20% to 90%, non-condensing
Storage Temperature -20°C to + 70°C
Storage Humidity 5% to 95%, non-condensing
Cooling System 14cm hydraulic bearing fan
Efficiency Meet 80 PLUS® Gold at 115Vac input.
MTBF 120,000 hrs minimum
Safety Approval CE/cTUVus/TÜV/FCC/BSMI/CCC/EAC/S-Mark
PCI-E 6+2PIN 4
Protection OCP, OVP, UVP, OPP, SCP, OTP
