Sku: PS-TPD-0850FNFAGA-H
Brand: Thermaltake
Category: Power Supplies
Availability: On Order
On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.
Shipping Calculator
Find
The TTP-850AH2FKG is a reliable 850W power supply with 80 PLUS Gold certification, active PFC, and a 120mm FDB cooling fan. Ideal for gaming and professional systems, it supports multiple PCI-E 6+2PIN and 12+4PIN connectors for maximum performance.
We Accept
Manufacture: Thermaltake | Model: PS-TPD-0850FNFAGA-H

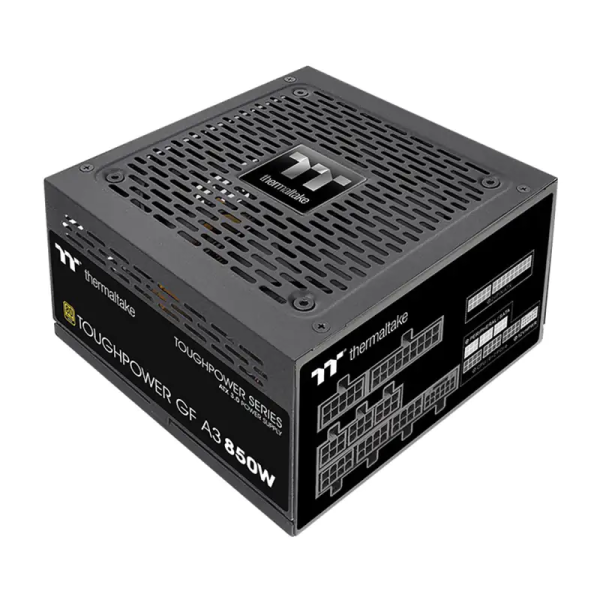

The TTP-850AH2FKG is an 850W power supply unit designed for high-performance computing needs, offering stable and efficient power delivery. It meets the 80 PLUS Gold certification, ensuring high energy efficiency and minimal power loss. The PSU features Active PFC for reliable voltage regulation and a 12cm FDB fan for superior cooling with low noise levels. With a wide input voltage range of 100V-240V, it supports various power environments. Equipped with multiple PCI-E connectors, including a PCI-E 12+4 PIN (450W), it is ideal for modern GPUs. Built for durability, it boasts a 100,000-hour MTBF and multiple safety certifications for secure operation.
| P/N | PS-TPD-0850FNFAGA-H |
|---|---|
| Watts | 850W |
| Model | TTP-850AH2FKG |
| Max. Output Capacity | 850W |
| Color | Black |
| Dimension (W / H / D) | 150mm(W) x 86mm(H) x 140mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-250 msec |
| Hold Up Time | > 17msec |
| Input Current | 10A Max. |
| Input Frequency Range | 50Hz - 60Hz |
| Input Voltage | 100 - 240Vac |
| Operating Temperature | 0°C to +45°C |
| Operating Humidity | 5% to 85%, non-condensing |
| Storage Temperature | -40°C to +70°C |
| Storage Humidity | 5% to 95%, non-condensing |
| Cooling System | 12cm FDB Fan |
| Efficiency | Meet 80 PLUS® Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI |
| PCI-E 6+2 PIN | 4 |
| PCI-E 12+4 PIN | 1 (450W) |
