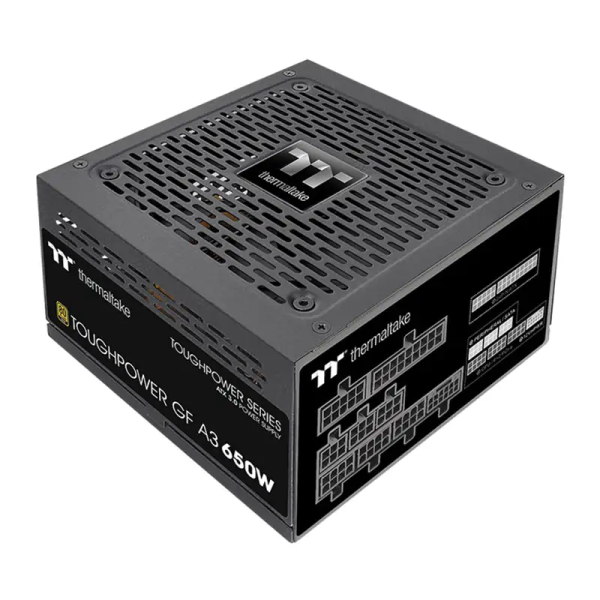

Name: Thermaltake Toughpower GF A3 650W 80+ Gold 650W ATX3 Fully Modular PSU
Brand: Thermaltake
SKU: PS-TPD-0650FNFAGA-H
Price: 156.20 AUD
Availability: OutOfStock

Thermaltake Toughpower GF A3 650W 80+ Gold 650W ATX3 Fully Modular PSU

Sku: PS-TPD-0650FNFAGA-H

Brand: Thermaltake

Category: Power Supplies

$156.20

Shipping Information

Availability: On Order

On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.

Shipping Calculator

Find

650W ATX power supply with Active PFC, 80 PLUS Gold certification, 12cm FDB fan, and 6+2PIN & 12+4PIN connectors. Certified with CE, FCC, TUV, and more.

We Accept

Description

Manufacture: Thermaltake | Model: PS-TPD-0650FNFAGA-H

The TTP-650AH2FKG is a compact and efficient 650W power supply unit designed for reliable performance and energy efficiency. It features an 80 PLUS Gold certification, ensuring reduced power consumption and optimized heat management. Equipped with a 12cm fluid dynamic bearing (FDB) fan, it provides silent and effective cooling. This PSU supports modern graphics cards with four PCI-E 6+2PIN connectors and one PCI-E 12+4PIN (300W) connector, making it a great choice for gaming and professional workloads.

Key Features:

650W continuous power output
Compact dimensions: 150mm(W) x 86mm(H) x 140mm(D)
80 PLUS Gold certification for high efficiency
Active PFC for enhanced power stability
Power Good Signal: 100-250 msec
Hold Up Time: >17ms
Wide input voltage range: 100-240V with 50/60Hz frequency
Operating temperature range: 0°C to +45°C
Silent 12cm FDB fan for efficient cooling
MTBF of 100,000 hours for durability
Comprehensive safety approvals: CE, FCC, UKCA, ICES, LVD, TUV, cTUVus, CB, CCC, BSMI
Four PCI-E 6+2PIN connectors for multi-GPU setups
One PCI-E 12+4PIN (300W) connector for modern GPU compatibility

P/N	PS-TPD-0650FNFAGA-H
Watts	650W
Model	TTP-650AH2FKG
Max. Output Capacity	650W
Color	Black
Dimension (W x H x D)	150mm(W) x 86mm(H) x 140mm(D)
PFC (Power Factor Correction)	Active PFC
Power Good Signal	100-250 msec
Hold Up Time	> 17msec
Input Current	10A Max.
Input Frequency Range	50Hz - 60Hz
Input Voltage	100 - 240Vac
Operating Temperature	0°C to +45°C
Operating Humidity	5% to 85%, non-condensing
Storage Temperature	-40°C to +70°C
Storage Humidity	5% to 95%, non-condensing
Cooling System	12cm FDB Fan
Efficiency	Meet 80 PLUS® Gold at 115Vac input.
MTBF	100,000 hrs minimum
Safety Approval	CE / FCC / UKCA / ICES / LVD / TUV / cTUVus / CB / CCC / BSMI
PCI-E 6+2PIN	4
PCI-E 12+4PIN	1 (300W)
