Manufacture: Thermaltake | Model: PS-TPD-1200FNFAGA-H

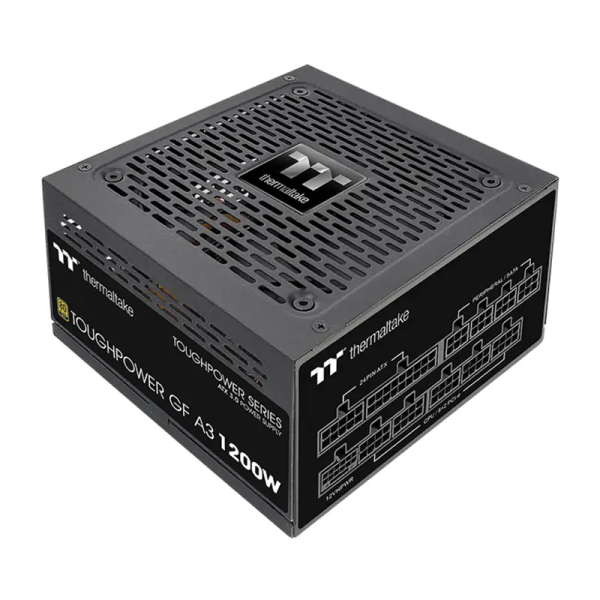

The TTP-1200AH2FLG is a powerful and reliable 1200W power supply designed to meet the demands of high-performance gaming and workstation builds. With 80 PLUS Gold certification, it delivers excellent energy efficiency while ensuring stable power output. Active PFC enhances voltage regulation, and its 12cm FDB fan provides efficient cooling with minimal noise. Supporting both PCI-E 6+2PIN and PCI-E 12+4PIN (600W) connectors, this PSU is ideal for high-end GPUs. Built with durability in mind, it features a long 100,000-hour MTBF and multiple safety certifications for worry-free operation.
| P/N | PS-TPD-1200FNFAGA-H |
|---|---|
| Model | TTP-1200AH2FLG |
| Watts | 1200W |
| Max Output Capacity | 1200W |
| Color | Black |
| Dimensions | 150mm(W) x 86mm(H) x 140mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-150 msec |
| Hold Up Time | > 17msec |
| Input Current | 20A-8A |
| Input Frequency Range | 50Hz/60Hz |
| Input Voltage | 100-240V? |
| Operating Temperature | 5°C to +45°C |
| Operating Humidity | 20% to 85%, non-condensing |
| Storage Temperature | -40°C to +55°C |
| Storage Humidity | 10% to 95%, non-condensing |
| Cooling System | 12cm FDB Fan |
| Efficiency | Meet 80 PLUS® Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | FCC/ICES/CB/cTUVus |
| PCI-E 6+2PIN | 5 |
| PCI-E 12+4PIN | 1 (600W) |
