Thermaltake Toughfan 12 PWM High Static Pressure Radiator Fan White

SKU : CL-F117-PL12WT-A
Brand : Thermaltake
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
Started Voltage: 9.0 V, Rated Current: 0.12 A, Rated Voltage: 12 V, Power Input: 1.44 W, Bearing Type: Hydraulic Bearing Gen.2, Life Expectation: 40,000 hrs,25°C, Connector: 4 PIN PWM, Warranty: 02 Years, CL-F117-PL12WT-A.
Ask a question about this product

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa


  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Thermaltake| Model # CL-F117-PL12WT-A

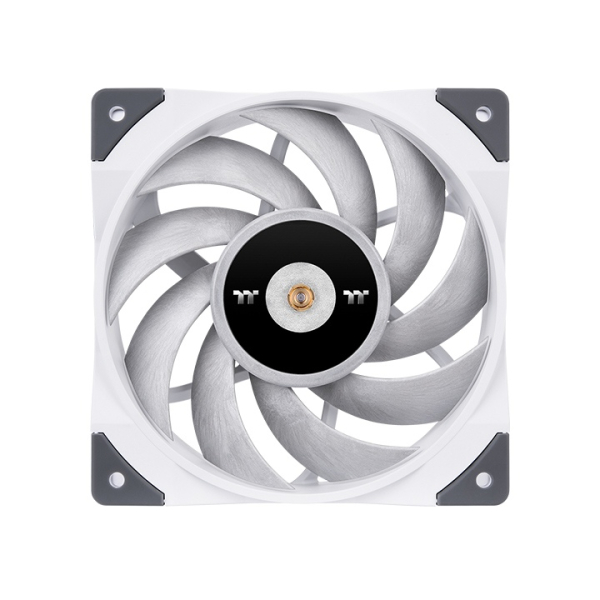

Thermaltake TOUGHFAN 12 White PWM-controlled high static pressure fan features an optimized structure to maximize high-end cooling needs and fulfill users’ wishes to add the color white to the series.



  • TOUGHFAN 14 White high static pressure fan can perform at a maximum operating speed of up to 2000 RPM, producing a consistent airflow of 119.1 CFM with 3.54 mm-H2O static pressure, and maintaining a low audio noise level of 33.2 dB-A.
  • Featuring high tensile strength and low thermal expansion coefficient materials, the fan blade is built with special liquid crystal polymer (LCP), a compound which minimizes vibration when the fan is operating at full speed.
  • The TOUGHFAN’s center is constructed with a full steel motor hub providing enhanced stability and durability.
  • The 2nd generation hydraulic bearing incorporates a new shaft design with inside etches allowing preservation of lubricant on both sides whilst reducing noise during operation. Lowering audible levels and extending lifespan.
  • The in-mold injection anti-vibration rubber pads dampen the vibration of the fan allowing the fan to spin at higher levels without compromising noise levels. The fan is designed with 80% coverage for all corners, maintaining low noise levels when in operation.



  • Started Voltage: 9.0 V
  • Rated Current: 0.12 A
  • Rated Voltage: 12 V
  • Power Input: 1.44 W
  • Bearing Type: Hydraulic Bearing Gen.2
  • Life Expectation: 40,000 hrs,25°C
  • Connector: 4 PIN PWM


Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

P/N CL-F117-PL12WT-A
Fan Dimension 120 x 120 x 25 mm
Started Voltage 9.0 V
Rated Current 0.12 A
Rated Voltage 12 V
Power Input 1.44 W
Fan Speed PWM 500~2000 R.P.M
With L.N.C PWM 500~1500 R.P.M
Max. Air Pressure 2.41 mm-H2O
With L.N.C 1.2522 mm-H2O
Max Air Flow 58.35 CFM
With L.N.C 45.72 CFM
Noise 22.3 dB-A
With L.N.C 19 dB-A
Bearing Type Hydraulic Bearing Gen.2
Life Expectation 40,000 hrs,25°C
Connector 4 PIN PWM
Weight 212.5 g
