Manufacture: Thermaltake | Model: PS-SPD-0750NNSABA-1

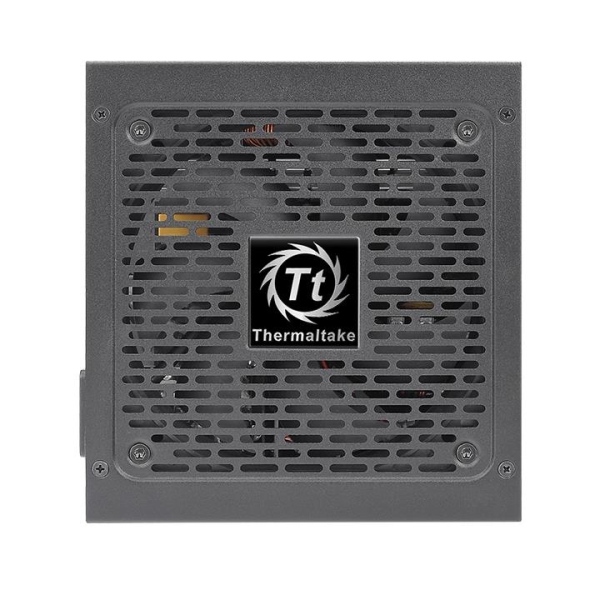

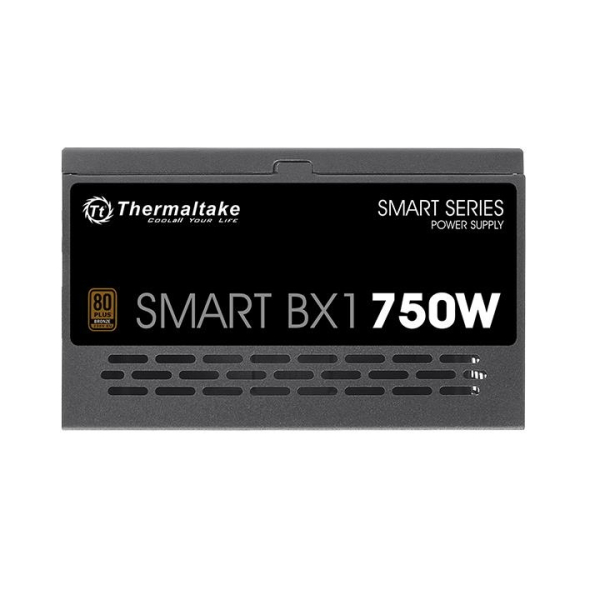

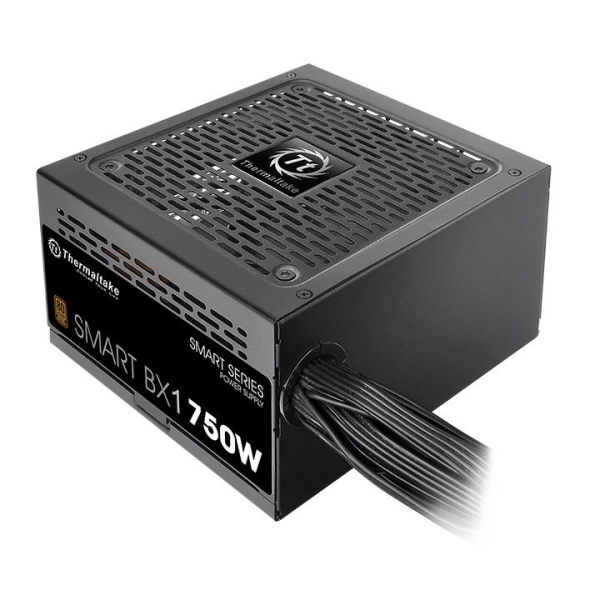

The 750W ATX power supply is a high-performance unit designed to deliver stable and efficient power to gaming and professional PC builds. With an 80 PLUS Bronze 230V EU certification, it ensures energy efficiency and reliable performance. The unit features an Active PFC design for enhanced power regulation and a 12cm hydraulic bearing fan for effective cooling. It supports a maximum output of 750W, with a peak capacity of 900W, making it suitable for demanding workloads. Additionally, it includes four PCI-E 6+2PIN connectors for GPU compatibility.
| Watts | 750W |
|---|---|
| RGB Fan | No |
| Form Factor | ATX |
| Model | SPD-750AH2NKB-2 |
| Type | ATX 12V v2.3 and EPS v2.92 |
| Max. Output Capacity | 750W |
| Peak Output Capacity | 900W |
| Color | Black |
| Dimension (W x H x D) | 150mm(W) x 86mm(H) x 140mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | > 16msec at 70% of full load |
| Input Current | 10A max. |
| Input Frequency Range | 50Hz |
| Input Voltage | 230V~ |
| Operating Temperature | 5°C to +40°C |
| Operating Humidity | 20% to 85%, non-condensing |
| Storage Temperature | -40°C to +55°C |
| Storage Humidity | 10% to 95%, non-condensing |
| Cooling System | 12cm Hydraulic bearing fan |
| Efficiency | Meet 80 PLUS® Bronze 230V EU certified |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE, CB, TUV, EAC, RCM |
| PCI-E 6+2PIN | 4 |
