Manufacture: Thermaltake | Model: PS-SPD-0550MNFABA-1

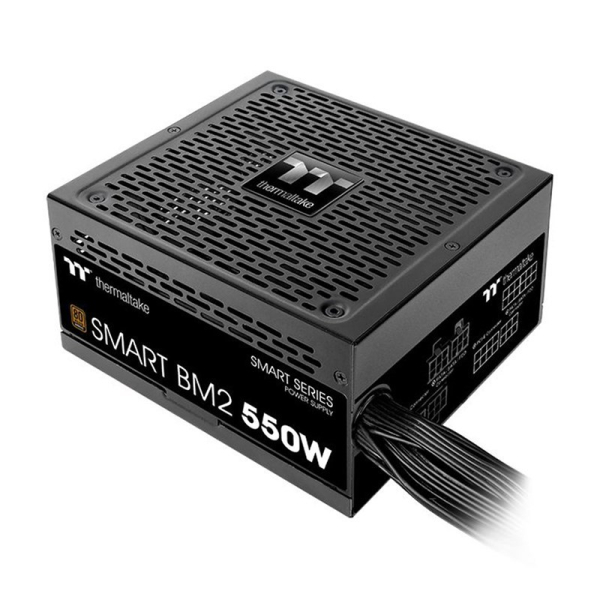

The 550W ATX 12V v2.4 and EPS v2.92 power supply is a reliable and efficient choice for mid-range computing needs. It delivers 550W of continuous power with a peak output of 660W, ensuring stable performance for demanding applications. Featuring an 80 PLUS Bronze certification, it provides energy efficiency while minimizing heat and power consumption. This PSU is designed with an advanced 140mm cooling fan running at 2300 RPM (±10%), keeping temperatures in check. With two PCI-E 6+2PIN connectors, it supports moderate GPU configurations, making it suitable for gaming, workstation, and general PC builds.
| Watts | 550W |
|---|---|
| RGB Fan | No |
| Type | ATX 12V v2.4 and EPS v2.92 |
| Max. Output Capacity | 550W |
| Peak Output Capacity | 660W |
| Color | Black |
| Dimension (W x H x D) | 150mm(W) x 86mm(H) x 160mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | > 12msec at 80% of full load at 230Vac input |
| Input Current | 8A max. |
| Input Frequency Range | 47Hz - 63Hz |
| Input Voltage | 100V - 240V~ |
| Operating Temperature | 0°C to +40°C |
| Operating Humidity | 20% to 90%, non-condensing |
| Storage Temperature | -20°C to +70°C |
| Storage Humidity | 5% to 95%, non-condensing |

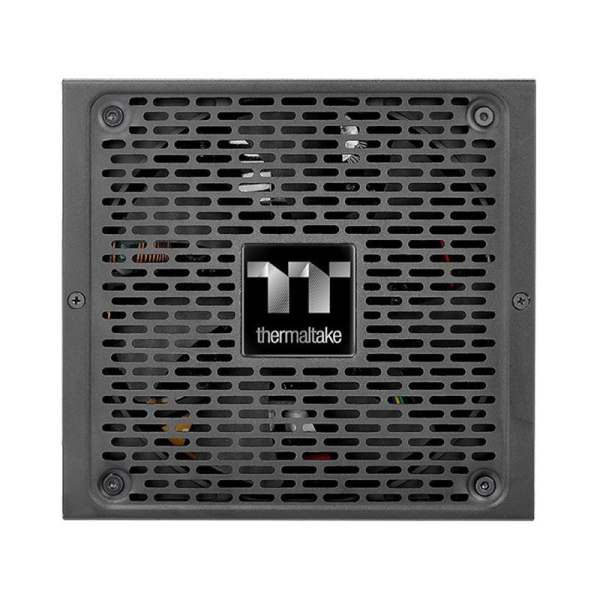

| Cooling System | 140mm Fan: 2300 R.P.M. ± 10% |
| Efficiency | Meet 80 PLUS® Bronze at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | OVP / OCP / cTUVus / TUV / CE / FCC / S-mark / EAC / BSMI / C-TICK / CCC |

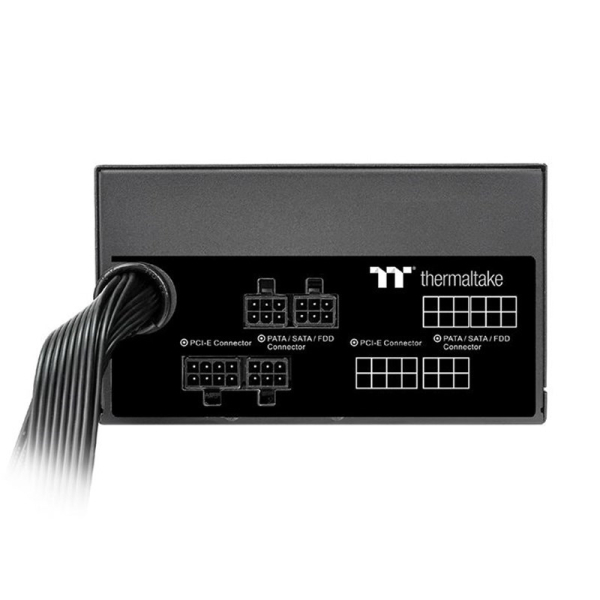

| PCI-E 6+2PIN | 2 |
