Name: Thermaltake 750W Toughpower GF1 80+ Gold Power Supply
Brand: Thermaltake
SKU: PS-TPD-0750FNFAGA-1
Price: 169.40 AUD
Availability: OutOfStock

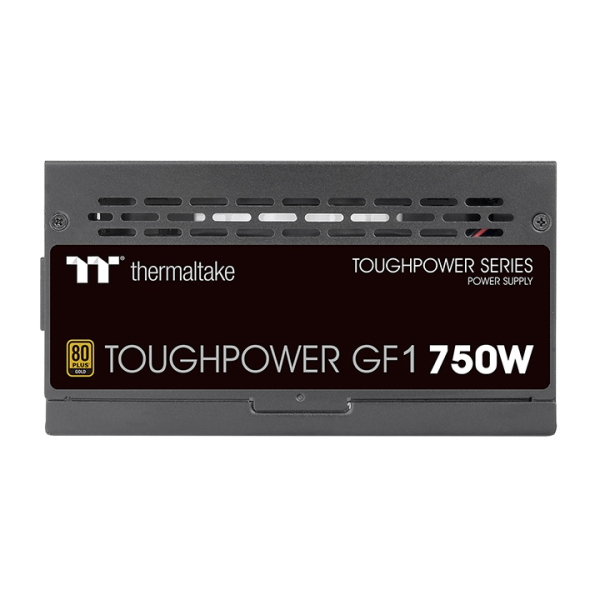

Thermaltake 750W Toughpower GF1 80+ Gold Power Supply

Sku: PS-TPD-0750FNFAGA-1

Brand: Thermaltake

Category: Power Supplies

$169.40

Shipping Information

Availability: On Order

On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.

Shipping Calculator

Find

750W ATX power supply with Active PFC, 80 PLUS Gold certification, 14cm hydraulic bearing fan, and multiple protections (OCP, OVP, UVP, OPP, SCP, OTP). Features PCI-E 6+2PIN connectors.

We Accept

Description

Manufacture: Thermaltake | Model: PS-TPD-0750FNFAGA-1

The 750W ATX power supply delivers high efficiency and reliable performance for gaming and professional PC builds. With an 80 PLUS Gold certification, it ensures optimized energy efficiency and stable power output. The unit features an Active PFC design, a robust cooling system with a 14cm hydraulic bearing fan, and comprehensive protection mechanisms, including OCP, OVP, UVP, OPP, SCP, and OTP. Its durable design, high peak output of 900W, and four PCI-E 6+2PIN connectors make it ideal for high-performance setups.

Key Features:

750W continuous power output with a peak capacity of 900W
ATX form factor with compact dimensions: 150mm(W) x 86mm(H) x 160mm(D)
80 PLUS Gold certification for high energy efficiency
Active PFC for stable and efficient power regulation

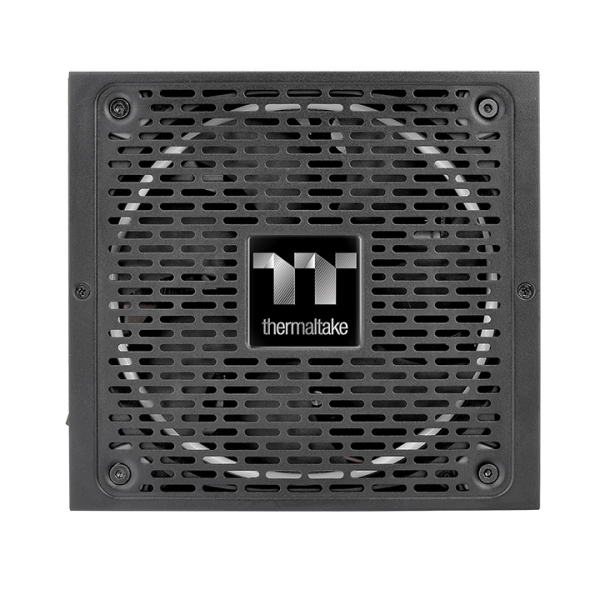

14cm hydraulic bearing cooling fan for enhanced thermal performance
Power Good Signal: 100-500 msec
Hold Up Time: >16ms at 100% load
Input voltage range: 100V – 240V~, frequency: 50Hz - 60Hz
Operating temperature range: 0°C to +50°C
MTBF of 120,000 hours for long-lasting reliability
Comprehensive safety certifications: CE, cTUVus, TÜV SÜD, FCC, BSMI, EAC

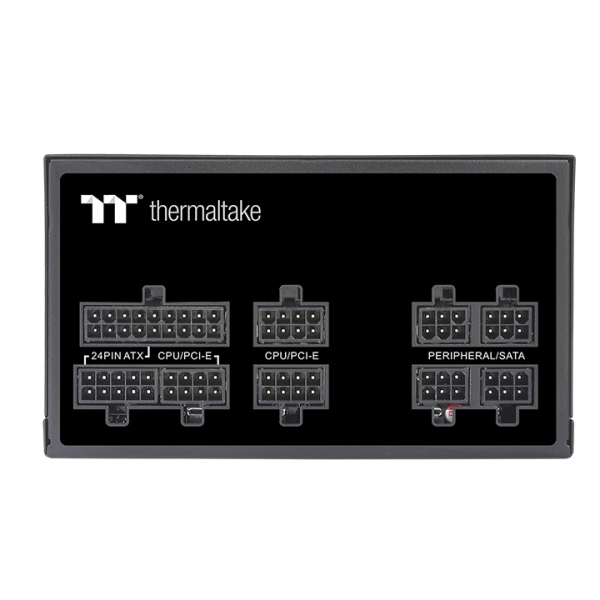

Four PCI-E 6+2PIN connectors for high-end GPU support
Advanced protection features: OCP, OVP, UVP, OPP, SCP, OTP

Watts	750W
Model	TTP-750AH3FCG
Max. Output Capacity	750W
Peak Output Capacity	900W
Color	Black
Dimension (W x H x D)	150mm(W) x 86mm(H) x 160mm(D)
PFC (Power Factor Correction)	Active PFC
Power Good Signal	100-500 msec
Hold Up Time	> 16msec at 100% of full load
Input Current	10A
Input Frequency Range	50Hz - 60Hz
Input Voltage	100V – 240V~
Operating Temperature	0°C to +50°C
Operating Humidity	20% to 90%, non-condensing
Storage Temperature	-20°C to +70°C
Storage Humidity	5% to 95%, non-condensing
Cooling System	14cm hydraulic bearing fan
Efficiency	Meet 80 PLUS® Gold at 115Vac input
MTBF	120,000 hrs minimum
Safety Approval	CE/cTUVus/TÜV SÜD/FCC/BSMI/EAC
PCI-E 6+2PIN	4
Protection	OCP, OVP, UVP, OPP, SCP, OTP
