Manufacture: Thermaltake | Model: PS-TPD-0600NNFAGA-1

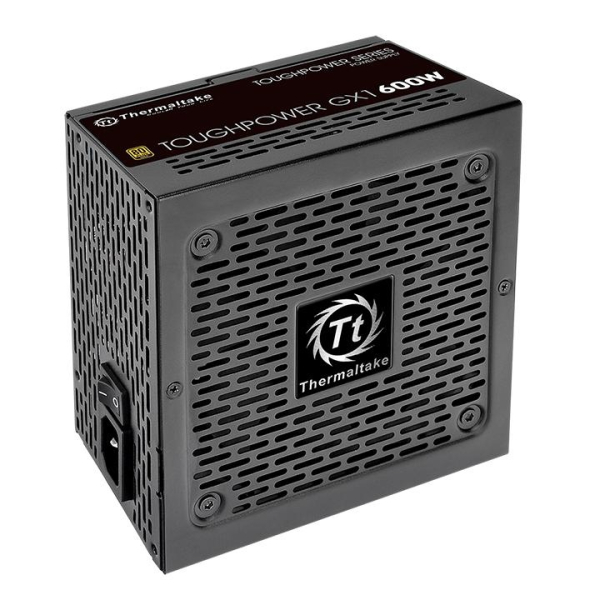

The 600W ATX power supply unit is designed to provide efficient and stable power delivery for gaming and workstation builds. With an 80 PLUS Gold certification, Active PFC, and a fluid dynamic bearing fan for superior cooling, this PSU ensures reliable performance and energy efficiency. Its compact design and multiple safety certifications make it a dependable choice for high-performance systems.
| Type | ATX 12V v2.4 and EPS v2.92 |
|---|---|
| Max. Output Capacity | 600W |
| Peak Output Capacity | 720W |
| Coldplate Material | Black |
| Dimension (W x H x D) | 150mm(W) x 86mm(H) x 140mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | > 12msec at 80% of full load |
| Input Current | 9A max. |
| Input Frequency Range | 47Hz - 63Hz |
| Input Voltage | 100V – 240V~ |
| Operating Temperature | 0°C to +40°C |
| Operating Humidity | 20% to 90%, non-condensing |
| Storage Temperature | -20°C to +70°C |
| Storage Humidity | 5% to 95%, non-condensing |
| Cooling System | 12cm fluid dynamic bearing fan |
| Efficiency | Meet 80 PLUS® Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/cTUVus/TUV/FCC/BSMI/EAC/S-Mark |
| PCI-E 6+2PIN | 2 |
