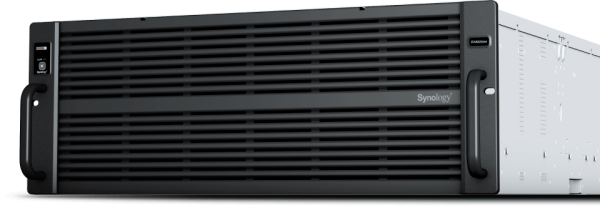

Synology RX6022sas 60-Bay 4U Diskless NAS Expansion Unit for HD6500

SKU : RX6022sas
Brand : Synology
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
Drive Bays: 60, Hot Swappable Drive*: Yes, Expansion Port: 2, Power Supply Unit / Adapter: 1200 W, AC Input Power Voltage: 200V to 240V AC.
Ask a question about this product

Estimated Shipping

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa


  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Synology | Model # RX6022sas


Synology's RX6022sas NAS Expansion unit helps maximise the potential of cold or warm storage deployment by adding 60 additional drives to an HD6500 server in minutes. With support for up to four expansion units, you can easily accommodate massive storage growth without incurring costly disruptions. Support for SAS multipathing allows you to achieve up to twice the performance when deploying multiple expansion units, while online storage expansion and comprehensive storage management tools in Synology DiskStation Manager (DSM) simplify initial configuration and management down the road.



  • Adds 60 additional 3.5" SAS HDD drive bays to an HD6500
  • Maximise resiliency against hardware malfunctions with SAS multipathing
  • Modular design for drive trays and system fans for easy and quick replacement
  • Plug-and-play deployment minimises downtime when expanding storage infrastructure



  • Drive Bays: 60
  • Hot Swappable Drive*: Yes
  • Expansion Port: 2
  • Power Supply Unit / Adapter: 1200 W
  • AC Input Power Voltage: 200V to 240V AC
  • Power Frequency: 50/60 Hz, Single Phase
  • Redundant Power Supply (for RP model): Yes


Manufacturer Warranty: 05 Years Limited Warranty

Technical Specifications

Supports creating volumes across different units HD6500
Drive Bays 60
Compatible Drive Type* (See all supported drives) 3.5" SAS HDD
Hot Swappable Drive* Yes
Expansion Port 2
Size (Height x Width x Depth) 176 mm x 438 mm x 985 mm
Size (Height x Width x Depth) (with server ears) 176 mm x 482 mm x 1020 mm
Weight 33.9 kg
Rack Installation Support* 4-post 19" rack (Synology Rail Kit - RKS-03)
Power Recovery Synchronized with the Synology RackStation
Power Supply Unit / Adapter 1200 W
AC Input Power Voltage 200V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption 811.8 W (Access)
231 W (HDD Hibernation)
British Thermal Unit 2768.24 BTU/hr (Access)
787.71 BTU/hr (HDD Hibernation)
Redundant Power Supply (for RP model) Yes
Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
System Fan 80 mm x 80 mm x 4 pcs
Easy Replacement System Fan Yes
Noise Level* 61.7 dB(A)
Certification UL
Optional Accessories 3.5" SAS HDD: HAS5300
