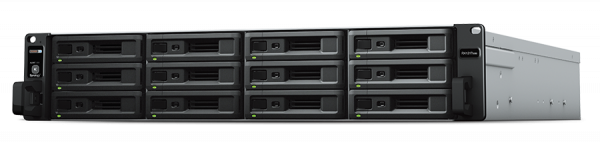

Synology Expansion Unit 12-Bay 3.5" Diskless Network Storage (RX1217SAS)

Sku: RX1217sas

Availability: Out of Stock

Brand: Synology

Category: Network Storage

$5,926.80

Device Type Storage enclosure, Rack-mountable - 2U, Bays 12 (total) / 12 (free) x hot-swap - 2.5" / 3.5" shared, Interfaces 1 x SAS (input), 1 x SAS (output), Cables Included 1 x mini SAS HD cable, FCC Class A certified, RoHS, BSMI Class A, Power Device 2 x internal power supply.



The Synology RX1217sas SAS/SATA Expansion Chassis provides twelve additional drive bays for your RackStation RS18017xs+ NAS enclosure, letting the host system hold more 2.5" and 3.5" storage drives.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacturer # Synology | Model # RX1217SAS



The Synology RX1217sas SAS/SATA Expansion Chassis provides twelve additional drive bays for your RackStation RS18017xs+ NAS enclosure, letting the host system hold more 2.5" and 3.5" storage drives. Each of the bays has a hot-swappable drive tray for quick installation of a user-supplied drive and supports storage drives that feature a SAS or SATA interface. To run your drives reliably, two 500W power supplies and four 60mm fans are on board.



The RX1217sas comes with a SAS input port that connects to a host system's optional FS3017 expansion card; and a SAS output on the RX1217sas is available for accessing a second optional expansion chassis. This two-port design enables you to expand the RackStation RS18017xs+ NAS enclosure's storage capacity with up to seven RX1217sas chassis. Furthermore, Synology includes a miniSAS expansion cable for connecting the RX1217sas to a RS18017xs+.



Features:

  • The RX1217sas provides 12 additional drive bays for a Synology FlashStation or RackStation
  • Supporting RX1217sas both 2.5" and 3.5" SAS/SATA drives
  • The RX1217sas is a flexible solution supporting on
  • The-fly volume expansion or serving as a local backup destination
  • Dual redundant power supplies ensure continuous service uptime.
  • Easily replace defective drives with hot-swappable drive trays.



Overview:

  • Cooling: 4 x 60 mm fans
  • Noise Level: 60.9 dBA
  • Power Supplies: 2 x 500 W
  • Voltage Input: 100 to 240 VAC, 50/60 Hz, single phase
  • Certification: FCC, CE, BSMI



Manufacturer Warranty: 05 Years Limited Warranty





Drive Bays 12 x 2.5"/3.5" SAS or SATA HDDs and SSDs
Hot swap support
Ports 1 x SAS input
1 x SAS output
Cooling 4 x 60 mm fans
Noise Level 60.9 dBA
Power Supplies 2 x 500 W
Voltage Input 100 to 240 VAC, 50/60 Hz, single phase
Power Consumption Access: 132.7 W
Hibernation: 89.3 W
Operating Temperature 40 to 95°F / 4 to 35°C
Storage Temperature -5 to 140°F / -21 to 60°C
Relative Humidity 5 to 95%
Green Compliance RoHS
Certification FCC, CE, BSMI
Dimensions (H x W x D) 3.5 x 19.0 x 28.5" / 88 x 482 x 724 mm
Weight 39.7 lb / 18 kg
