STARTECH Usb-c / Usb 3.0 Docking Station - DK30A2DH

SKU : DK30A2DH
Brand : StarTech
Availablity : In stock
Ships within 1 and 3 days
Startech DK30A2DH Usb-c / Usb 3.0 Docking Station, Bus USB-C, USB 3.0, Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, USB 3.0 - Backward compatible with USB 2.0/1.1, 10/100/1000 Mbps, Maximum Data Transfer Rate 5 Gbps (USB 3.0), 2 Gbps (Ethernet; Full-Duplex), Type and Rate USB 3.0 - 5 Gbit/s, Input 100 ~ 240 AC, Output 20V DC, Aluminum and Plastic, Wired.   The StarTech DK30A2DH is a dual-4K docking station that offers wide flexibility in setting up your workstation, working with both USB-C and USB-A port laptops, and supporting multiple combinations of Ultra HD 4K DisplayPort and HDMI monitors.
Ask a question about this product
$329.00

Estimated Shipping

Delivery when available

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Startech | Model # DK30A2DH

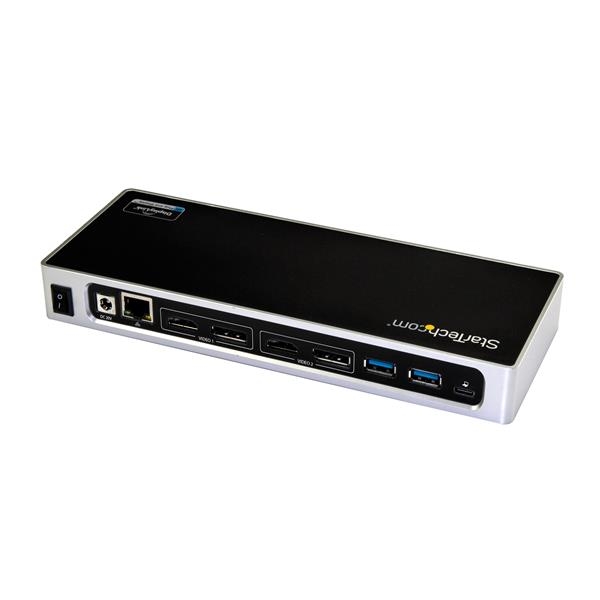

The StarTech DK30A2DH is a dual-4K docking station that offers wide flexibility in setting up your workstation, working with both USB-C and USB-A port laptops, and supporting multiple combinations of Ultra HD 4K DisplayPort and HDMI monitors.



Ideal for highly detailed graphics applications, this dual-4K 60Hz docking station enhances your productivity by expanding the display capabilities of your laptop across two Ultra HD 4K monitors. The laptop docking station works with DisplayLink to support high-resolution monitors, enabling two full 4K 60Hz displays from a single USB connection.



Features:

  • DK30A2DH Connect your Mac or Windows laptop to dual-4K 60Hz monitors (2x DisplayPort, 2x HDMI, HDMI + DP)
  • DisplayLink certified DL 6950 chipset supports both USB-C and USBA port equipped PC laptops
  • Connect more USB devices with 6 x USB 3.0 (Type-A) ports
  • Add wired network connectivity with the Gigabit Ethernet RJ45 port
  • Multiple audio connections with separate 3.5 mm headphone and mic input audio jack ports.



Overview:

  • Product Type: Docking Station
  • 4K Support: Yes
  • Bus Type: USB-C, USB 3.0
  • Displays Supported: 2



Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

Product Type Docking Station
4K Support Yes
Bus Type USB-C, USB 3.0
Chipset ID DisplayLink - DL-6950, VIA/VLI - VL813
Displays Supported 2
Fast-Charge Port(s) No
Industry Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, USB 3.0 - Backward compatible with USB 2.0/1.1
Auto MDIX Yes
Compatible Networks 10/100/1000 Mbps
Full Duplex Support Yes
Maximum Data Transfer Rate 5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions Single display - DisplayPort - 4096 x 2160 @ 60Hz / 3840 x 2160 @ 60Hz
Single Display - HDMI - 4096 x 2160 @ 60Hz / 3840 x 2160 @ 60Hz
Dual displays
DisplayPort and HDMI - 4096 x 2160 @ 60Hz / 3840 x 2160 @ 60Hz
Type and Rate USB 3.0 - 5 Gbit/s
UASP Support Yes
Connector Type(s) - 2 - DisplayPort (20 pin) Female
2 HDMI (19 pin) Female
1 USB Type-C (24 pin) USB 3.0 (5Gbps) Female
1 RJ-45 Female
6 USB 3.1 USB Type-A (9 pin, Gen 1, 5 Gbps) Female
1 3.5 mm Mini-Jack (3 Position) Female
1 3.5 mm Mini-Jack (4 Position) Female
OS Compatibility Windows® 7, 8, 8.1, 10
macOS 10.11 - 10.12, 10.14
System and Cable Requirements A host laptop with an available USB-C port or a USB-A port
Center Tip Polarity Positive
Input Current 1 A
Input Voltage 100 ~ 240 AC
Output Current 2 A
Output Voltage 20V DC
Plug Type N
Power Consumption (In Watts) 40W
Power Source AC Adapter Included
Cable Length 6 in [152.4 mm]
Color Black & Silver
Enclosure Type Aluminum and Plastic
Product Height 1.1 in [28 mm]
Product Length 8.9 in [226 mm]
Product Weight 10.6 oz [301 g]
Product Width 3.4 in [87 mm]
Device Supported Notebook
Connectivity Technology Wired

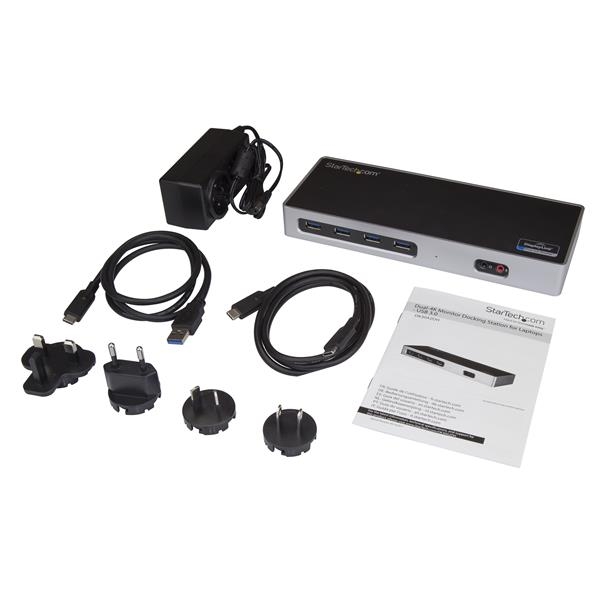

Included 1 x Docking station
1 x 1m USB-C to USB-A cable
1 x 1m USB-C to USB-C cable
1 x Universal power adapter (NA/JP, UK, EU, ANZ)
1 x Quick-start guide
