Sku: DKM30CHDPD
Brand: StarTech
Category: Docking Stations-Stands
Availability: In Stock
Ships in 1-2 days.
Pickup from Seven Hills in 1-2 days.
Shipping Calculator
Find
Interface: USB 3.2 Gen 1, LED Indicators: 1 - Power LED (White), Type and Rate: USB 3.2 Gen 1 - 5 Gbit/s, Supported Charging Outputs: BC 1.2 (1.5A), Compatible Networks: 10/100/1000 Mbps, 03 Years Limited Warranty, DKM30CHDPD.
We Accept
Manufacture # StarTech | Model # DKM30CHDPD

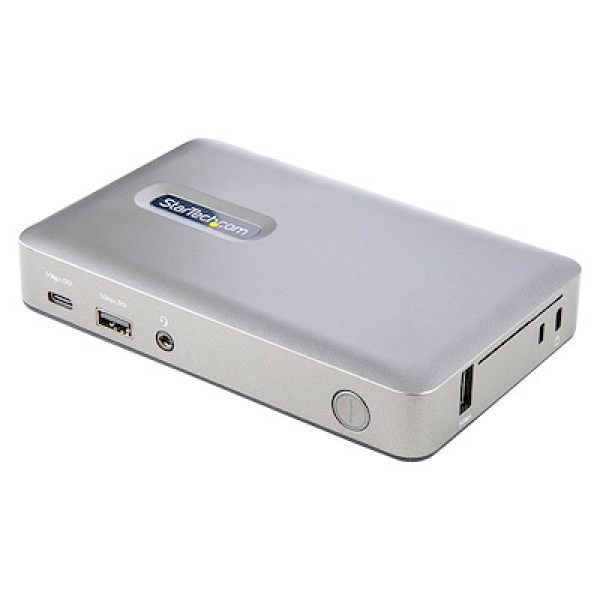

This USB-C docking station lets you use a single USB Type-C port on your laptop or tablet to add essential connectivity while charging your device via 65W USB Power Delivery 3.0. The dock enables you to connect your device to a single monitor of your choice between DisplayPort (4K 30Hz) or VGA (1080p 60Hz) video output. For peripheral connectivity the dock features three USB 3.1 Gen 1 (5Gbps) Type-A ports including a BC 1.2 port to power and charge your USB devices, a USB 3.1 Gen (5Gbps) Type-C port, a 3.5mm headset audio port, and Gigabit Ethernet.
Features:
Overview:
Manufacturer Warranty: 03 Years Limited Warranty
| External Ports | 1 - USB 3.2 Type-A (9 pin, Gen 1, 5Gbps) 3 - USB 3.2 Type-A (9 pin, Gen 1, 5Gbps) 1 - RJ-45 1 - DisplayPort (20 pin) 1 - VGA (15 pin, High Density D-Sub) 1 - 3.5mm Audio (4-Position, Speakers + Mic, CTIA) |
| Host Connectors | 1 - USB 3.2 Type-C (24 pin, Gen 1, 5Gbps) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 0~85% RH |
| 4K Support | Yes |
| Fast-Charge Port(s) | Yes |
| Displays Supported | 1 |
| Audio | Yes |
| Interface | USB 3.2 Gen 1 |
| Bus Type | USB 3.2 Gen 1 |
| Compatible Lock Slot | Kensington Standard Slot (K-Slot) Kensington Nano Slot |
| Chipset ID | Genesys Logic - GL3523-S Cmedia - CM6533 Realtek - RTL8153B Etron - EJ279S Parade - PS8338B ITE - IT6516BFN |
| LED Indicators | 1 - Power LED (White) |
| Shipping (Package) Weight | 2.9 lb [1.3 kg] |
| Package Height | 3.7 in [9.3 cm] |
| Package Length | 6.6 in [16.8 cm] |
| Package Width | 9.7 in [24.7 cm] |
| Maximum Digital Resolutions | DisplayPort: 4096x2160 30Hz VGA: 1920x1200 60Hz |
| Type and Rate | USB 3.2 Gen 1 - 5 Gbit/s |
| UASP Support | Yes |
| Supported Charging Outputs | BC 1.2 (1.5A) |
| Compatible Networks | 10/100/1000 Mbps |
| PXE | Yes |
| Full Duplex Support | Yes |
| Color | Space Gray |
| Product Height | 1.1 in [2.7 cm] |
| Weight of Product | 11.0 oz [313.0 g] |
| Product Length | 3.6 in [9.1 cm] |
| Product Width | 5.7 in [14.5 cm] |
| Material | Plastic |
| Power Source | AC Adapter Included |
| Power Delivery | 65W |
| Input Voltage | 110 ~ 120 AC |
| Input Current | 1.8 A |
| Output Voltage | 19.5V DC |
| Output Current | 6.15 A |
| Center Tip Polarity | Positive |
| Plug Type | M |
| Power Consumption (In Watts) | 119.9 |
| Included in Package | 1 - USB-C Dock 1 - 3.3 ft [1 m] Locking USB-C Host Cable 1 - Universal Power Adapter (NA/JP, ANZ) 1 - Quick-Start Guide |
