Startech USB-C Multiport Adapter HDMI/VGA 4K 60Hz 3Port 100W PD

SKU : DKT31CVHPD3
Brand : StarTech
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse
Host Connectors: 1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps), Displays Supported: 1, Interface: USB 3.2 Gen 2 (10 Gbps), Maximum Data Transfer Rate: 10Gbps, Compatible Networks: 10/100/1000 Mbps, Warranty: 03 Years, DKT31CVHPD3.
Ask a question about this product
$215.00

Estimated Shipping

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Startech | Model # DKT31CVHPD3

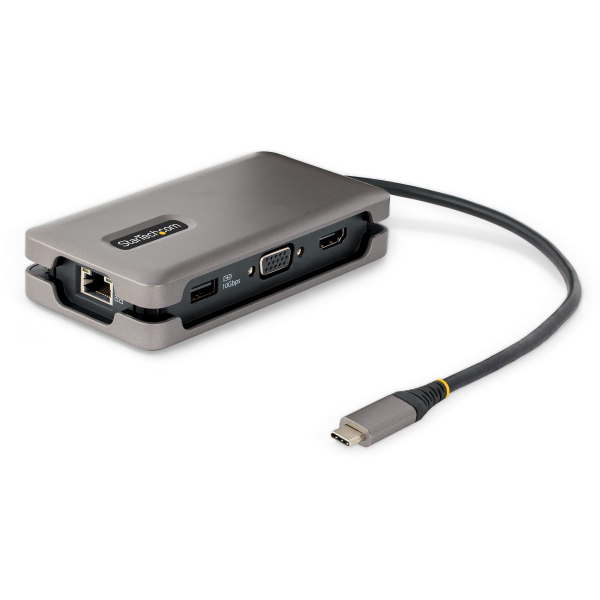

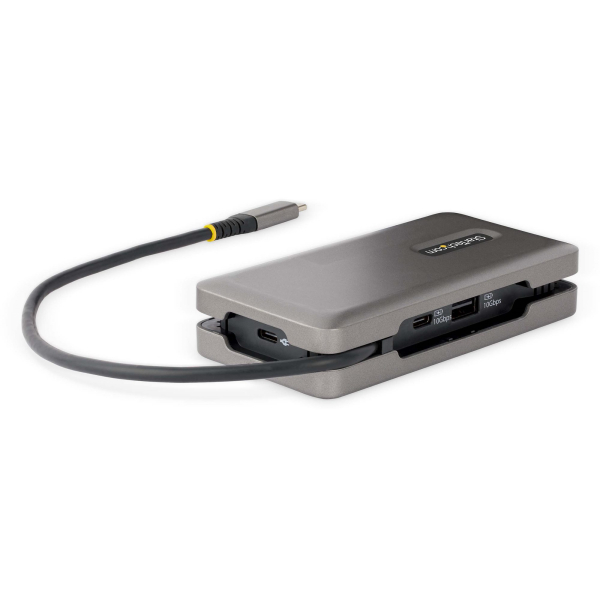

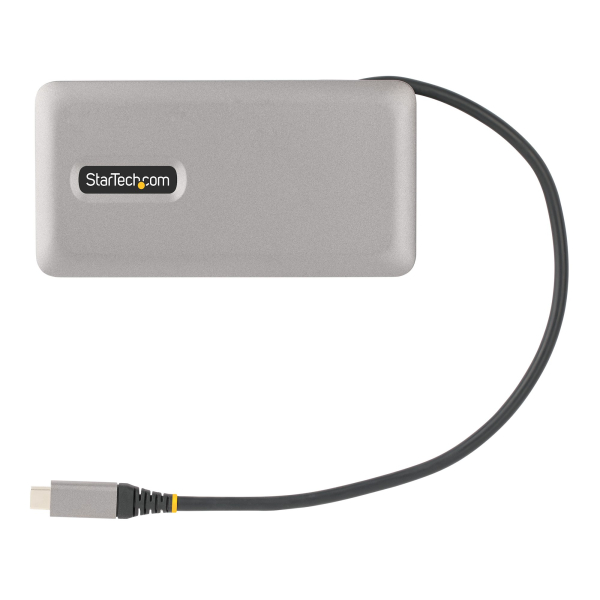

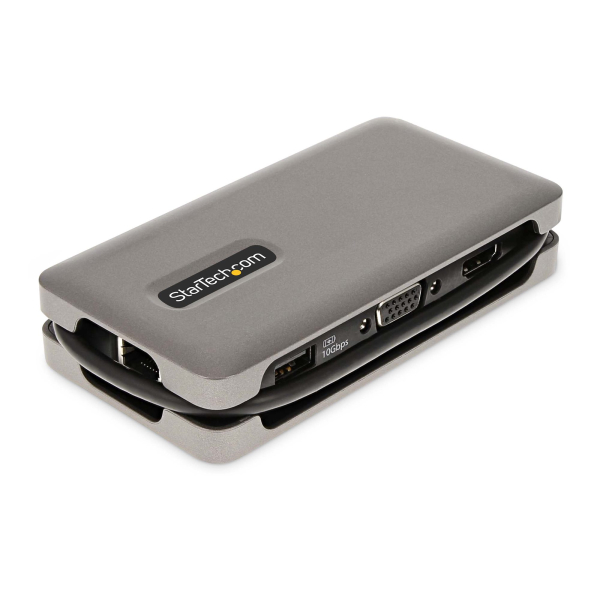

The Multiport Adapter features an extra-long attached 12.6in. (32cm) USB-C host cable. The Thermoplastic Elastomer (TPE) cable jacket is softer and more flexible than PVC jacketed cables. The extra-long cable reduces port/connector strain, particularly when laptops are placed on riser stands, or on 2-in-1 devices with raised USB-C ports, such as the Microsoft Surface. In addition, the Multiport Adapter also features an innovative wrap-around cable manager that facilitates tangle-free storage in a laptop bag.



Features:

  • Usb-c Mini Docking Station: USB-C to HDMI 2.0b (4K 60Hz) or VGA 1080p for connectivity to a monitor or display, 100W Power Delivery Pass-Through, 3-Port USB 3.2 (10Gbps) hub (2x USB-A, 1x USB-C); Gigabit Ethernet Port (PXE boot/WoL)
  • Cable Management: Thoughtful hideaway tethered design prevents cable clutter; The attached 1ft / 32cm long cable reduces strain on the USB-C laptop connector, while shorter cables common in other adapters create strain on the laptop USB-C connector
  • Reliable Performance: Prevent device dropouts, video flickering, and power overdraw common in other mini docks; Up to 100W PD Pass-Through with 84W for the laptop while reserving 16W for the adapter and attached devices
  • Universal Compatibility: Works with all major operating systems (Windows, ChromeOS, macOS, Linux), and all hardware platforms including Intel, Apple M1 / M2, and AMD; Works with USB-C, USB4, Thunderbolt 3 & 4



Overview:

  • Host Connectors: 1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)
  • Displays Supported: 1
  • Interface: USB 3.2 Gen 2 (10 Gbps)
  • Maximum Data Transfer Rate: 10Gbps
  • Compatible Networks: 10/100/1000 Mbps



Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

Connector(s) :-
External Ports 1 - HDMI (19 pin)
1 - VGA (15 pin, High Density D-Sub)

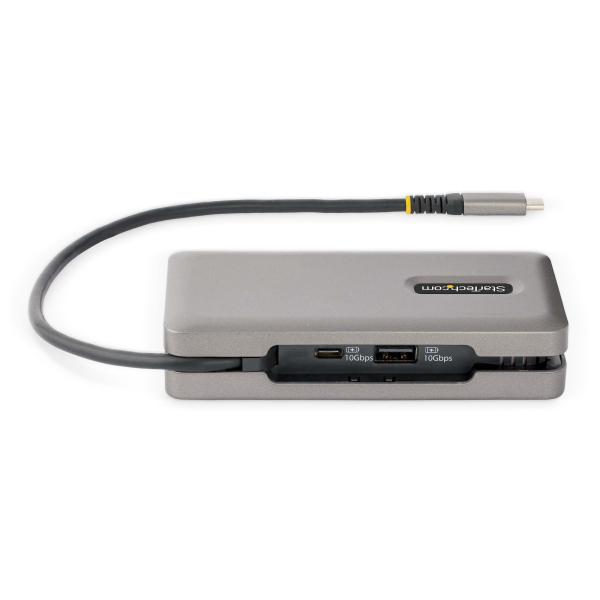

2 - USB 3.2 Type-A (9 pin, Gen 2, 10Gbps)
1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)

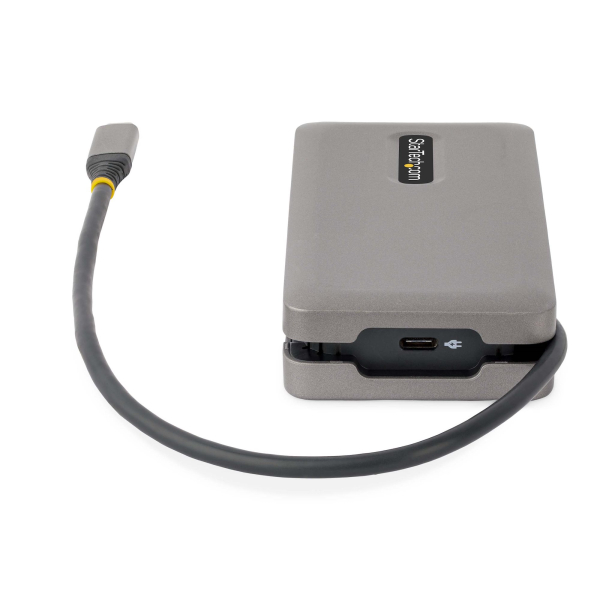

1 - USB Type-C (24 pin) USB Power Delivery Only

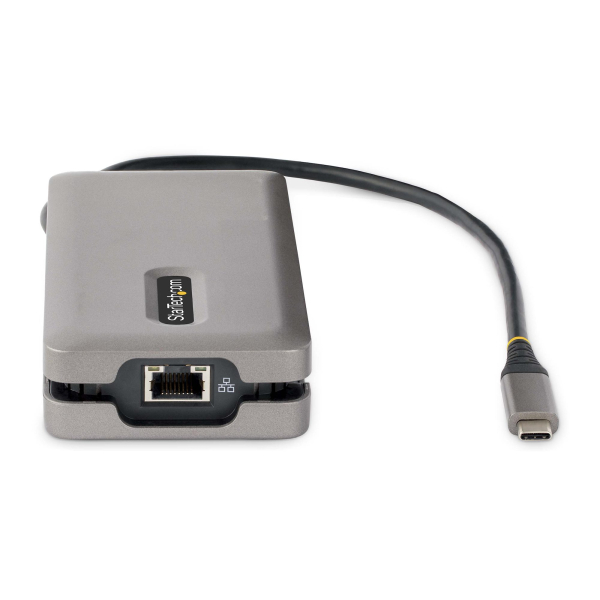

1 - RJ-45
Host Connectors 1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)
Environmental :-
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -20°C to 55°C (-4°F to 158°F)
Humidity 0% to 85% (non-condensing)
Hardware :-
4K Support Yes
Fast-Charge Port(s) No
Displays Supported 1
Interface USB 3.2 Gen 2 (10 Gbps)
Bus Type USB-C
Industry Standards HDMI 2.0b
DisplayPort 1.4
Chipset ID Realtek - RTD2142
Realtek - RTL8153B
VIA - VL822-Q8
VIA - VL103
Indicators :-
LED Indicators 1 - Network Link Speed - Green (Network Operating at 1Gbps or 100Mbps), Off (Network Operating at 10Mbps or Lower)
1 - Network Link Status - Solid Amber (Link Detected), Flashing Amber (Link Activity), Off (No Link Detected)
Performance :-
Maximum Data Transfer Rate 10Gbps
Maximum Digital Resolutions HDMI: 4K (4096 × 2160) 60Hz
VGA: 1080p (1920 x 1200/1080) 60Hz
Type and Rate USB 3.2 Gen 2 - 10 Gbit/s
UASP Support Yes
Compatible Networks 10/100/1000 Mbps
PXE Yes
Full Duplex Support Yes
General Specifications Maximum Laptop Charging: 84W
Physical Characteristics :-
Color Space Gray
Product Length 4.9 in [12.4 cm]
Product Width 2.5 in [6.4 cm]
Product Height 1.0 in [2.5 cm]
Weight of Product 4.6 oz [130.0 g]
Material Plastic
Cable Length 12.6 in [32 cm]
Power :-
Power Source Bus Powered and Host USB-C Power Adapter
Power Delivery 100W
Power Consumption (In Watts) 16W
Software :-
OS Compatibility Windows 7, 8, 8.1, 10, 11
macOS 10.15, 11.0, 12.0, 13.0
Android
Linux Ubuntu 18.04, 20.04
ChromeOS
Special Notes / Requirements :-
System and Cable Requirements A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 3.0 and DP alt mode).
Note Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that the host's USB-C port supports USB Power Delivery and DP alt mode.
If the USB-C Host does not support USB Power Delivery, the PD Power Port will not supply power to the USB-C Host.
USB 3.2 Gen 2 (10Gbps) is also known as SuperSpeed USB 10Gbps, and USB 3.1 Gen 2 (10Gbps).
The host laptop may have specific charging requirements. For example, if the laptop requires exactly 60W of power and an adapter consumes some of the 60W, your laptop might not recognize that it is getting enough power. For information pertaining to Power Delivery capability, refer to the technical documents included with the host laptop.
What's in the Box :-
Included in Package 1 - USB-C Multiport Adapter
1 - Quick-Start Guide
