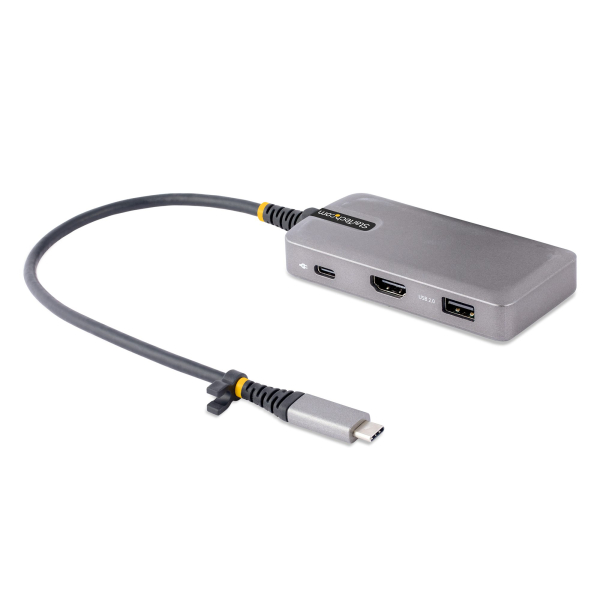

Startech USB-C Multiport Adapter 4K HDMI 3-Port Hub

Sku: 104B-USBC-MULTIPORT

Brand: StarTech

Category: USB HUBS

$68.20 $89.10 23% OFF

Shipping Information

Availability: In Stock

Ships in 1-3 days or pickup from Seven Hills in 3-5 days.

Shipping Calculator

Interface: USB 3.2 Gen 1 (5Gbps), Bus Type: USB-C, Maximum Data Transfer Rate: 5Gbps, Type and Rate: USB 3.2 Gen 1 - 5 Gbit/s, Color: Space Gray, 03 Years Limited Warranty, 104B-USBC-MULTIPORT.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture # Startech | Model # 104B-USBC-MULTIPORT



The USB-C dock converts a USB-C laptop or tablet, such as a Chromebook, Dell XPS, or a MacBook, into a workstation. The adapter connects to your host computer's USB-C, USB4, or Thunderbolt 3/4 port. It features one HDMI video output, and a 3-Port USB Hub (1x USB 3.2 Gen 1 5Gpbs, 2x USB 2.0 480Mbps). Connect a laptop USB-C power supply to the dedicated USB Power Delivery (PD) 3.0 port, located on the Multiport Adapter, to charge the laptop. The Multiport Adapter features an extra-long built-in 12-inch (30 cm) USB-C host cable.


Features:

  • 5-in-1 Multiport Adapter: Portable USB-C travel dock supports UHD 4K 60Hz HDMI 2.0b (HDR10) video via DP 1.4 Alt Mode for connecting monitor/display, 3-port USB-A hub (2x USB 3.2 Gen 1 5Gbps), 100W USB-C Power Delivery Pass-Through
  • Reliable Performance: Port Replicator with 100W PD Pass-Through; 14W reserved for adapter (when using one or all ports) & up to 86W available for host laptop charging; Prevents device dropouts, video flickering, and/or power overdraw common in other hubs
  • Usb Ports With Dedicated Power: Two downstream USB-A ports support USB 3.2 Gen 1 (5Gbps) and with a USB-C power adapter connected, each port provides 4.5W (5V/0.9A) of dedicated Power, ideal for connecting USB devices that require a consistent power draw
  • Reliable Performance: 100W Power Delivery Pass-Through with 14W reserved for adapter (when using one or all ports) and up to 86W available for host laptop charging; Prevents device dropouts, video flickering, and/or power overdraw common in other hubs
  • Universal Compatibility: USB-C Hub/Dock supports Windows, macOS; WWCB certified for compatibility with all Chromebooks; Works with USB-C, TB3 & TB4 host computers; Auto firmware updates through ChromeOS for max performance, compatibility & security


Overview:

  • Interface: USB 3.2 Gen 1 (5Gbps)
  • Bus Type: USB-C
  • Maximum Data Transfer Rate: 5Gbps
  • Type and Rate: USB 3.2 Gen 1 - 5 Gbit/s
  • Color: Space Gray



Manufacturer Warranty: 03 Years Limited Warranty

Connectors External Ports: 1 - HDMI (19 pin)
1 - USB 3.2 Type-A (9 pin, Gen 1, 5Gbps)
2 - USB 2.0 Type-A (4 pin, 480Mbps)
1 - USB Type-C (24 pin) USB Power Delivery Only
Host Connectors 1 - USB 3.2 Type-C (24 pin, Gen 1, 5Gbps)
Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -25°C to 65°C (-13°F to 149°F)
Humidity 0~95% RH (Non-condensing)
4K Support Yes
Fast-Charge Port(s) No
Displays Supported 1
Interface USB 3.2 Gen 1 (5Gbps)
Bus Type USB-C
Industry Standards HDMI 2.0b
USB 3.2 Gen 1 (5Gbps)
USB Power Delivery Specification Rev. 3.0
Certified Works with ChromeBook (WWCB)
Chipset ID Analogix - ANX7327
Analogix - ANX7518
VIA - VL817-Q7
Maximum Data Transfer Rate 5Gbps
Maximum Digital Resolutions Up to 4K (4096x2160) 60Hz
Type and Rate USB 3.2 Gen 1 - 5 Gbit/s
UASP Support Yes
General Specifications Maximum Laptop Charging: 86W
Color Space Gray
Product Length 3.9 in [10.0 cm]
Product Width 1.9 in [4.8 cm]
Product Height 0.6 in [1.6 cm]
Weight of Product 3.7 oz [105.0 g]
Material Plastic
Cable Length 13.8 in [35 cm]
Power Source Bus Powered and Host USB-C Power Adapter
Power Delivery 100W
Power Consumption (In Watts) 14W
OS Compatibility Windows 10, 11
macOS 10.15, 11.0, 12.0, 13.0
Android
Linux Ubuntu 18.04, 20.04
ChromeOS (Certified Works with Chromebook)
Note A host device with an available USB-C port (to ensure full adapter functionality, the host device's USB-C port must support USB Power Delivery 2.0 and DP alt mode). Optional: USB-C power adapter (for example, your laptop's USB-C based power adapter). Note Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery and DP alt mode. If the USB-C Host does not support USB Power Delivery, the PD Power Port will not supply power to the USB-C Host. A 4K-capable display is required to achieve UHD resolution (4K is also known as 4K x 2K). USB 3.2 Gen 1 (5Gbps) is also known as USB 3.1 Gen 1 (5Gbps) and USB 3.0 (5Gbps). Your laptop might have specific charging requirements. For example, if your laptop requires exactly 60W of power and an adapter consumes some of the 60W, your laptop might not recognize that it is getting enough power. For more information about Power Delivery, refer to the manufacturer of your hardware.
Included in Package 1 - USB-C Multiport Adapter
1 - Quick-Start Guide
