Sku: SDOCKU313
Brand: StarTech
Category: Enclosures
Availability: On Order
On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.
Shipping Calculator
Find

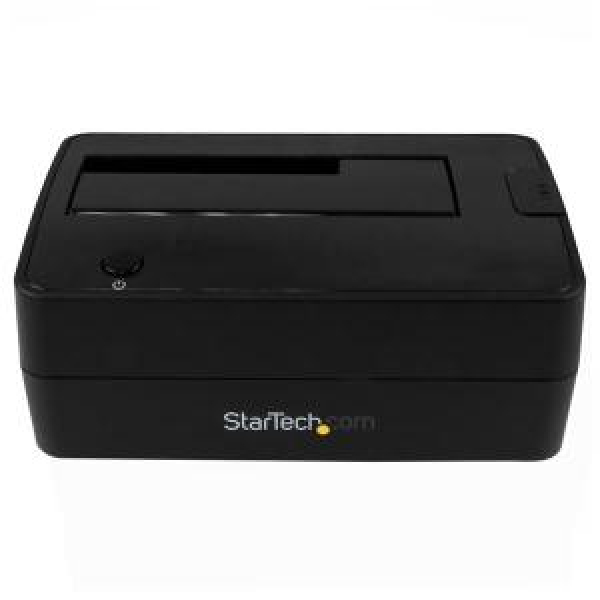

Startech Usb 3.1 Gen 2 (10gbps) Single-bay Dock SDOCKU313, 1 - Drive Connectors: SATA Data & Power Combo (7+15 pin), 1 - Host Connectors: USB 3.1 USB Type-B (9 pin, Gen 2, 10 Gbps), Interface: USB 3.1 Gen 2, Bus Type: USB 3.1 Gen 2, Number of Drives: 1, Drive Size: 2.5in & 3.5in, Compatible Drive Types: SATA, Drive Installation: Removable, Number of 2.5 inch bays: 2, Chipset ID: ASMedia - ASM1351
USB 3.1 Gen 2 gives you greater bandwidth and speed with file transfer rates of up to 10 Gbps - twice the speed of USB 3.0 (USB 3.1 Gen 1) technology. It lets you leverage the high performance of the latest SSDs and hard drives.
We Accept
Manufacture # Startech | Model # SDOCKU313
USB 3.1 Gen 2 gives you greater bandwidth and speed with file transfer rates of up to 10 Gbps - twice the speed of USB 3.0 (USB 3.1 Gen 1) technology. It lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers. It’s never been easier to dock and swap drives from your desktop computer or laptop. Simply insert your drives into the top loading slot, with no tools or trays required. The HDD ejection button allows fast and simple drive removal.
The docking station comes with a USB Type-A to B cable, providing backward compatibility with your existing USB 3.0, 2.0 and 1.x devices. It also supports UASP for enhanced performance.
Features:
Overview:
Manufacturer Warranty: 02 Years Limited Warranty
| Warranty | 2 Years |
| 1 - Drive Connectors | SATA Data & Power Combo (7+15 pin) |
| 1 - Host Connectors | USB 3.1 USB Type-B (9 pin, Gen 2, 10 Gbps) |
| Operating Temperature | 5°C to 35°C (35°F to 95°F) |
| Storage Temperature | -20°C to 50°C (-4°F to 122°F) |
| Humidity | 20% ~ 80% RH |
| Interface | USB 3.1 Gen 2 |
| Bus Type | USB 3.1 Gen 2 |
| Number of Drives | 1 |
| Drive Size | 2.5in & 3.5in |
| Compatible Drive Types | SATA |
| Drive Installation | Removable |
| Number of 2.5 inch bays | 2 |
| Fan(s) | No |
| Chipset ID | ASMedia - ASM1351 |
| 1 - LED Indicators | Power & Activity |
| Package Height | 17.1 cm [6.7 in] |
| Package Length | 91 mm [3.6 in] |
| Shipping (Package) Weight | 758 g [26.8 oz] |
| Package Width | 16.3 cm [6.4 in] |
| Maximum Data Transfer Rate | 10 Gbps |
| Type and Rate | USB 3.1 Gen 2 - 10 Gbit/s |
| UASP Support | Yes |
| 4Kn Support | Yes |
| Type and Rate | SATA III (6 Gbps) |
| TRIM Support | Yes |
| Max Drive Capacity | Currently tested with hard drives up to 6TB at 7200 RPM |
| Weight of Product | 392 g [13.8 oz] |
| Color | Black |
| Material | Plastic |
| Product Length | 14.5 cm [5.7 in] |
| Product Width | 92.7 mm [3.6 in] |
| Product Height | 63.6 mm [2.5 in] |
| Power Source | AC Adapter Included |
| Input Voltage | 100 - 240 AC |
| Input Current | 0.6 |
| Output Voltage | 12V DC |
| Output Current | 2A |
| Center Tip Polarity | Positive |
| Plug Type | M |
| Power Consumption (In Watts) | 24 |
| OS Compatibility | OS independent; No software or drivers required |
| Note | Windows 7 and earlier Windows versions do not support TRIM with USB to SATA devices. |
| 1 - Included in Package | USB 3.1 HDD Dock |
