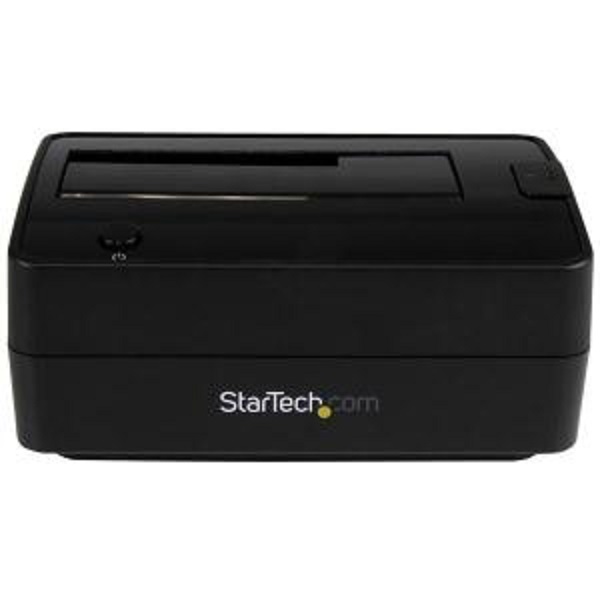

Startech Usb 3.1 (10gbps) / Esata Single-bay Dock (SDOCKU313E)

SKU : SDOCKU313E
Brand : StarTech
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse
Startech SDOCKU313E, Interface & Bus Type USB 3.1 (USB 3.1 Gen 2) & eSATA, SATA, Drive Connectors 1 x SATA Data & Power Combo (7+15 pin) Receptacle, Host 1 x USB 3.1 USB Type-B (9-pin, Gen 2, 10 Gb/s) Female 1 x eSATA (7-pin, Data) Female, OS independent; No software or drivers required, LED Indicators 1 x Power & Activity.   Ideal for IT professionals, the docking station lets you access a SATA solid-state drive or hard drive quickly, for drive imaging, data recovery, and backups. You can connect through either USB 3.1 Gen 2 or eSATA, and take advantage of the high performance.
Ask a question about this product
$129.00

Estimated Shipping

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Startech  | Model # SDOCKU313E



Ideal for IT professionals, the docking station lets you access a SATA solid-state drive or hard drive quickly, for drive imaging, data recovery, and backups. You can connect through either USB 3.1 Gen 2 or eSATA, and take advantage of the high performance of the latest SSDs and HDDs.



The dock's vertical drive insertion makes it easy to dock and swap drives from your desktop computer or laptop. You simply insert your SSD or HDD into the drive slot at the top of the docking station, with no tools or trays required. The HDD ejection button allows fast and simple drive removal.



The single-bay docking station comes with a USB Type-A to Type-C cable, for connecting to newer USB-C enabled devices. It also comes with a USB Type-A to Type-B cable, providing backward compatibility with your existing USB 3.0, 2.0 and 1.x devices. An eSATA cable is also included with the dock.



Features:

  • Connect and access a 2.5" or 3.5" SATA SDOCKU313E SSD/HDD over USB 3.1 Gen 2 or eSATA
  • Access drives at full speed with support for SATA I, II and III (up to 6Gbps)
  • Top-loading design with built-in ejection button for easy drive access
  • Tool-less and tray-less design
  • Supports SDOCKU313E large drive capacity of up to 6TB
  • USB Type-B to A cable included for backward compatibility with USB 3.0, 2.0 and 1.x
  • USB Type-B to C cable included for compatibility with USB-C enabled devices
  • UASP support for enhanced performance.



Overview:

  • Interface & Bus Type: USB 3.1 (USB 3.1 Gen 2) & eSATA
  • Chipset ID: ASMedia - ASM1351
  • Compatible Drive Types: SATA
  • Drive Installation: Removable
  • Drive Size: 2.5 and 3.5"
  • Fan: No



Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

Interface & Bus Type USB 3.1 (USB 3.1 Gen 2) & eSATA
Chipset ID ASMedia - ASM1351
Compatible Drive Types SATA
Drive Installation Removable
Drive Size 2.5 and 3.5"
Fan No
Number of Drives 1
Hot Swap Support Yes
TRIM Support Yes
Type and Rate USB 3.1 (USB 3.1 Gen 2) - 10 Gb/s
SATA III - 6 Gb/s
UASP Support Yes
Drive Connectors 1 x SATA Data & Power Combo (7+15 pin) Receptacle
Host Connectors 1 x USB 3.1 USB Type-B (9-pin, Gen 2, 10 Gb/s) Female
1 x eSATA (7-pin, Data) Female
OS Compatibility OS independent; No software or drivers required
LED Indicators 1 x Power & Activity
Center Tip Polarity Positive
Input Current 0.6 A
Input Voltage 110 to 240 VAC
Output Current 2.0 A
Output Voltage 12 VDC
Plug Type M
Power Consumption 24 W
Power Source AC Adapter
Humidity 20 to 80% RH
Operating Temperature 41 to 95°F / 5 to 35°C
Storage Temperature -4 to 122°F / -20 to 50°C
Color Black
Material Plastic
Dimensions 2.6 x 5.7 x 3.7" / 6.6 x 14.5 x 9.4 cm
Weight 14.5 oz / 410 g
Package Weight 2 lb
Box Dimensions (LxWxH) 6.7 x 6.4 x 3.7"
