Manufacture # Startech | Model # USB32VGAPRO

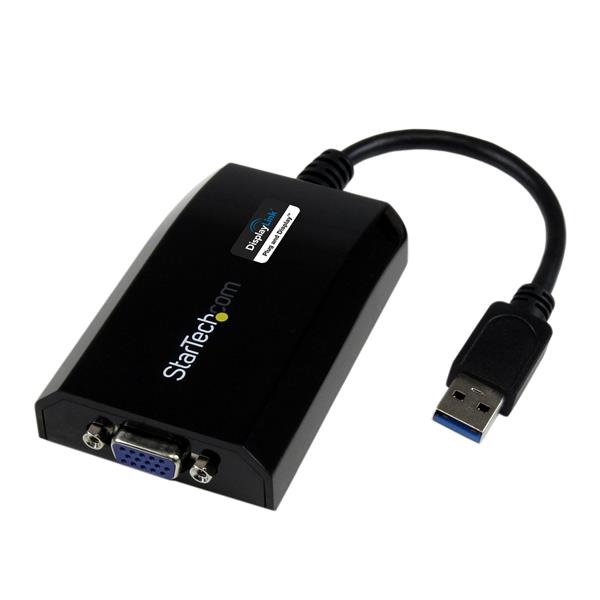

The USB32VGAPRO USB 3.0 to VGA Adapter turns an available USB 3.0 port on your desktop or laptop into a VGA output, with high resolution 1920x1200/1080p video support - a convenient external video solution that makes it easy to add multi-monitor capability to a USB 3.0-enabled Mac® or PC (optimal performance from USB 3.0, backward compatible with USB 2.0).
Features:
Overview:
Manufacturer Warranty: 02 Years Limited Warranty
| AV Input | USB 3.0 |
| AV Output | VGA |
| Chipset ID | DisplayLink - DL-3100N |
| Memory | 512MB |
| USB Pass-Through | No |
| General Specifications | This USB video adapter uses a DisplayLink family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a Trigger or Fresco family chipset. |
| Maximum Analog Resolutions | 1920x1200/1080p |
| Note | If using OS X 10.8, Apple update 10.8.3 must be installed before installing DisplayLink software. 10.8.3 fixes several serious OS X bugs exposed when DisplayLink software is installed. |
| Supported Resolutions | Widescreen(16/32 bit): 1920x1200, 1920x1080, 1680x1050, 1366x768, 1280x800, 1280x768, 1280x720 Standard(16/32 bit): 1600x1200, 1400x1050, 1280x1024, 1024x768, 800x600, 640X480 |
| Wide Screen Supported | Yes |
| Connector A | 1 - USB Type-A (9 pin) USB 3.0 (5 Gbps) Male Input |
| Connector B | 1 - VGA (15 pin, High Density D-Sub) Female Output |
| OS Compatibility | Windows® 2000, XP, Vista, 7, 8, 8.1, 10 macOS 10.6 - 10.12, 10.14 - 10.15 Ubuntu 14.04, 16.04, 18.04 Chrome OS™ v55+ |
| Note | This USB video adapter uses a DisplayLink® family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, avoid using devices with different family chipsets, such as Trigger or Fresco Logic® Connect a maximum of five USB video adapters on a single computer. Support for multiple adapters will vary depending upon your system resources This USB video adapter is not intended for graphical intensive applications, such as gaming |
| System and Cable Requirements | System Processor: Quad Core 2.4GHz (i5 recommended) System Memory: 4GB |
| Power Source | USB-Powered |
| Humidity | <85% RH Non-Condensing |
| Operating Temperature | 10°C to 40°C (50°F to 104°F) |
| Storage Temperature | -10°C to 80°C (14°F to 167°F) |
| Cable Length | 6.2 in [158.7 mm] |
| Color | Black |
| Material | Plastic |
| Product Height | 0.8 in [2 cm] |
| Product Length | 10 in [25.5 cm] |
| Product Width | 2.2 in [55 mm] |
| Weight of Product | 2.3 oz [64 g] |
| Package Height | 1.6 in [40 mm] |
| Package Length | 8.3 in [21.2 cm] |
| Package Width | 5.7 in [14.6 cm] |
| Shipping (Package) Weight | 5.6 oz [158 g] |
| Included in Package | 1 - USB 3.0 to VGA Video Adapter 1 - Driver/Software CD 1 - Instruction Manual |
