Manufacture: Startech | Model: DK30CH2DPPD
The Docking Station provides versatile connectivity for your devices, supporting multiple video outputs, high-speed data transfer, and fast charging. It is equipped with a range of connectors, including two DisplayPort, one HDMI, two USB Type-C, and one USB Type-A for various peripheral connections. This docking station can drive up to three displays, including 4K resolution on all video ports and even 5K resolution with two DisplayPort connections. With built-in Ethernet support and USB 3.0 speeds of up to 5 Gbps, it is an all-in-one solution for a clutter-free workspace.
| Warranty | 3 Years |

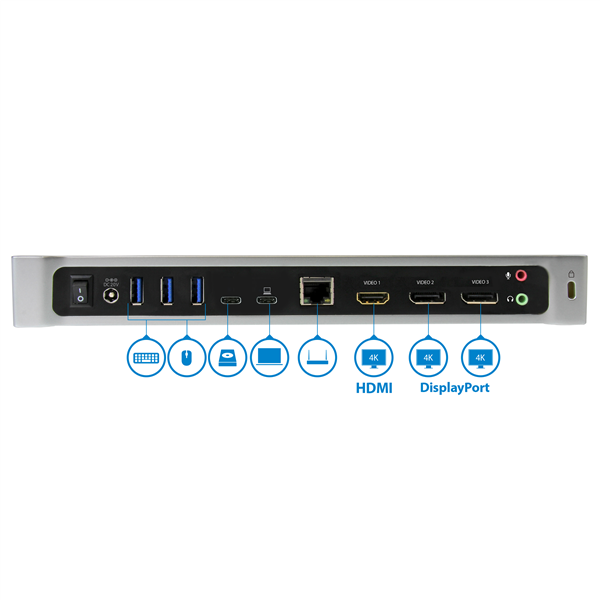

| Connector Type(s) | 2 - DisplayPort (20 pin) 1 - HDMI (19 pin) 2 - USB 3.2 Type-C (24 pin, Gen 1, 5Gbps) 1 - USB 3.2 Type-A (9 pin, Fast-Charge) 3 - USB Type-A (9 pin, 5 Gbps) 1 - RJ-45 1 - 3.5 mm Mini-Jack (4 Position) 2 - 3.5 mm Mini-Jack (3 Position) 1 - Security Lock Slot |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 0~95% RH |
| 4K Support | Yes |

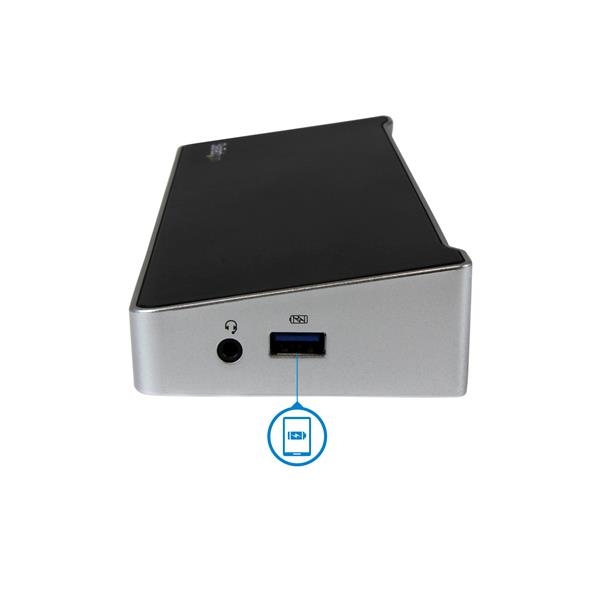

| Fast-Charge Port(s) | Yes |
| Displays Supported | 3 |
| Bus Type | USB-C |
| Compatible Lock Slot | Kensington Standard Slot (K-Slot) |
| Industry Standards | USB Power Delivery Specification Rev. 2.0 USB Battery Charging Specification Rev. 1.2 DisplayPort 1.2 IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0 and 1.1 |
| Chipset ID | DisplayLink - DL-6950 Genesys Logic - GL3523 Texas Instruments - TPS65982 Parade Technologies - PS176 |
| Shipping (Package) Weight | 3.1 lb [1.4 kg] |
| Package Quantity | 1 |
| Package Dimensions | Length: 6.5 in [16.5 cm] Width: 11.6 in [29.5 cm] Height: 2.9 in [7.3 cm] |
| Maximum Data Transfer Rate | 5 Gbps (USB 3.0), 2 Gbps (Ethernet; Full-Duplex) |
| Maximum Digital Resolutions | 1x HDMI (DP Alt Mode) - 4096 x 2160p @24Hz / 3840 x 2160p @30Hz 2x DisplayPort (DisplayLink) - 4096 x 2160p @60Hz / 3840 x 2160p @60Hz 1x 5K DisplayPort using 2 DP video ports - 5120 x 2880 @60Hz Lower resolutions are also supported. |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| UASP Support | Yes |
| Compatible Networks | 10/100/1000 Mbps |
| Auto MDIX | Yes |
| Full Duplex Support | Yes |
| Color | Black & Silver |
| Material | Plastic |
| Product Dimensions | Length: 10.6 in [27 cm] Width: 3.2 in [8.2 cm] Height: 1.3 in [3.4 cm] |
| Weight of Product | 13.6 oz [385 g] |
| Power Source | AC Adapter Included |
| Power Delivery | 60W |
| Input Voltage | 100 - 240 AC |
| Input Current | 2 A |
| Output Voltage | 20V DC |
| Output Current | 6 A |
| Center Tip Polarity | Positive |
| Plug Type | N |
| OS Compatibility | Windows® 7, 8, 8.1, 10, 11, 11 ARM macOS 10.9 - 10.12, 10.14 - 10.15, 11.0, 12.0, 13.0, 14.0, 15.0 Chrome OS™ v55+ Ubuntu 18.04, 20.04, 22.04, 24.04 |
| Special Notes / Requirements | Not all USB-C ports support the full functionality of the USB Type-C standard. 4K resolution is supported on all 3 video ports. If connected to a USB 2.0 host port, performance may be limited. USB 3.0 is also known as USB 3.1 Gen 1 (5Gbps). 5K resolution requires two DP video ports. DisplayLink docking stations support multiple displays on Apple's M1-based Macs. |
| System and Cable Requirements | USB-C enabled computer with an available USB Type-C port |
| Included in Package | 1 - Docking Station 1 - 3.3ft (1m) USB-C Cable 1 - Universal Power Adapter (NA/JP, ANZ) 1 - Instruction Manual 1 - Anti-slip Rubber Pads |
