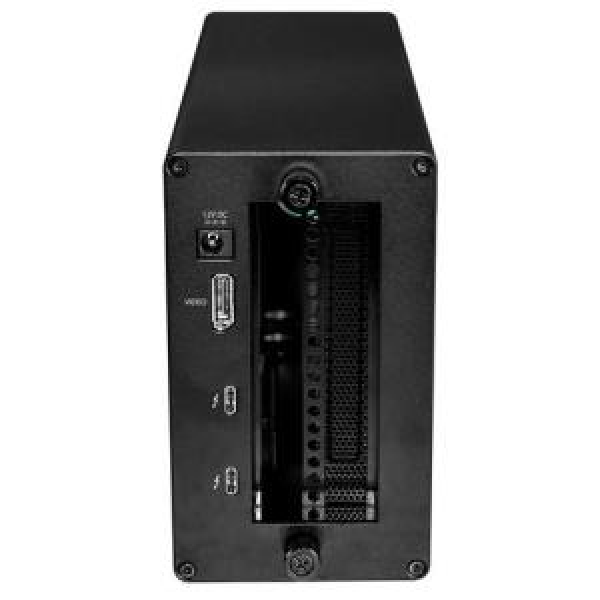

Startech Thunderbolt 3 Pcie Expansion Chassis TB31PCIEX16

Brand : STARTECH
SKU : TB31PCIEX16
Availablity : In stock

Free shipping free shipping

Startech Thunderbolt 3 Pcie Expansion Chassis TB31PCIEX16, Standard Profile, Sleeve Bearing, Fans 1 - 60 mm, Noise Level 24.55 dB, Port-3, Maximum Data Transfer Rate 40 Gbps (Thunderbolt 3), External Ports 2 - Thunderbolt™ 3 USB-C (24-pin) (40Gbps) Female, 1 - DisplayPort (20 pin) Female, Internal Ports 1 - PCI Express x16 Female, OS Compatibility Windows® 7, 8, 8.1, 10, macOS 10.12 - 10.15.




This Thunderbolt™3 PCIe expansion chassis lets you add a PCI Express card to your laptop or desktop computer, through an external Thunderbolt 3 connection.

$503.00

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Product Description

Manufacture # Startech | Model # TB31PCIEX16



This Thunderbolt™3 PCIe expansion chassis lets you add a PCI Express card to your laptop or desktop computer, through an external Thunderbolt 3 connection. The chassis also features a DisplayPort video output, so you can connect an additional monitor to your laptop, and supports Thunderbolt 3 daisy chaining, so you can expand your workstation even further.



Features:

  • Increased productivity with Thunderbolt 3 and TB31PCIEX16 up to 40Gbps bandwidth — twice
  • The speed of Thunderbolt 2 (20Gbps) and eight times faster than USB 3.0 (5Gbps)
  • Supports TB31PCIEX16 one 4K DisplayPort monitor
  • A second extended monitor display through the Thunderbolt 3 (USB-C) port



Overview:

  • Air Flow Rate: 14.06 CFM
  • Bus Type: Thunderbolt 3
  • Card Type: Standard Profile
  • Chipset ID: Intel - Alpine Ridge DSL6540
  • Fan Bearing Type: Sleeve Bearing



Manufacturer Warranty: 02 Years Limited Warranty



Technical Specifications

Air Flow Rate 14.06 CFM
Bus Type Thunderbolt 3
Card Type Standard Profile
Chipset ID Intel - Alpine Ridge DSL6540
Fan Bearing Type Sleeve Bearing
Fan(s) Yes
Fans 1 - 60 mm
Industry Standards Thunderbolt 3
Interface Thunderbolt
Noise Level 24.55 dB
Ports 3
Bandwidth 3.94 GB/s (x4 PCIe 3.0 )
Maximum Data Transfer Rate 40 Gbps (Thunderbolt 3)
Type and Rate Thunderbolt 3 - 40 Gbit/s
External Ports 2 - Thunderbolt™ 3 USB-C (24-pin) (40Gbps) Female
1 - DisplayPort (20 pin) Female
Internal Ports 1 - PCI Express x16 Female
OS Compatibility Windows® 7, 8, 8.1, 10
macOS 10.12 - 10.15
LED Indicators 1 - Power(Blue)
Center Tip Polarity Positive
Input Current 2A
Input Voltage 100 - 240 AC
Output Current 5.417A
Output Voltage 12V DC
Plug Type N
Power Consumption (In Watts) 65
Power Source AC Adapter Included
Humidity 20-80%RH
Operating Temperature 5°C to 35°C (41°F to 95°F)
Storage Temperature -20°C to 50°C (-4°F to 122°F)
Cable Length 19.7 in [500 mm]
Color Black
Material Aluminum and Steel
Product Height 3.2 in [8.2 cm]
Product Length 11 in [28 cm]
Product Width 5.6 in [14.2 cm]
Weight of Product 3.6 lb [1.6 kg]
Package Height 5.7 in [14.5 cm]
Package Length 14.2 in [36 cm]
Package Width 11.4 in [29 cm]
Shipping (Package) Weight 6.9 lb [3.1 kg]
Included in Package 1 - Thunderbolt 3 PCIe expansion box
1 - Thunderbolt 3 cable
4 - rubber feet
1 - universal power adapter (NA/JP, UK, EU, ANZ)
1 - quick-start guide
