Sku: TB3DKM2HDL
Brand: StarTech
Category: Docking Stations-Stands
Shipping Information
Availability: In Stock
Ships in 1-3 days or pickup from Seven Hills in 3-5 days.
Shipping Calculator
Find
Displays Supported: 2, 4K Support: Yes, Interface: Thunderbolt 3, Maximum Digital Resolutions: 4K 60Hz, Warranty: 03 Years, TB3DKM2HDL.
100% Guarantee Safe Checkout
Description
Manufacture # | Model # TB3DKM2HDL

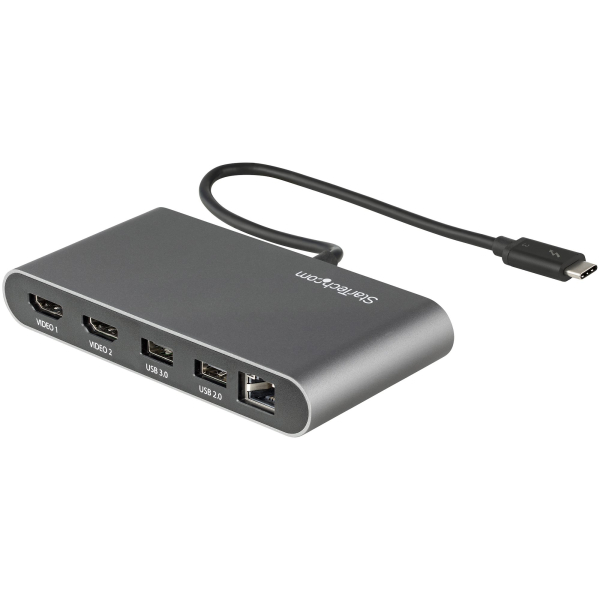

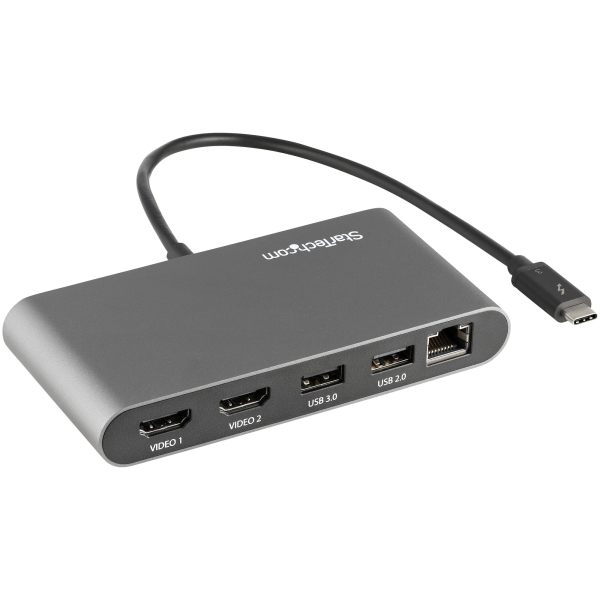

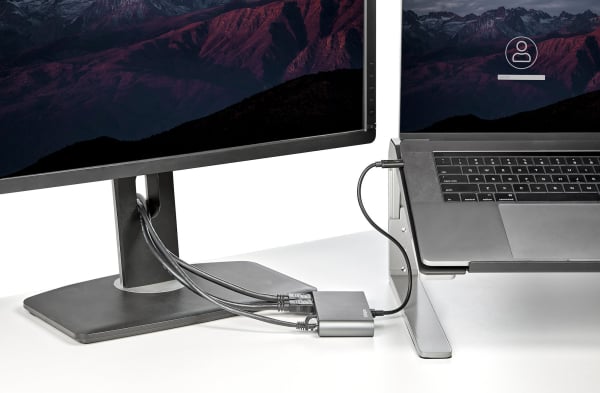

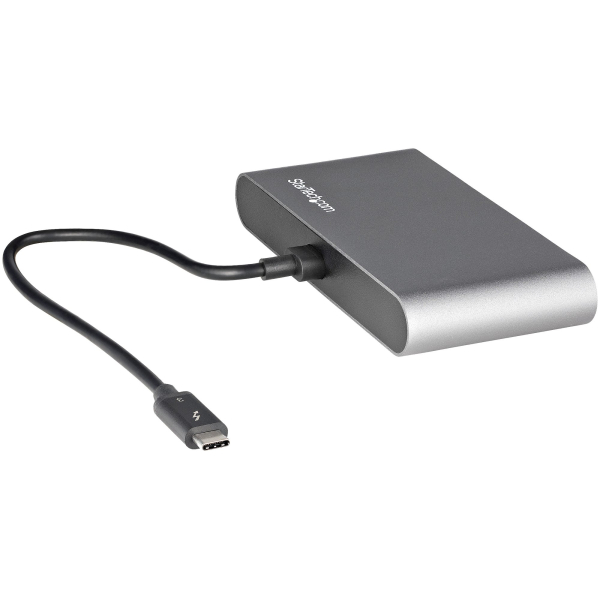

This certified Thunderbolt 3 docking station is a compact mini dock, delivering essential connections for productivity. The bus-powered dock connects dual 4K HDMI displays, Gigabit Ethernet, and two USB-A (USB 3.2 / 2.0) ports and for flexible set up, the attached Thunderbolt 3 cable has an extended length of (11 in./ 28 cm).
Features:
Overview:
Manufacturer Warranty: 03 Years Limited Warranty
Environmental :- | |
Operating Temperature | 5°C to 40°C |
Storage Temperature | -20°C to 70°C |
Humidity | 0% to 95% (non-condensing) at 25°C |
Hardware :- | |
Displays Supported | 2 |
Fast-Charge Port(s) | No |
4K Support | Yes |
Industry Standards | 1Gb connectivity to any 1000Base-T device (IEEE802.3ab Compliant) 100Mb connectivity to any 100Base-TX device (IEEE802.3u Compliant) 10Mb connectivity to any 10Base-T device (IEEE802.3i Compliant) |
Audio | No |
Interface | Thunderbolt 3 |
Bus Type | Thunderbolt 3 |
Chipset ID | Intel JHL6540 (Alpine Ridge) Texas Instruments TPS65983A Parade PS176 ASMedia ASM1042A Intel WGI210 |
Performance :- | |
Maximum Cable Length | 11.0 in [28 cm] |
Maximum Digital Resolutions | 4K 60Hz |
PXE | Yes |
Physical Characteristics :- | |
Color | Black & Silver |
Form Factor | Compact |
Product Height | 1.1 in [2.7 cm] |
Product Length | 4.9 in [12.4 cm] |
Weight of Product | 5.2 oz [147.8 g] |
Product Width | 2.7 in [6.9 cm] |
Material | Aluminum and Plastic |
Cable Length | 11.0 in [28 cm] |
Power :- | |
Power Source | Bus Powered |
Input Voltage | 5V DC |
Output Voltage | 5 DC |
Software :- | |
OS Compatibility | Windows 11, 10 (32/64 bit), 8.1 (32/64bit), 7 (32/64bit) Windows Server 2008 R2, 2012(32/64bit) macOS 10.10 -10.15, 11.0, 12.0, 13.0 |
Special Notes / Requirements :- | |
Note | MacBook Air and MacBook Pro systems using the new Apple M1 chip support only a single external display over the Thunderbolt 3 ports, even when connected to a Thunderbolt 3 docking station with more than one video output. This single monitor limitation does not affect Intel-based Macs with Thunderbolt 3. |
What's in the Box :- | |
Included in Package | 1 - Docking Station 1 - User Manual |
