Manufacture # Startech | Model # SATDOCKU3S

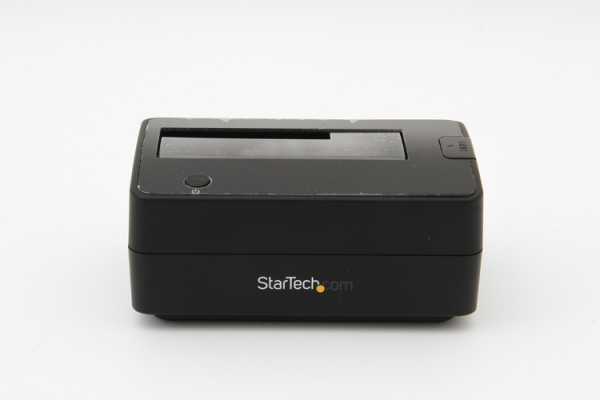

The SATDOCKU3S USB 3.0 Hard Drive Docking Station delivers full, instant access to any 2.5in or 3.5in SATA (SATA, SATA II, SATA III) hard drive (HDD) or solid state drive (SSD), without having to mount the drive in a computer or install it in an external enclosure. Large capacity drives (tested with up to 4TB 3.5" and 1TB 2.5" drives) can be used to greatly enhance your computer's storage/backup capabilities.
Connected to the host computer through a single USB 3.0 SuperSpeed or USB 2.0 connection, the hard drive docking station provides a convenient, plug-and-play storage solution that delivers instant access to the hard drive without requiring a reboot.
Features:
Overview:
Manufacturer Warranty: 02 Years Limited Warranty
| Warranty | 2 Years |
| 1 - Drive Connectors | SATA Data & Power Combo (7+15 pin) |
| 1 - Host Connectors | USB Type-B (9 pin) USB 3.0 |
| Operating Temperature | 5°C to 80° (41°F to 176°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 8~80% RH |
| Interface | USB 3.0 |
| Number of Drives | 1 |
| Drive Size | 2.5in & 3.5in |
| Compatible Drive Types | SATA |
| Fan(s) | No |
| Chipset ID | ASMedia - ASM1053 |
| 1 - LED Indicators | Power and Activity (Solid - Power, Blinking - Activity) |
| Package Height | 91 mm [3.6 in] |
| Package Length | 17.2 cm [6.8 in] |
| Shipping (Package) Weight | 728 g [25.7 oz] |
| Package Width | 16.2 cm [6.4 in] |
| Type and Rate | USB 3.0 - 5 Gbit/s / USB 2.0 - 480 Mbit/s |
| UASP Support | No |
| Type and Rate | SATA II (3 Gbps) |
| Max Drive Capacity | Currently tested with up to 4TB 5400 RPM 3.5" hard drives and 1TB 5400 RPM 2.5" hard drive |
| Insertion Rating | 15,000 Cycles |
| Weight of Product | 392 g [13.8 oz] |
| Color | Black |
| Material | Plastic |
| Product Length | 14.5 cm [5.7 in] |
| Product Width | 93 mm [3.7 in] |
| Product Height | 65 mm [2.6 in] |
| Power Source | AC Adapter Included |
| Input Voltage | 100 - 240 AC |
| Output Voltage | 12V DC |
| Output Current | 2.5A |
| Center Tip Polarity | Positive |
| Plug Type | M |
| Power Consumption (In Watts) | 30 |
| OS Compatibility | OS independent; No software or drivers required |
| 1 - Included in Package | USB 3.0 HDD Dock USB 3.0 Cable Universal Power Adapter (NA,EU,UK,ANZ) Instruction Manual |
