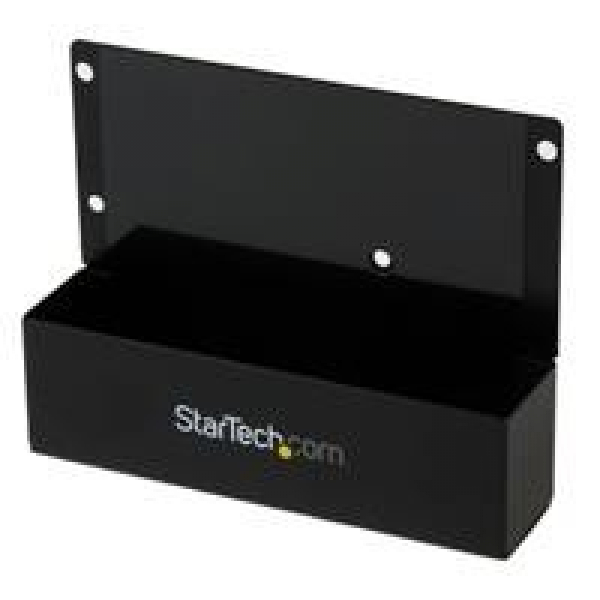

STARTECH Sata To 2.5in Or 3.5in Ide Hard Drive SAT2IDEADP

Sku: SAT2IDEADP

Availability: In Stock

Brand: StarTech

Category: Enclosures

$48.40 $55.00 12% OFF

Startech SAT2IDEADP, Durable, metal construction, Drive 2.5in & 3.5in, 48-bit, Connector 1 - SP4 (4 pin, Small Drive Power) Male, Black, Steel.   The SAT2IDEADP SATA to IDE hard drive adapter enables you to use your 2.5-inch/3.5-inch IDE-based (PATA) hard drives in most StarTech.com SATA-based HDD docking stations and drive duplicators.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture # Startech | Model # SAT2IDEADP



The SAT2IDEADP SATA to IDE hard drive adapter enables you to use your 2.5-inch/3.5-inch IDE-based (PATA) hard drives in most StarTech.com SATA-based HDD docking stations and drive duplicators. The SATA-IDE adapter features all-metal construction that ensures maximum durability, and is fully compatible with IDE hard drives up to ATA-133 (133MBps).



Features:

  • Supports 40-pin (3.5in) and 44-pin (2.5in) IDE hard drives
  • Durable, metal construction
  • Compatible with most 3.5in StarTech.com SATA hard drive docking stations and duplicators.



Overview:

  • Chipset ID: JMicron - JM20330
  • Compatible Drive Types: IDE (ATA)
  • Drive Installation: Fixed
  • Drive Size: 2.5in & 3.5in
  • LBA support: 48-bit



Manufacturer Warranty: 02 Years Limited Warranty

Chipset ID JMicron - JM20330
Compatible Drive Types IDE (ATA)
Drive Installation Fixed
Drive Size 2.5in & 3.5in
Fan(s) No
LBA support 48-bit
Number of Drives 1
RAID No
Connector Type(s) 1 - SP4 (4 pin, Small Drive Power) Male
Drive Connectors 1 - IDE (40 Pin, EIDE/PATA) Female
1 - IDE (44 Pin, EIDE/PATA, 2.5" HDD) Female
1 - LP4 (4 pin; Large Drive Power) Female
Host Connectors 1 - SATA (7 pin, Data) Plug
1 - SATA Power (15 pin) Plug
OS Compatibility OS independent; No software or drivers required
Humidity 8% ~ 90% RH
Operating Temperature 5°C to 80°C (41°F to 176°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Color Black
Material Steel
Product Height 1 in [2.6 cm]
Product Length 4 in [10.1 cm]
Product Width 3.1 in [78 mm]
Weight of Product 3.7 oz [104 g]
Package Height 2 in [52 mm]
Package Length 5.8 in [14.7 cm]
Package Width 4.3 in [11 cm]
Shipping (Package) Weight 7.7 oz [218 g]
Included in Package 1 - SATA to IDE adapter
1 - 40-pin IDE cable
1 - 40-pin to 44-pin IDE cable with power
1 - SP4 to LP4 Power cable
1 - Package of mounting screws
1 - Instruction Manual
Included in Package 1 - mDP to HDMI adapter cable
