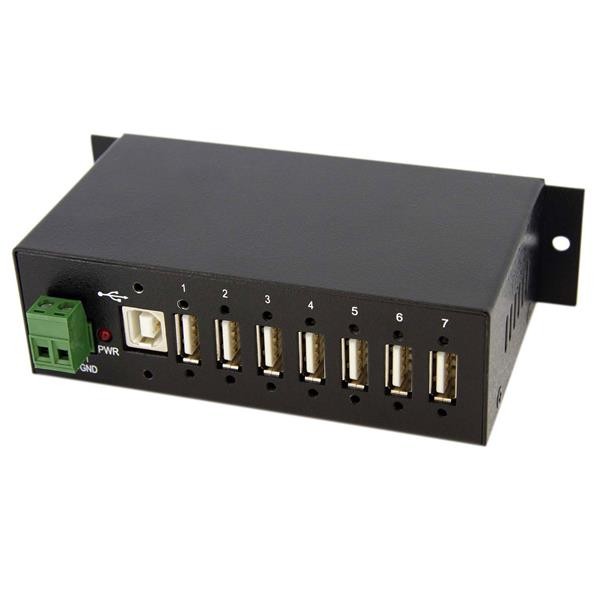

STARTECH Mountable Rugged Industrial 7 Port Usb ST7200USBM

SKU : ST7200USBM
Brand : StarTech
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse
STARTECH Mountable Rugged Industrial 7 Port Usb ST7200USBM, 1 - External Ports: USB B (4 pin), 7 - External Ports: USB Type-A (4 pin) USB 2.0, Ports: 7, Interface: USB 2.0, Bus Type: USB 2.0, USB 2.0, Industry Standards: USB 2.0, Chipset ID: Terminus - FE2.1, 1 - LED Indicators: Power, Maximum Data Transfer Rate: Up to 480Mbps, Surge Protection: 350W on the DFP and UFP, MTBF: 170,227 Hours   This TAA compliant 7-port industrial USB 2.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial gra
Ask a question about this product
$171.00

Estimated Shipping

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Startech | Model # ST7200USBM



This TAA compliant 7-port industrial USB 2.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.



This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.



Features:

  • Protects your connected devices with 15kV Air and 8kV Contact ESD protection
  • Surge protection of 350W on the downstream and upstream USB ports
  • Mount industrial USB 2.0 hub where required with built-in mounting brackets or included DIN rails
  • Offers flexible, wide-range power inputs with a 7-24V DC terminal block
  • Adds seven USB 2.0 ports from a single USB connection



Overview:

  • 1 - External Ports: USB B (4 pin
  • 7 - External Ports: USB Type-A (4 pin) USB 2.0
  • Ports: 7
  • Interface: USB 2.0
  • Bus Type: USB 2.0, USB 2.0
  • Industry Standards: USB 2.0



Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

Warranty 2 Years
1 - External Ports USB B (4 pin)
7 - External Ports USB Type-A (4 pin) USB 2.0
Operating Temperature 0°C to 55°C (32°F to 131°F)
Storage Temperature -20°C to 85°C (-4°F to 185°F)
Humidity 5~95% RH
Ports 7
Interface USB 2.0
Bus Type USB 2.0
USB 2.0
Industry Standards USB 2.0
Chipset ID Terminus - FE2.1
1 - LED Indicators Power
Package Height 51,0 mm [2,0 in]
Package Length 15,1 cm [5,9 in]
Shipping (Package) Weight 488,0 g [17,2 oz]
Package Width 21,6 cm [8,5 in]
Maximum Data Transfer Rate Up to 480Mbps
ESD Protection +/-8kV (Contact)
+/-15kV (Air)
Surge Protection 350W on the DFP and UFP
MTBF 170,227 Hours
Weight of Product 283,0 g [10,0 oz]
Color Black
Material Steel
Product Length 13,3 cm [5,2 in]
Product Width 61,5 mm [2,4 in]
Product Height 36,3 mm [1,4 in]
Power Source Terminal Block
Input Voltage 7 ~ 24 DC
OS Compatibility OS independent; No software or drivers required
System and Cable Requirements Any computer with a USB 2.0 port
1 - Included in Package USB 2.0 Hub
6 ft [1.8 m] USB-B w/screw lock to USB-A cable
Screw kit
Instruction Manual
