Manufacture # Startech | Model # MCHD2VGAE2

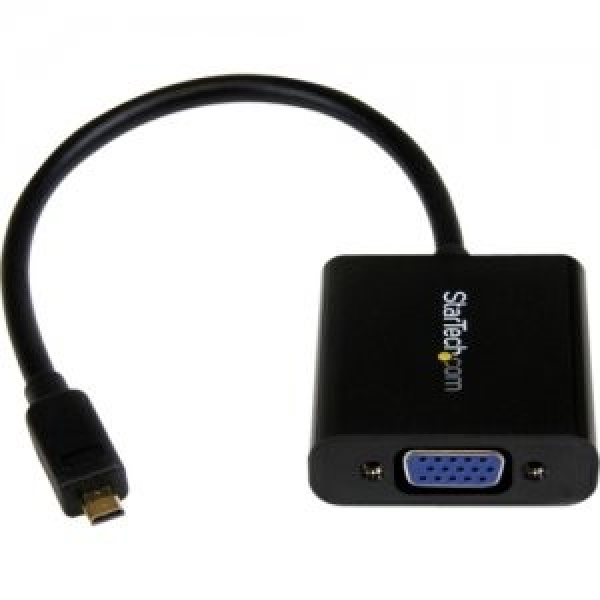

The MCHD2VGAE2 HDMI® Micro to VGA adapter/converter actively converts an HDMI® Micro video signal from your smartphone, Ultrabook, or tablet PC onto a VGA projector, or display. The Micro HDMI to VGA adapter is intended for displaying user generated content such as presentations, documents, and work sheets onto a VGA projector or monitor.
The HDMI Micro/VGA adapter supports video resolutions up to full 1080p, making it a convenient option for high-definition applications, and features a compact design with no external power source, which ensures a portable solution that's easy to carry as an accessory.
Features:
Overview:
Manufacturer Warranty: 03 Years Limited Warranty
| Active or Passive Adapter | Active |
| Audio | No |
| AV Input | Micro HDMI |
| AV Output | VGA |
| Industry Standards | High Speed HDMI® |
| Ports | 1 |
| Maximum Analog Resolutions | 1920x1200 |
| Maximum Digital Resolutions | 1920x1200 |
| MTBF | 1,754,784 hours |
| Supported Resolutions | 1920x1200, 1920x1080 (1080p), 1600x1200 @ 60Hz |
| Wide Screen Supported | Yes |
| Connector A | 1 - Micro HDMI (19 pin) Male Input |
| Connector B | 1 - VGA (15 pin, High Density D-Sub) Female Output |
| Humidity | 40% to 85% RH Non-Condensing |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Color | Black |
| Material | Plastic |
| Product Height | 0.6 in [1.5 cm] |
| Product Length | 10 in [25.5 cm] |
| Product Width | 1.8 in [45 mm] |
| Weight of Product | 0.9 oz [25.3 g] |
| Package Height | 0.6 in [15 mm] |
| Package Length | 10 in [25.5 cm] |
| Package Width | 1.8 in [45 mm] |
| Shipping (Package) Weight | 1.2 oz [33 g] |
| Included in Package | 1 - Micro HDMI® to VGA Converter Adapter |
