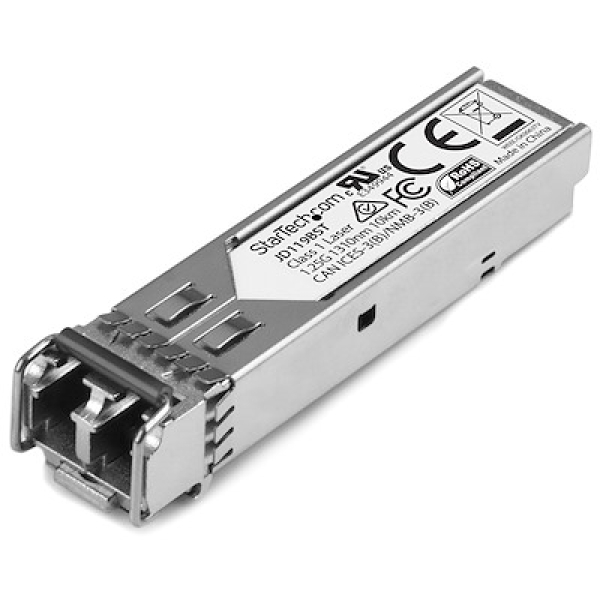

Startech HPE JD119B Compatible SFP - 1GbE SMF Transceiver 10km DDM

Sku: JD119BST

Availability: In Stock

Brand: StarTech

Category: Network Accessories

$86.90 $132.00 34% OFF

Color: Silver, Material: Aluminum, Max Transfer Distance: 10 km (6.2 mi), Type: Single Mode, Wavelength: 1310nm, Fiber Operating Mode: Full-Duplex, MTBF: 3,092,408 hours, Lifetime Limited Warranty, JD119BST.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture # Startech | Model # JD119BST



The JD119BST is an HPE JD119B compatible fiber transceiver module that has been designed, programmed and tested to work with HPE brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 1000BASE-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi).



Features:

  • 100% HPE JD119B Compatible: Works with HPE switches like 5900, 12500, 5500, 5820, 5120 and others
  • Technical Specs: 1000BASE-LX | 1Gbps | Single Mode (SMF) | LC Connector | 1310nm | Digital Diagnostic Monitoring (DDM) | Distances up to 10km (6.2mi)
  • Tested For Oem Host Compatibility: Hot-swappable in HPE routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
  • Works With Msa Compliant Switches: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules


Overview:

  • Color: Silver
  • Material: Aluminum
  • Max Transfer Distance: 10 km (6.2 mi)
  • Type: Single Mode
  • Wavelength: 1310nm
  • Fiber Operating Mode: Full-Duplex
  • MTBF: 3,092,408 hours



Manufacturer Warranty: Lifetime Limited Warranty

Color Silver
Material Aluminum
System and Cable Requirements MSA or HP compliant SFP port
For use in Gigabit fiber networking equipment and media converters
Connector(s) :-
Local Unit Connectors 1 - Fiber Optic LC Duplex
Hardware :-
Compatible Brand HPE
Industry Standards IEEE 802.3z 1000BASE-LX
Performance :-
Maximum Data Transfer Rate 1.25 Gbps
Max Transfer Distance 10 km (6.2 mi)
Type Single Mode
Wavelength 1310nm
Fiber Operating Mode Full-Duplex
DDM Yes
Compatible Networks 1000 Mbps (1 Gbps)
MTBF 3,092,408 hours
Power Consumption (In Watts) < 1 W
Output Voltage 3.3V DC
Environmental :-
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5~95% RH
Physical Characteristics :-
Weight of Product 0.6 oz [16.0 g]
Product Length 2.2 in [56.6 mm]
Product Width 0.5 in [1.4 cm]
Product Height 0.5 in [1.2 cm]
What's in the Box :-
Included in Package 1 - SFP transceiver
