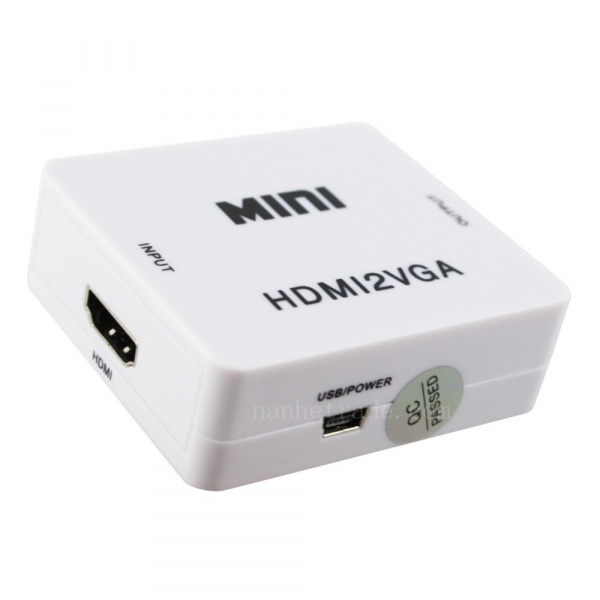

STARTECH Hdmi To Vga Video Adapter Converter HDMI2VGA

SKU : HDMI2VGA
Brand : StarTech
Availablity : In stock
Ships within 1 and 3 days
Startech HDMI2VGA, Hdmi To Vga Video Adapter Converter, Input HDMI, Output 3.5 mm Stereo Audio, VGA, Component, Connector A 1 - HDMI (19 pin) Female Input, Connector B 1 - 3.5 mm Mini-Jack (3 Position) Female Output, 1 - VGA (15 pin, High Density D-Sub) Female Output, Voltage 100 - 240 AC, AC Adapter Included, Black.   The HDMI2VGA HDMI® to VGA converter converts digital HDMI or DVI video signals to analog VGA, taking the input resolution from your device and converting it into an analog signal at the same resolution.
Ask a question about this product
$305.00

Estimated Shipping

Delivery when available

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Startech | Model # HDMI2VGA



The HDMI2VGA HDMI® to VGA converter converts digital HDMI or DVI video signals to analog VGA, taking the input resolution from your device and converting it into an analog signal at the same resolution.



The converter also separates the audio stream from the HDMI signal (HDMI LPCM 2-Channel) and converts it to analog stereo audio that can be used with the VGA display.



Features:

  • Supports VGA and Component (YPbPr) output conversion
  • Compliant with HDCP 1.1, and DVI
  • Built-in EDID
  • Audio video are separated on output



Overview:

  • Active or Passive Adapter: Active
  • Audio: Yes
  • AV Input: HDMI
  • Audio Specifications: HDMI® LPCM 2-channel Input



Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

Active or Passive Adapter Active
Audio Yes
AV Input HDMI
AV Output 3.5 mm Stereo Audio
VGA
Component
Audio Specifications HDMI® LPCM 2-channel Input
Supported Resolutions PC: 1920x1200, 1600x1200, 1680x1050, 1440x900, 1280x1024, 1280x800, 1152x864, 1024x768, 800x600, 640x480
HD: 1080p/1080i (50, 60Hz), 720p (50, 60Hz), 576i/576p (50Hz), 480i/480p (60Hz)
Connector A 1 - HDMI (19 pin) Female Input
Connector B 1 - 3.5 mm Mini-Jack (3 Position) Female Output
1 - VGA (15 pin, High Density D-Sub) Female Output
LED Indicators 1 - Power (Red)
Center Tip Polarity Positive
Input Current 0.3A
Input Voltage 100 - 240 AC
Output Current 1.2A
Output Voltage 5 DC
Plug Type N
Power Consumption (In Watts) 6
Power Source AC Adapter Included
Humidity 0~60% RH
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -10°C to 60°C (14°F to 140°F)
Color Black
Product Height 3.6 in [9.2 cm]
Product Length 3 in [76 mm]
Product Width 3 in [76 mm]
Weight of Product 6.4 oz [181 g]
Package Height 2.4 in [60 mm]
Package Length 4.6 in [11.8 cm]
Package Width 8.3 in [21 cm]
Shipping (Package) Weight 18.9 oz [536 g]
Included in Package 1 - HDMI to VGA Converter w/ Audio
1 - VGA to Component Breakout Cable
1 - Universal Power Adapter (US/UK/EU/AUS)
1 - Instruction Manual
