Manufacture # StarTech | Model # ST12MHDLAN2K

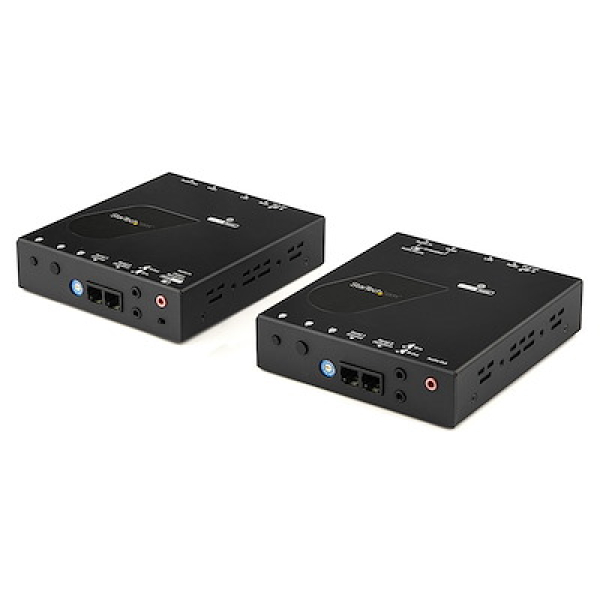

This HDMI over IP extender kit distributes video to a remote location, over your local area network (LAN) and Cat5e or Cat6 Ethernet cabling. By combining this kit with additional receivers (sold separately) and an Ethernet switch (sold separately) you can distribute an HDMI source to multiple locations and create video walls using several remote displays and receivers in the same location.
You can also use multiple transmitters on the same network to distribute different video sources or connect the transmitter directly to a receiver at up to 330 ft. (100 m), in a point-to-point setup. Remote control of serial devices is supported through RS-232 extension.
Features:
Overview:
Manufacturer Warranty: 02 Years Limited Warranty
| Connector(s) :- | |
| Local Unit Connectors | 1 - RJ-45 1 - HDMI (19 pin) 2 - RJ-11 2 - 3.5 mm Audio 2 - 3.5 mm Mini-Jack (3 Position) |
| Remote Unit Connectors | 1 - RJ-45 1 - HDMI (19 pin) 2 - RJ-11 2 - 3.5 mm Audio 2 - 3.5 mm Mini-Jack (3 Position) |
| Environmental :- | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -10°C to 60°C (14°F to 140°F) |
| Humidity | 0% - 80 % |
| Hardware :- | |
| Cabling | Cat 5e UTP or better |
| Audio | Yes |
| Rack-Mountable | No |
| Daisy-Chain | Yes |
| Indicators :- | |
| LED Indicators | 1 - Power/Link - Transmitter 1 - Network Status - Transmitter 1 - Power/Link - Receiver 1 - Network Status - Receiver |
| Performance :- | |
| Max Distance | 100 m / 330 ft |
| Maximum Digital Resolutions | 1920x1080 @60Hz |
| Supported Resolutions | 1920 x 1080 @60Hz 1280 x 720 1680 x 1050 1600 x 900 1440 x 900 1360 x 768 1280 x 800 1280 x 768 Lower resolutions and refresh rates may also be supported |
| Wide Screen Supported | Yes |
| Audio Specifications | 7.1 Channel Surround |
| Physical Characteristics :- | |
| Color | Black |
| Material | Aluminum |
| Product Length | 5.2 in [13.1 cm] |
| Product Width | 4.6 in [11.8 cm] |
| Product Height | 1.2 in [3.1 cm] |
| Weight of Product | 2.6 lb [1.2 kg] |
| Power :- | |
| Power Source | AC Adapter Included |
| Input Voltage | 100 - 240 AC |
| Input Current | 0.6 A |
| Output Voltage | 12V DC |
| Output Current | 1.5 A |
| Center Tip Polarity | Positive |
| Plug Type | M |
| Power Consumption (In Watts) | 10 |
| Special Notes / Requirements :- | |
| Note | Your router must support IGMP snooping. Please refer to your network switch or router documentation to ensure IGMP snooping is supported and enabled |
| What's in the Box :- | |
| Included in Package | 1 - HDMI Transmitter 1 - HDMI Receiver 1 - CAT5 Cable 2 - RJ-11 to RS-232 Adapters 2 - RJ-11 Cables 1 - IR Blaster 1 - IR Receiver 2 - Universal Power Adapters (NA/JP, EU, UK, ANZ) 1 - Hardware Kit 8 - Foot Pads 1 - User Manual |
