Sku: M2E1BMU31C
Brand: StarTech
Category: Enclosures
Availability: In Stock
Ships in 1-2 days.
Pickup from Seven Hills in 1-2 days.
Shipping Calculator
Find
Startech M2E1BMU31C, Host Connectors M.2 (PCIe, M-Key, NVMe, NGFF), USB 3.1 USB Type C (10 pin, Gen 2, 10 Gbps) Female, Bus USB 3.1 Gen 2, Compatible M.2 (PCIe, NVMe, M-Key, NGFF), Interface USB 3.1 Gen 2, Drives-1, MTBF 233,398 Hours, Black.

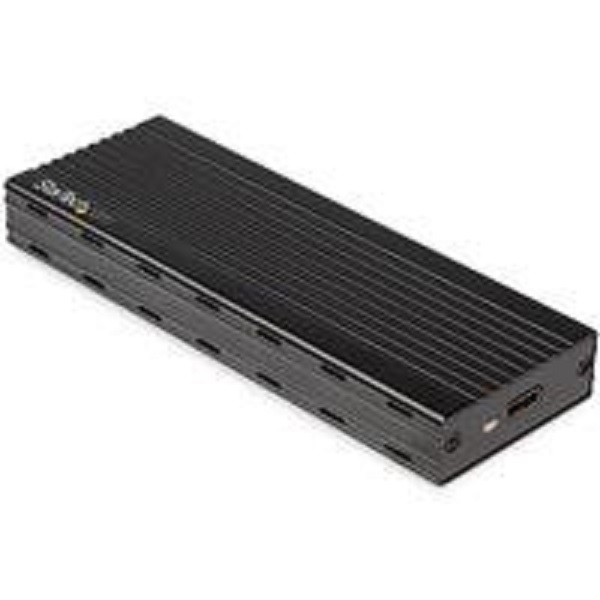

This compact M.2 NVMe SSD Enclosure for PCIe SSDs is a highly portable, high-performance data storage solution for your USB-C or Thunderbolt 3 enabled devices.
We Accept
Manufacture # Startech | Model # M2E1BMU31C
This compact M.2 NVMe SSD Enclosure for PCIe SSDs is a highly portable, high-performance data storage solution for your USB-C or Thunderbolt 3 enabled devices.
Leverage the high speeds of your M.2 NVMe drive, with this external SSD enclosure. It delivers USB 3.1 Gen 2 read/write speeds up to 10Gbps, which is nearly twice the capability of traditional M.2 SATA enclosures.
Features:
Overview:
Manufacturer Warranty: 01 Years Limited Warranty
| Host Connectors | M.2 (PCIe, M-Key, NVMe, NGFF) |
| USB 3.1 USB Type C (10 pin, Gen 2, 10 Gbps) Female | |
| Humidity | Operation Humidity: 10% ~ 90% RH Storage Humidity: 5% ~ 95% RH |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -10°C to 65°C (14°F to 149°F) |
| Bus Type | USB 3.1 Gen 2 |
| Chipset ID | ASMedia - ASM2362 |
| Compatible Drive Types | M.2 (PCIe, NVMe, M-Key, NGFF) |
| Drive Installation | Fixed |
| Drive Size | 22 mm - M.2 NVMe |
| Interface | USB 3.1 Gen 2 |
| Number of Drives | 1 |
| Supported Drive Height(s) | 2230 |
| 2242 | |
| 2260 | |
| 2280 | |
| LED Indicators | Power & Activity |
| Package Height | 35 mm [1.4 in] |
| Package Length | 15.4 cm [6.1 in] |
| Package Width | 10.6 cm [4.2 in] |
| Shipping (Package) Weight | 0.2 kg [0.3 lb] |
| 4Kn Support | Yes |
| General Specifications | Not compatible with M.2 SATA or AHCI based SSDs |
| Maximum Data Transfer Rate | 10 Gbps |
| MTBF | 233,398 Hours |
| TRIM Support | Yes |
| Type and Rate | NVMe (PCIe Gen 3) |
| USB 3.1 Gen 2 - 10 Gbit/s | |
| UASP Support | Yes |
| Color | Black |
| Enclosure Type | Aluminum and Plastic |
| Product Height | 1.3 cm [0.5 in] |
| Product Length | 10.8 cm [4.3 in] |
| Product Width | 40 mm [1.6 in] |
| Weight of Product | 65 g [2.3 oz] |
| Power Source | USB-Powered |
| Description CDW 75 - 1st Line | StarTech.com M.2 NVMe SSD Enclosure for PCIe SSDs - USB 3.1 Gen 2 Type-C |
| OS Compatibility | OS independent; No software or drivers required |
| Included in Package | Drive Enclosure |
| Quick-Start Guide | |
| Screwdriver | |
| Set of M.2 Mounting Hardware (Installed) | |
| USB-C to USB-C Cable (50 cm) |
