Sku: SDOCK2U33V
Brand: StarTech
Category: Enclosures
Availability: In Stock
Ships in 1-2 days.
Pickup from Seven Hills in 1-2 days.
Shipping Calculator
Find
Startech Dual-bay Sata Hdd Docking Station SDOCK2U33V, 2 - Drive Connectors: SATA Data & Power Combo (7+15 pin), 1 - Host Connectors: USB 3.1 USB Type-B (9 pin, Gen 1, 5 Gbps), Fan(s): No, Interface: USB 3.0, Bus Type: USB 3.0, Number of Drives: 2, Drive Size: 2.5in & 3.5in, Compatible Drive Types: SATA, Drive Installation: Removable, Chipset ID: ASMedia - ASM1153E, 2 - LED Indicators: drive activity LED, 1 - LED Indicators: power LED
Use this SATA hard drive docking station to gain quick access to two of your 2.5" or 3.5" SATA III SSDs/HDDs - Access two 2.5/3.5” SATA hard drives or solid state drives simultaneously and hot swap drives in and out of this HDD docking station.
We Accept
Manufacture # Startech | Model # SDOCK2U33V

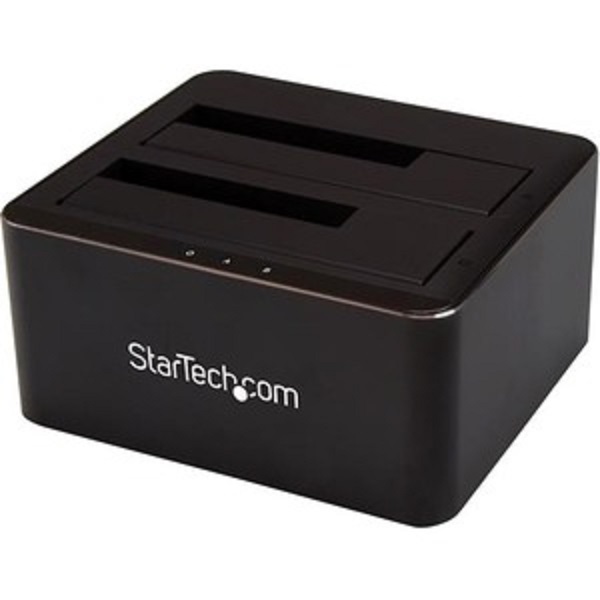

This dual-bay SATA HDD/SSD docking station lets you dock and swap drives from your desktop or laptop computer simultaneously, using a single USB port. It supports two 2.5/3.5” SATA hard drives or solid-state drives.
The dual-bay docking station supports USB 3.0, also known as USB 3.1 Gen 1, providing fast data transfer speeds of up to 5Gbps. It also supports UASP, for enhanced performance.
Features:
Overview:
Manufacturer Warranty: 02 Years Limited Warranty
| Warranty | 2 Years |
| 2 - Drive Connectors | SATA Data & Power Combo (7+15 pin) |
| 1 - Host Connectors | USB 3.1 USB Type-B (9 pin, Gen 1, 5 Gbps) |
| Operating Temperature | 5°C to 35°C (41°F to 95°F) |
| Storage Temperature | -20°C to 50°C (-4°F to 122°F) |
| Humidity | 20%RH~80%RH |
| Fan(s) | No |
| Interface | USB 3.0 |
| Bus Type | USB 3.0 |
| Number of Drives | 2 |
| Drive Size | 2.5in & 3.5in |
| Compatible Drive Types | SATA |
| Drive Installation | Removable |
| Chipset ID | ASMedia - ASM1153E |
| 2 - LED Indicators | drive activity LED |
| 1 - LED Indicators | power LED |
| Shipping (Package) Weight | 782.0 g [27.6 oz] |
| Package Length | 13.5 cm [5.3 in] |
| Package Width | 12.5 cm [4.9 in] |
| Package Height | 12.0 cm [4.7 in] |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| UASP Support | Yes |
| TRIM Support | Yes |
| 4Kn Support | Yes |
| S.M.A.R.T. Support | Yes |
| Type and Rate | SATA III (6 Gbps) |
| Port Multiplier | No |
| Hardware Raid Supported | No |
| Max Drive Capacity | Currently tested with hard drives up to 10TB at 7200 RPM |
| Color | Black |
| Material | Aluminum and Plastic |
| Product Length | 11.4 cm [4.5 in] |
| Product Width | 13.0 cm [5.1 in] |
| Product Height | 62.0 mm [2.4 in] |
| Weight of Product | 370.0 g [13.1 oz] |
| Power Source | AC Adapter Included |
| Input Voltage | 100 - 240 AC |
| Input Current | 1.5 A |
| Output Voltage | 12V DC |
| Output Current | 0.125 |
| Center Tip Polarity | Positive |
| Plug Type | M |
| Power Consumption (In Watts) | 36 |
| OS Compatibility | OS independent; No software or drivers required |
| Note | Windows 7 and earlier Windows versions do not support TRIM with USB to SATA devices. |
| 1 - Included in Package | drive docking station 1.2 m USB 3.0 cable universal power adapter (NA/JP, UK, EU, ANZ) quick-start guide |
