Startech Dock - Thunderbolt 3 Dual 4k 60hz TB3DK2DHV

Brand : STARTECH
SKU : TB3DK2DHV
Availablity : In stock

Free shipping free shipping

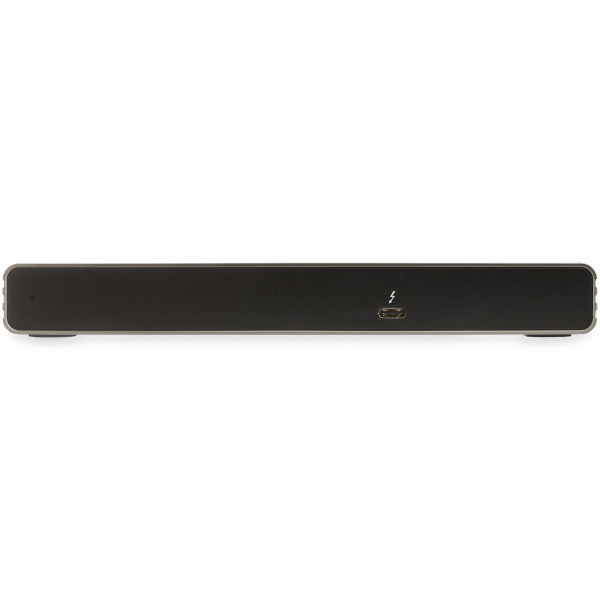

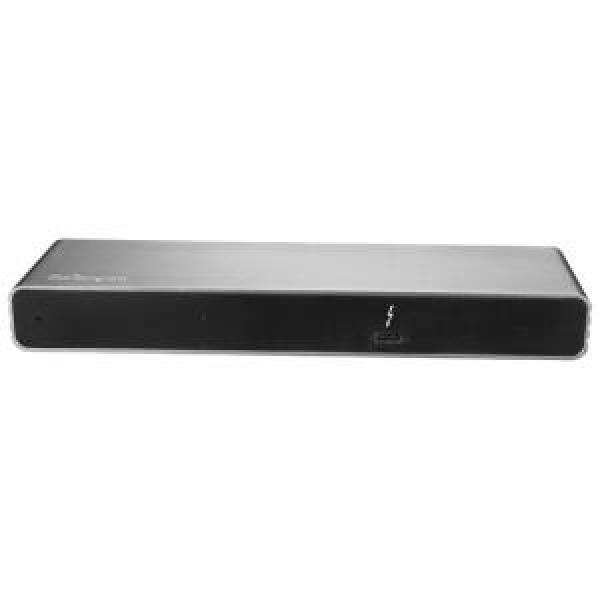

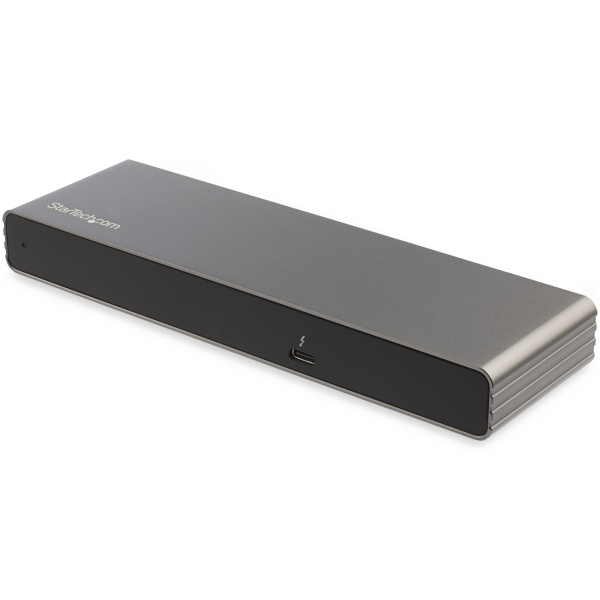

StarTech.com Thunderbolt 3 Dock | Dual 4K 60Hz Monitor TB3 Docking Station with DisplayPort, HDMI & 1080p VGA | 85W Power Delivery (TB3DK2DHV) | Docking station | Thunderbolt 3 | VGA, HDMI, 2 x DP | GigE.



Create a powerful and flexible workstation with this Thunderbolt™ 3 dock. With dedicated dual video output, you can connect your Thunderbolt 3 equipped MacBook Pro or Windows® laptop to two 4K monitors, through a single Thunderbolt 3 cable.

Ask a question about this product

$435.00

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Product Description

Manufacture # Startech | Model # TB3DK2DHV



Create a powerful and flexible workstation with this Thunderbolt™ 3 dock. With dedicated dual video output, you can connect your Thunderbolt 3 equipped MacBook Pro or Windows® laptop to two 4K monitors, through a single Thunderbolt 3 cable



Simply connect the TB3 dock to your laptop with included TB3 cable and start working immediately. No time-consuming driver installations are required.  



Features:

  • Thunderbolt 3 Dual 4k 60hz TB3DK2DHV Connect your Thunderbolt 3 laptop to dual monitors
  • With flexible video output (DP/HDMI/VGA) plus GbE (PXE Boot and WoL support) and two USB 3.0 ports
  • Thunderbolt 3 Dock for MacBook Pro & Windows
  • Dual 4K 60Hz Thunderbolt 3 Docking Station features dedicated dual video output

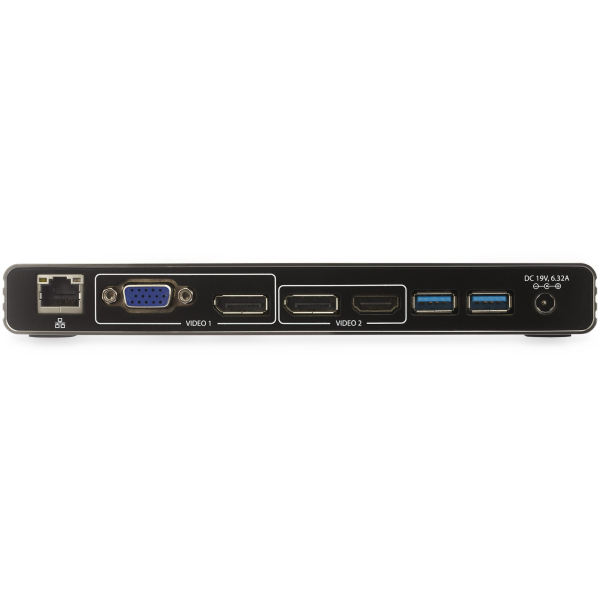

  • With flexible monitor options: Dual DP / DP + HDMI / DP + VGA / HDMI + VGA
  • MacBook Pro dock lets you power and charge your laptop & power peripherals w/ 85W Power Delivery
  • Connect USB devices w/ 2 x USB 3.0 (USB-A) ports



Overview:

  • 4K Support: Yes
  • Bus Type: Thunderbolt 3
  • Displays Supported: 2
  • Fast-Charge Port(s): Yes
  • Auto MDIX: Yes
  • Compatible Networks: 10/100/1000 Mbps



Manufacturer Warranty: 03 Years Limited Warranty



Technical Specifications

4K Support Yes
Bus Type Thunderbolt 3
Chipset ID Intel - Alpine Ridge JHL6540
Intel - WGI210AT
ASMedia - ASM1042A
Parade - PS176
Chrontel - CH7517
Displays Supported 2
Fast-Charge Port(s) Yes
Industry Standards Thunderbolt 3
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0 and 1.1
Auto MDIX Yes
Compatible Networks 10/100/1000 Mbps
Full Duplex Support Yes
Maximum Data Transfer Rate 40 Gbps (Thunderbolt 3)
5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
PXE Yes
Type and Rate Thunderbolt 3 - 40 Gbit/s
UASP Support Yes
OS Compatibility Windows® 7, 8, 8.1, 10
macOS 10.12 - 10.15
Note A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K).
System and Cable Requirements Thunderbolt 3 equipped computer with a Thunderbolt 3 port
Center Tip Polarity Positive
Input Current 1.8 A
Input Voltage 100 - 240 AC
Output Current 6.32 A
Output Voltage 19V DC
Plug Type N
Power Consumption (In Watts) 120W
Power Delivery 85W
Power Source AC Adapter Included
Humidity 20~80% RH (Non-condensing)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Cable Length 19.7 in [50 cm]
Color Gray
Material Aluminum
Product Height 0.9 in [2.4 cm]
Product Length 7.7 in [19.6 cm]
Product Width 2.3 in [58.6 mm]
Weight of Product 12 oz [340 g]
Package Height 2.6 in [65 mm]
Package Length 10 in [25.4 cm]
Package Width 7.4 in [18.7 cm]
Shipping (Package) Weight 2.9 lb [1.3 kg]
Included in Package 1 - docking station
1 - Thunderbolt 3 cable 1.6 ft [0.5 m]
1 - universal power adapter
2 - power cords (NA/JP, ANZ)
1 - instruction manual
