Startech DKT31CH2CPD3 Multiport Adapter 4k 60hz Hdmi Pd

SKU : DKT31CH2CPD3
Brand : StarTech
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
4K Support: Yes, Displays Supported: 1, Interface: USB 3.2 Gen 2, Bus Type: USB-C, UASP Support: Yes, Full Duplex Support: Yes.
Ask a question about this product
$140.00

Estimated Shipping

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Startech | Model # DKT31CH2CPD3

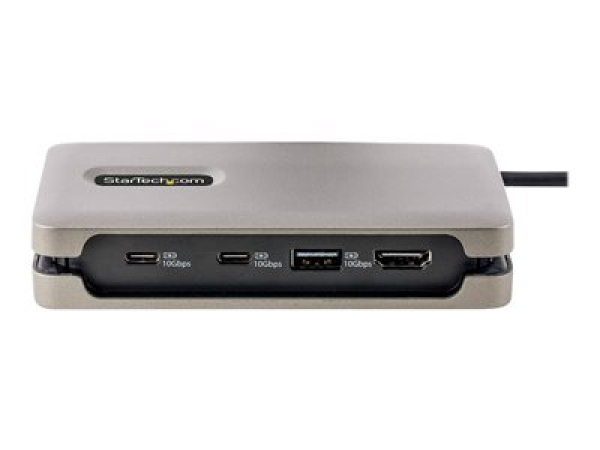

The portable docking station provides 4K 60Hz HDMI video output, two USB 3.2 Gen 2 Type-C (10Gbps) ports, one USB 3.2 Gen 2 Type-A (10Gbps) port, and a Gigabit Ethernet port (PXE and WoL support) all through one connection to your laptop's USB-C or Thunderbolt 3/4™ port. A USB-C DisplayPort 1.4 Alt-Mode port is required for 4K 60Hz HDMI output.



Features:

  • This USB-C Docking Station's 3-port 10 Gbps hub w/ charging has 2x USB-C ports and 1x USB-A port (high draw devices may require more power) - Connect a USB-C power adapter to enable device charging without host connection
  • USB-C Mini Dock with 12" (30 cm) attached cable extends reach to reduce port/connector strain on 2-in-1 devices: Surface Pro 7/iPad Pro/HP Elite x2/laptops on riser stands - Hideaway cable management feature hides cable during travel
  • USB bus powered or via external USB-C power adapter - 100W Power Delivery 3.0 pass through w/ 15W reserved for adapter to avoid video flickering, device dropouts or overdrawing power common in other hubs - up to 85W for host charging
  • Mini dock is compatible with USB-C laptops, Ultrabooks, Chromebooks, USB4 and Thunderbolt 3/4 laptops from HP, Dell, Lenovo, MacBooks (Intel & M1 Pro/Max processors) and Surface - Works w/ Windows, macOS, iPadOS, Android, Linux & Chrome OS
  • Portable USB Type-C laptop docking station with wraparound cable is designed for transport in a laptop bag, convenient for on-the-go use between office, home office, shared office spaces, and business travel



Overview:

  • 4K Support: Yes
  • Displays Supported: 1
  • Interface: USB 3.2 Gen 2
  • Bus Type: USB-C
  • UASP Support: Yes
  • Full Duplex Support: Yes



Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

Connector(s) External Ports
2 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)
1 - HDMI
1 - RJ-45
1 - USB 3.2 Type-A (9 Pin, Gen 2, 10Gbps, 7.5W Power)
1 - USB Type-C (24 pin) USB Power Delivery Only

Host Connectors: 1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)
Environmental Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Humidity: 0% to 85% (non-condensing)
Hardware 4K Support: Yes
Displays Supported: 1
Interface: USB 3.2 Gen 2
Bus Type: USB-C
Chipset ID: Realtek - RTD2172L
Realtek - RTL8153B
VIA - VL822
VIA - VL103
Performance Maximum Data Transfer Rate: 10Gbps
Type and Rate: USB 3.2 Gen 2 - 10 Gbit/s
UASP Support: Yes
Compatible Networks: 10/100/1000 Mbps
PXE: Yes
Full Duplex Support: Yes
Physical Characteristics Color: Space Gray
Product Length: 4.9 in [12.5 cm]
Product Width: 2.6 in [6.5 cm]
Product Height: 1.0 in [2.5 cm]
Weight of Product: 3.5 oz [98.0 g]
Material: Plastic
Cable Length: 11.8 in [30 cm]
Power Power Source: Bus Powered and Host USB-C Power Adapter
Power Delivery: 100W
Power Consumption (In Watts): 15W
Software OS Compatibility: Windows 10, 11
macOS 10.15, 11.0, 12.0, 13.0
iPadOS
Android
Linux 4.x and up - LTS Versions only
Chrome OS
Special Notes / Requirements System and Cable Requirements: A host device with an available USB-C port (to ensure full adapter functionality, the host device's USB-C port must support USB Power Delivery and DP Alt-mode).
Indicators LED Indicators: 1 - Connection state/activity LEDs under GbE port
