Startech Dell EMC 1G-BX10-U Compatible SFP Transceiver Module - Upstream

Description

Manufacture # StarTech | Model # SFP1GBX10UES

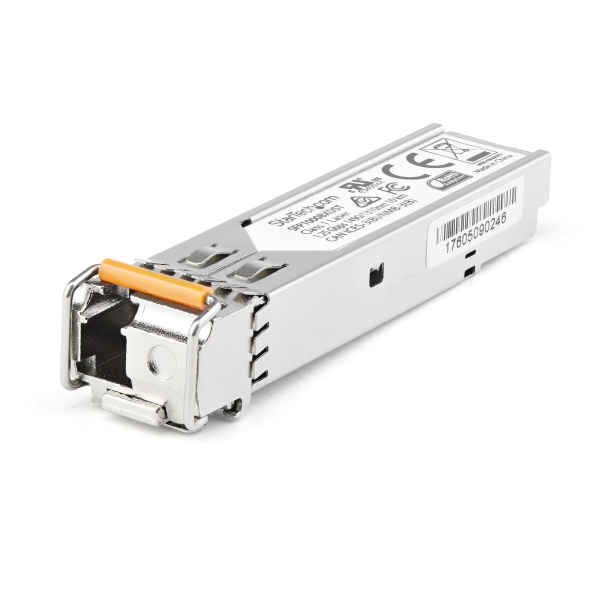

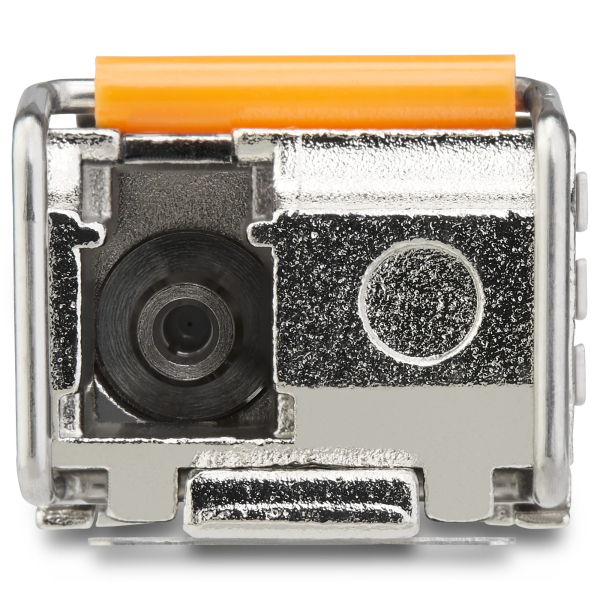

The SFP1GBX10UES is a Dell EMC SFP-1G-BX10-U compatible upstream fiber SFP transceiver which pairs with StarTech.com's SFP1GBX10DES. They are designed, programmed and tested to work with 1000BASE-BX10 compatible Dell EMC switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.

Features:

• 1 Gigabit Ethernet BiDi Fiber Single Strand SFP designed, programmed and tested to work with compatible Dell EMC switches and routers to deliver reliable 1GbE connectivity
• This 1 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
• 1000BASE-BX-U | 1Gbps | 1G Bi-Directional Upstream | Single Mode (SMF) | LC Connector | 1310nmTx/1490nmRx | Digital Diagnostic Monitoring (DDM) | Distances up to 10km (6.2mi)
• Compatible with Dell EMC routers and switches. MSA Compliant with DDM that reports the transceiver's status to most SNMP network management tools

Overview:

• Material: Steel
• MTBF: 3,713,222 hours
• Type: Single Mode
• Compatible Networks: 1000 Mbps (1 Gbps)
• Maximum Data Transfer Rate: 1.0 Gbps
• Max Transfer Distance: 10 km (6.2 mi)
• Wavelength: 1310nmTx/1490nmRx

Manufacturer Warranty: Lifetime Limited Warranty
