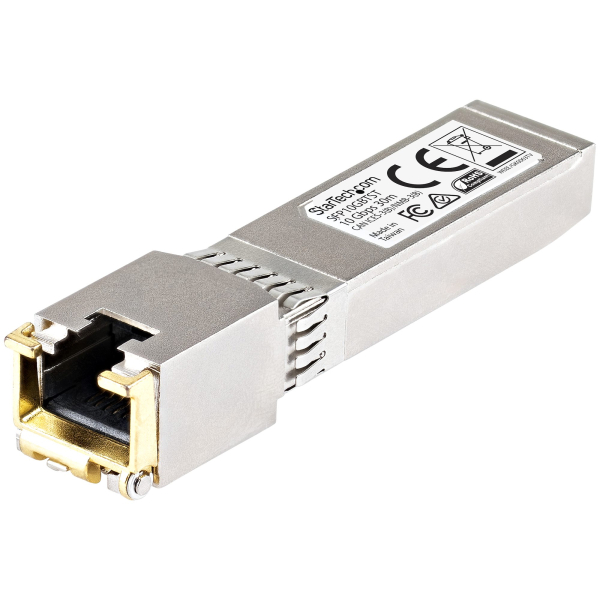

StarTech Cisco SFP-10GB-TC Comp. SFP+ - 10GbE Copper Transceiver 30m

SKU : SFP10GBTCST
Brand : StarTech
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse
Max Distance: 30 m / 100 ft, Material: Zinc Alloy, Local Unit Connectors: 1 - RJ-45, Maximum Data Transfer Rate: 10Gbps, Max Transfer Distance: 30 m (98.4 ft), Type: Copper, Compatible Networks: 10 Gbps, MTBF: 4,598,430 hours, Lifetime Limited Warranty, SFP10GBTCST.
Ask a question about this product
$421.00

Estimated Shipping

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # StarTech | Model # SFP10GBTCST



The SFP10GBTCST is a Cisco compatible copper transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 10 GbE connectivity over copper cable, for 10GBASE-T compliant networks, with a maximum distance of up to 30 m (98.4 ft).



Features:

  • Works with Cisco switches like Firepower, ASR1000, ASR9000, C9300, C3850 and others
  • 10GBASE-T | 10 Gbps | Copper | RJ-45 Connector | Distances up to 30m (98.4ft)
  • Hot-swappable in Cisco routers and switches
  • Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
  • Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance.



Overview:

  • Max Distance: 30 m / 100 ft
  • Material: Zinc Alloy
  • Local Unit Connectors: 1 - RJ-45
  • Maximum Data Transfer Rate: 10Gbps
  • Max Transfer Distance: 30 m (98.4 ft)
  • Type: Copper
  • Compatible Networks: 10 Gbps
  • MTBF: 4,598,430 hours



Manufacturer Warranty: Lifetime Limited Warranty

Technical Specifications

Package Quantity 1
Ports 1
Max Distance 30 m / 100 ft
Auto MDIX Yes
Full Duplex Support Yes
Color Silver
Material Zinc Alloy
System and Cable Requirements MSA or Cisco compliant SFP port
Connector(s) :-
Local Unit Connectors 1 - RJ-45
Environmental :-
Operating Temperature 0°C to 70°C
Storage Temperature -40°C to 90°C
Humidity 0.95
Hardware :-
Compatible Brand Cisco
Industry Standards IEEE 802.3an 10GBASE-T
Performance :-
Maximum Data Transfer Rate 10Gbps
Max Transfer Distance 30 m (98.4 ft)
Type Copper
DDM No
Compatible Networks 10 Gbps
MTBF 4,598,430 hours
Power Consumption (In Watts) 2.3 W (max.)
Physical Characteristics :-
Product Length 2.7 in [69.8 mm]
Product Width 0.5 in [1.3 cm]
Product Height 0.5 in [1.4 cm]
Weight of Product 2.0 oz [58.0 g]
Power :-
Output Voltage 3.3V DC
Special Notes / Requirements :-
Note For use in Gigabit fiber networking equipment and media converters
What's in the Box :-
Included in Package 1 - SFP transceiver
