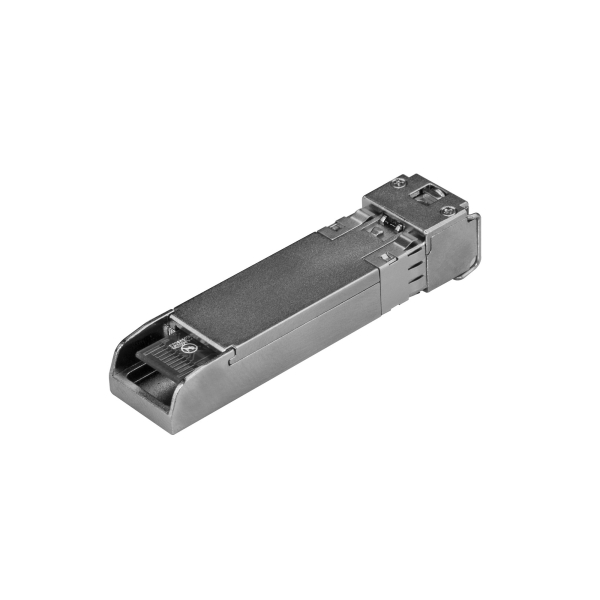

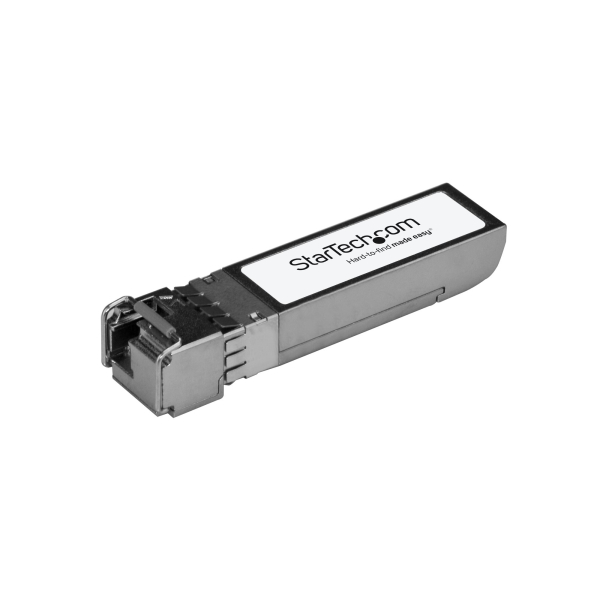

StarTech Cisco SFP-10G-BX-U-20 Compatible - 10GbE BiDi SMF SFP+ Module

Description

Manufacture # StarTech | Model # SFP-10G-BX-U-20-ST

The SFP-10GB-BX-U-20-ST is a MSA Compliant upstream fiber SFP transceiver which pairs with StarTech.com's SFP-10GB-BX-D-20-ST. They are designed, programmed and tested to work with 10GBASE-BX compatible MSA switches and routers. The SFP+ transceiver module supports a maximum distance of up to 20 km (12.4 mi) and delivers dependable 10 GbE connectivity over fiber cabling.

Features:

• Msa Uncoded Sfp+ Transceiver: 10 Gigabit Ethernet BiDi Fiber Single Strand SFP+ designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver reliable 10GbE connectivity
• Increase Bandwidth On Existing Infrastructure: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two.
• Technical Specs: 10GBASE-BX | 10Gbps | 10G Bi-Directional Upstream | Single Mode (SMF) | LC Connector | 1270nmTx/1330nmRx | Digital Diagnostic Monitoring (DDM) | Distances up to 20km (12.4mi).
• Works With Msa Compliant Switches: Works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules

Overview:

• Material: Steel
• Maximum Data Transfer Rate: 10.00 Gbps
• DDM: Yes
• Max Transfer Distance: 20 km (12.4 mi)
• MTBF: 646,156,559 hours
• Wavelength: 1270nmTx/1330nmRx
• Type: Single Mode
• Compatible Networks: 10 Gbps
• Fiber Operating Mode: Full-Duplex

Manufacturer Warranty: Lifetime Limited Warranty
