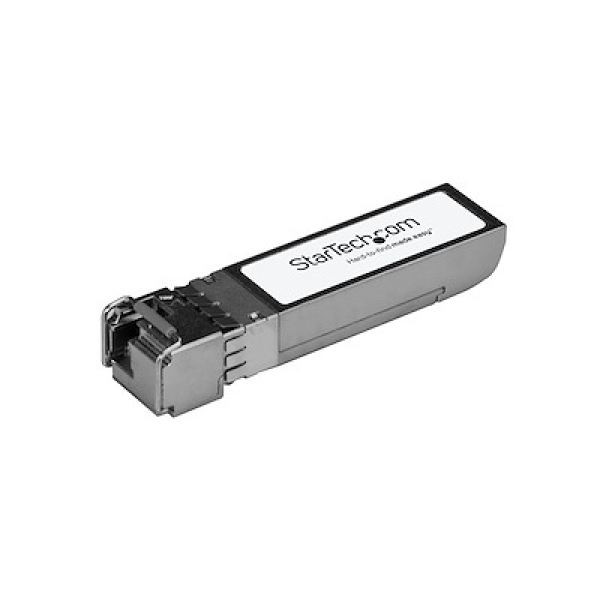

Startech Cisco SFP-10G-BX-D-60 SFP+ Transceiver Module - Downstream

Description

Manufacture # Startech | Model # SFP-10G-BX-D-60-ST

The SFP-10G-BX-D-60-ST is a Cisco SFP-10G-BX-D-60 compatible downstream fiber SFP+ transceiver which pairs with StarTech.com's SFP-10G-BX-U-60-ST. They are designed, programmed and tested to work with 10GBASE-BX compatible Cisco switches and routers. The SFP+ transceiver module supports a maximum distance of up to 60 km (37.3 mi) and delivers dependable 10 GbE connectivity over fiber cabling.

Features:

• 100% Cisco SFP-10G-BX-D-60 Compatible: 10 Gigabit Ethernet BiDi Fiber Single Strand SFP+ works with Cisco switches like ASR9000, ASR1000, NCS5500, C3850, NCS540 and others
• Increase Bandwidth On Existing Infrastructure: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
• Technical Specs: 10GBASE-BX | 10Gbps | 10G Bi-Directional Downstream | Single Mode (SMF) | LC Connector | 1330nmTx/1270nmRx | Digital Diagnostic Monitoring (DDM) | Distances up to 60km (37.3mi)
• Programmed & Tested For Compatibility: Compatible with OEM routers and switches. MSA Compliant with DDM that reports the transceiver's status to most SNMP network management tools


Overview:

• Industry Standards: IEEE 802.3ae 10GBASE-BX
• Power Consumption (In Watts): < 1W
• Maximum Data Transfer Rate: 10.00 Gbps
• MTBF: 646,156,559 hours
• Max Transfer Distance: 60 km (37.3 mi)

Manufacturer Warranty: Lifetime Limited Warranty
