StarTech Cisco SFP-10G-BX-D-40 Compatible - 10GbE BiDi SMF SFP+ Module

Description

Manufacture # StarTech | Model # SFP-10G-BX-D-40-ST

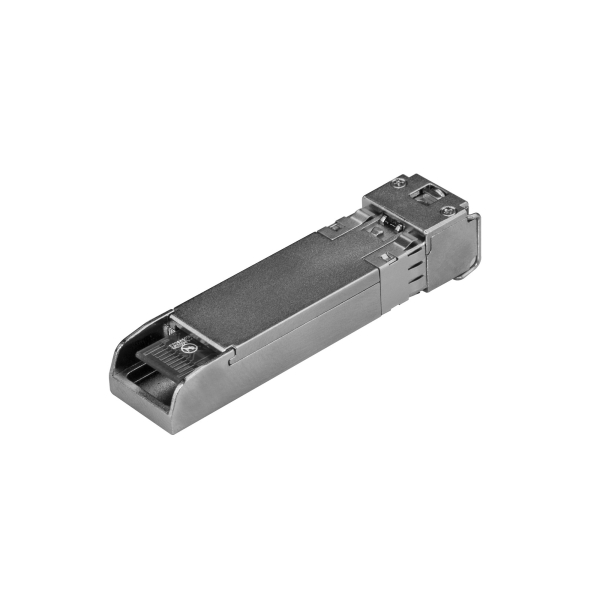

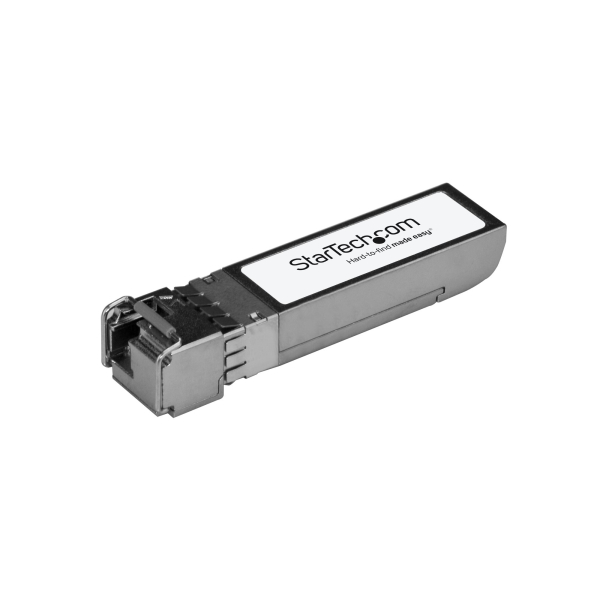

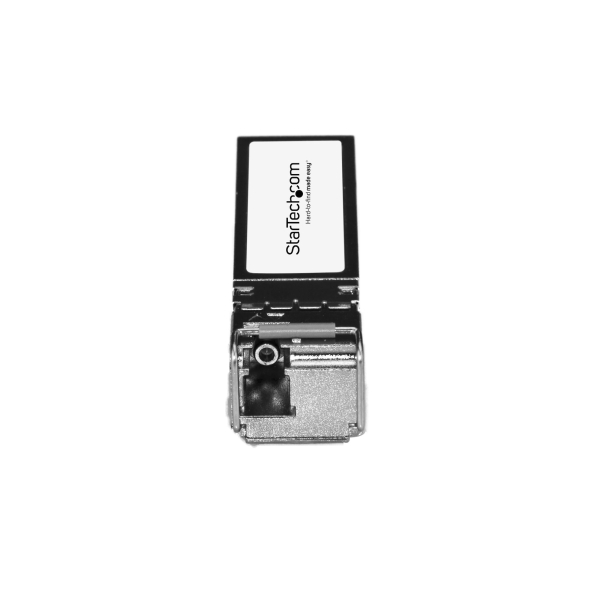

The SFP-10G-BX-D-40-ST is a Cisco SFP-10G-BX-D-40 compatible downstream fiber SFP transceiver which pairs with StarTech.com's SFP-10G-BX-U-40-ST. They are designed, programmed and tested to work with 10GBASE-BX compatible Cisco switches and routers. The SFP+ transceiver module supports a maximum distance of up to 40 km (24.8 mi) and delivers dependable 10 GbE connectivity over fiber cabling.

Features:

• 100% CISCO SFP-10G-BX-D-40 Compatible: 10 Gigabit Ethernet BiDi Fiber Single Strand SFP+ works with Cisco switches like ASR9000, ASR1000, NCS5500, C3850, NCS540 and others
• Increase Bandwidth On Existing Infrastructure: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
• Technical Specs: 10GBASE-BX | 10Gbps | 10G Bi-Directional Downstream | Single Mode (SMF) | LC Connector | 1330nmTx/1270nmRx | Digital Diagnostic Monitoring (DDM) | Distances up to 40km (24.8mi)
• Programmed & Tested For Compatibility: Compatible with OEM routers and switches. MSA Compliant with DDM that reports the transceiver's status to most SNMP network management tools

Overview:

• Material: Steel
• Wavelength: 1330nmTx/1270nmRx
• Maximum Data Transfer Rate: 10.31 Gbps
• Max Transfer Distance: 40 km (24.8 mi)
• MTBF: 646,156,559 hours
• DDM: Yes
• Type: Single Mode
• Compatible Networks: 10 Gbps
• Fiber Operating Mode: Full-Duplex

Manufacturer Warranty: Lifetime Limited Warranty
