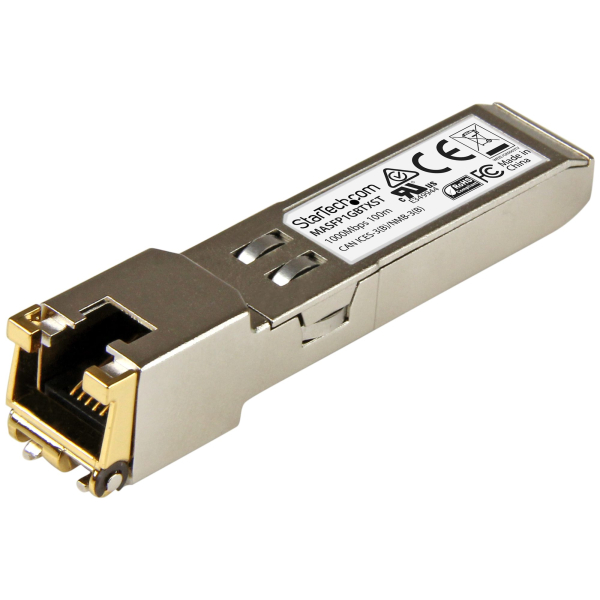

StarTech Cisco Meraki MA-SFP-1GB-TX Comp. SFP - 1GbE Copper Transceiver 100m

Sku: MASFP1GBTXST

Availability: Out of Stock

Brand: StarTech

Category: Network Accessories

$82.50 $110.00 25% OFF

Material: Aluminum, Maximum Data Transfer Rate: 1000 Mbps, Max Transfer Distance: 100 m (328 ft), Type: Copper, Fiber Operating Mode: Full-Duplex, Compatible Networks: 10/100/1000 Mbps, MTBF: 4,655,371 hours, Lifetime Limited Warranty, MASFP1GBTXST.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture # StarTech | Model # MASFP1GBTXST



The MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible copper transceiver module that has been designed, programmed and tested to work with Cisco Meraki brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over copper cable, for 10BASE-T, 1000BASE-T and 100BASE-TX compliant networks, with a maximum distance of up to 100 m (328 ft).



Features:

  • Works with Cisco Meraki switches like MS225, MX400, MS250, MS350, MX84 and others
  • 10BASE-T | 1 Gbps | Copper | RJ-45 Connector | Distances up to 100m (328ft)
  • Hot-swappable in Cisco routers and switches
  • Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules



Overview:

  • Material: Aluminum
  • Maximum Data Transfer Rate: 1000 Mbps
  • Max Transfer Distance: 100 m (328 ft)
  • Type: Copper
  • Fiber Operating Mode: Full-Duplex
  • Compatible Networks: 10/100/1000 Mbps
  • MTBF: 4,655,371 hours



Manufacturer Warranty: Lifetime Limited Warranty

Input Voltage 3.3V DC
Auto MDIX Yes
Color Silver
Material Aluminum
System and Cable Requirements MSA or Cisco Meraki compliant SFP port
For use in 1 Gigabit networking equipment and media converters
Connector(s) :-
Local Unit Connectors 1 - RJ-45
1 - RJ-45
Environmental :-
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5~95% RH
Hardware :-
Industry Standards IEEE 802.3i 10BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3u 100BASE-TX
Compatible Brand Cisco Meraki
Performance :-
Maximum Data Transfer Rate 1000 Mbps
Max Transfer Distance 100 m (328 ft)
Type Copper
Fiber Operating Mode Full-Duplex
DDM No
Compatible Networks 10/100/1000 Mbps
MTBF 4,655,371 hours
Power Consumption (In Watts) < 1.3 W
Physical Characteristics :-
Weight of Product 0.7 oz [21.0 g]
Product Length 2.7 in [68.0 mm]
Product Width 0.7 in [1.8 cm]
Product Height 0.5 in [1.4 cm]
Power :-
Output Voltage 3.3V DC
3.3V DC
What's in the Box :-
Included in Package 1 - SFP transceiver
